194
Upgrade and Mai
ntenance Manual
TX100
S3
Exp
ansion cards and backup un
it
s
Network adapter D2745

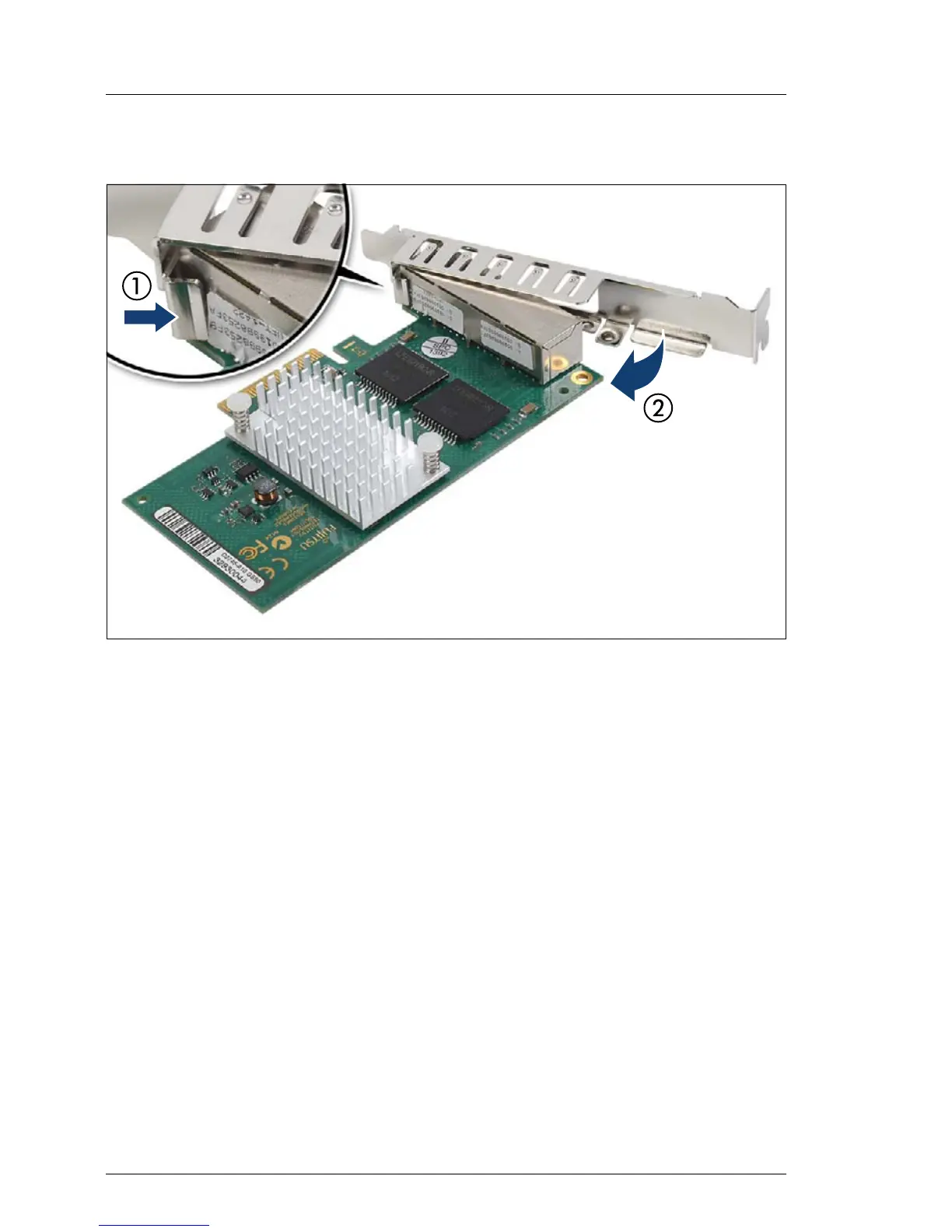

Figure 1
13: Network adapter
D2745 - M
ounting the slot brac
ket (A)
Ê
Hinge the slot bracket to the plug shell as shown (1).
Ê
Fold the slot bracket towards the controller until the threaded mounting t
ab
is aligned with the screw hole on the controller (2).
193
195
