Fujitsu PRIMERGY TX100 S3 Maintenance Manual

TX100 S3 Upgrade and Maintenance Manual 311
System board and components

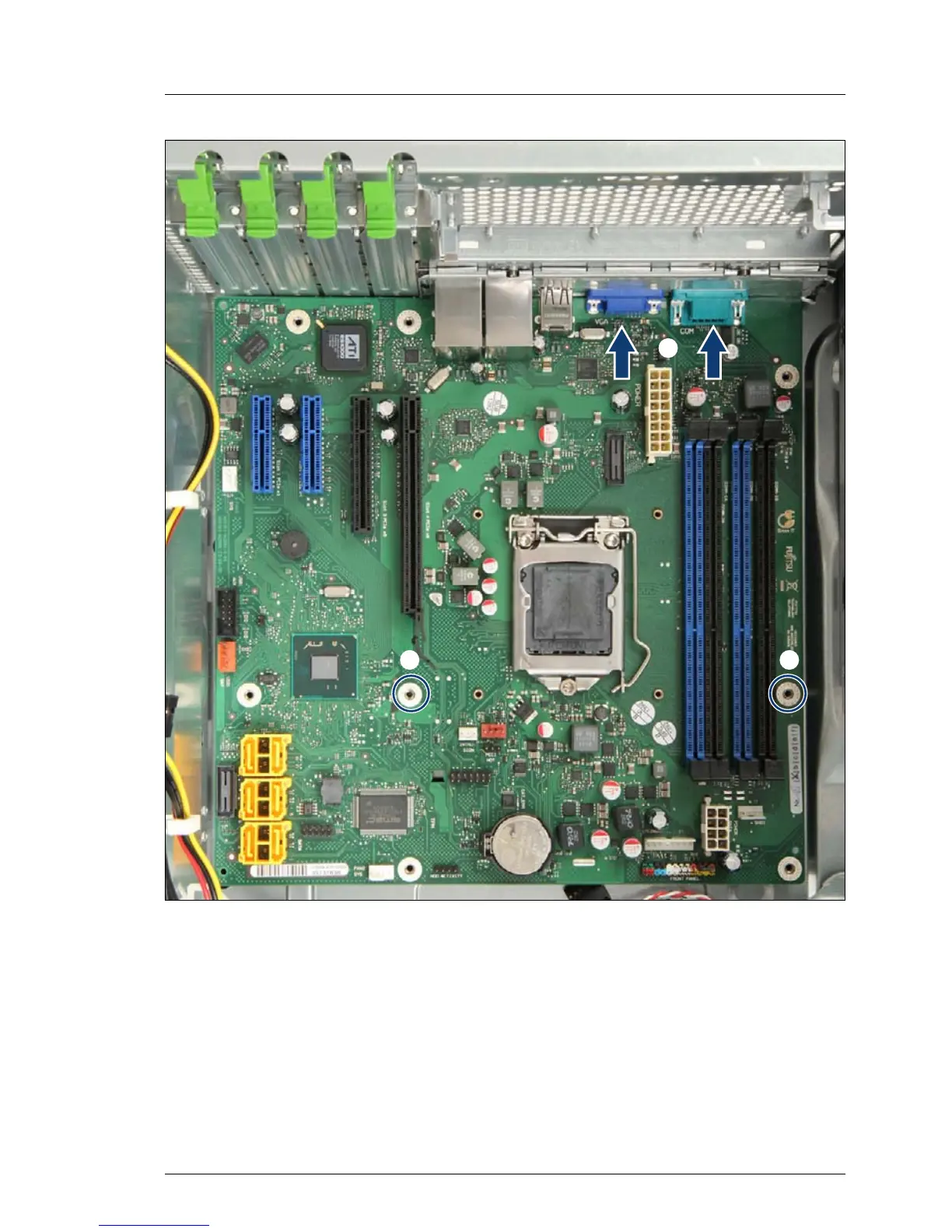

Figure 213: Installing the system board (B)
Ê Carefully shift the system board towards the server rear until the plug shells
engage with the cut-outs in the connector panel (1).
Ê Lower the system board onto the centering bolts (2).
Ensure that the system board is properly seated on both centering bolts.
/
