312
Upgrade and Mai
ntenance Manual
TX100
S3
System board and compo
nent
s

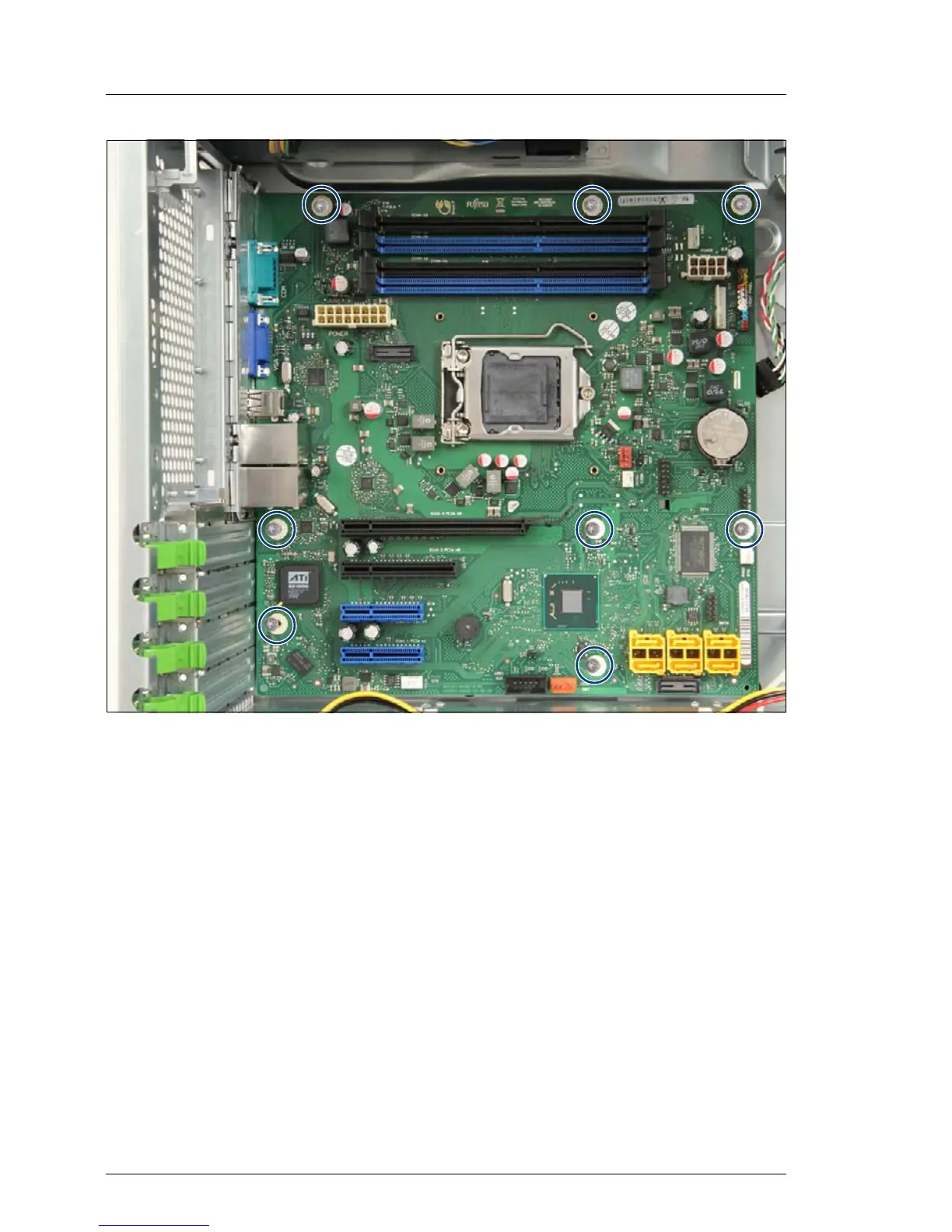

Figure 214: Securing the system board
Ê
Secure the system board with eight screws (M3 x 4.5 mm, C26192-Y10-
C67) (see circles
).
I
Screw torque: 0.6 Nm (not applicable for the Japanese market)
T
ighten the screws in a cross diagonal pattern.
311
