Fujitsu PRIMERGY TX100 S3

324 Upgrade and Maintenance Manual TX100 S3
Cabling
SATA cabling and Front USB cable

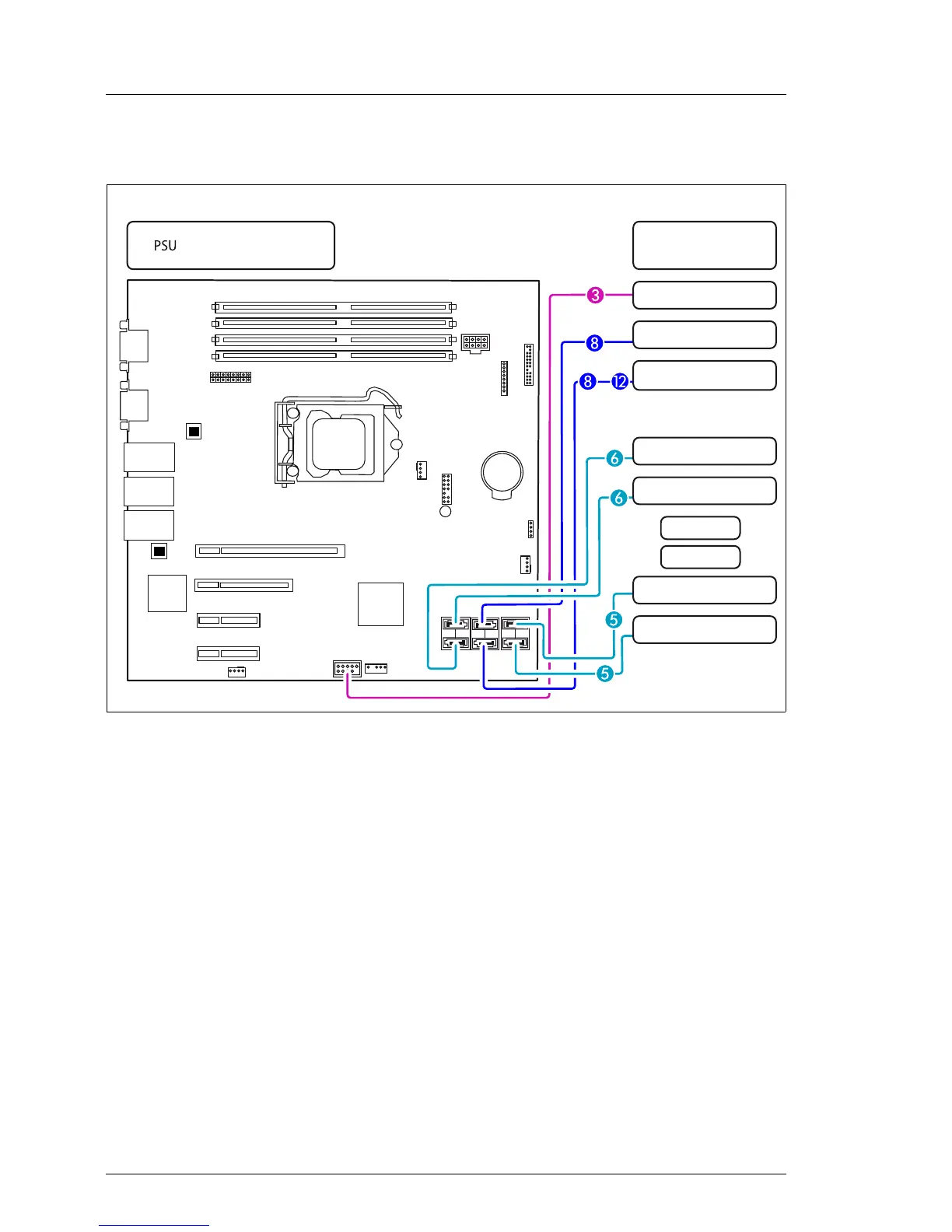

Figure 222: SATA cabling (4 HDDs) and Front USB cable
PWR
FAN1 SYS
USB
DAT
HDD ACTIVITY
Front panel
SATA
PWR
PC2009
TPM
SATA6
SATA5
USB FRONT
FAN
CPU
FAN2 SYS
SATA2
SATA1
SATA4
SATA3
iBBU
Front panel
On/off + HDD access
Front USB
Optical drive (bottom)
HDD 2
HDD 1
Optical drive (top)
HDD 3
HDD 4
or
FBU
