TX100 S3 Upgrade and Maintenance Manual 325
Cabling
SAS RAID controller cabling

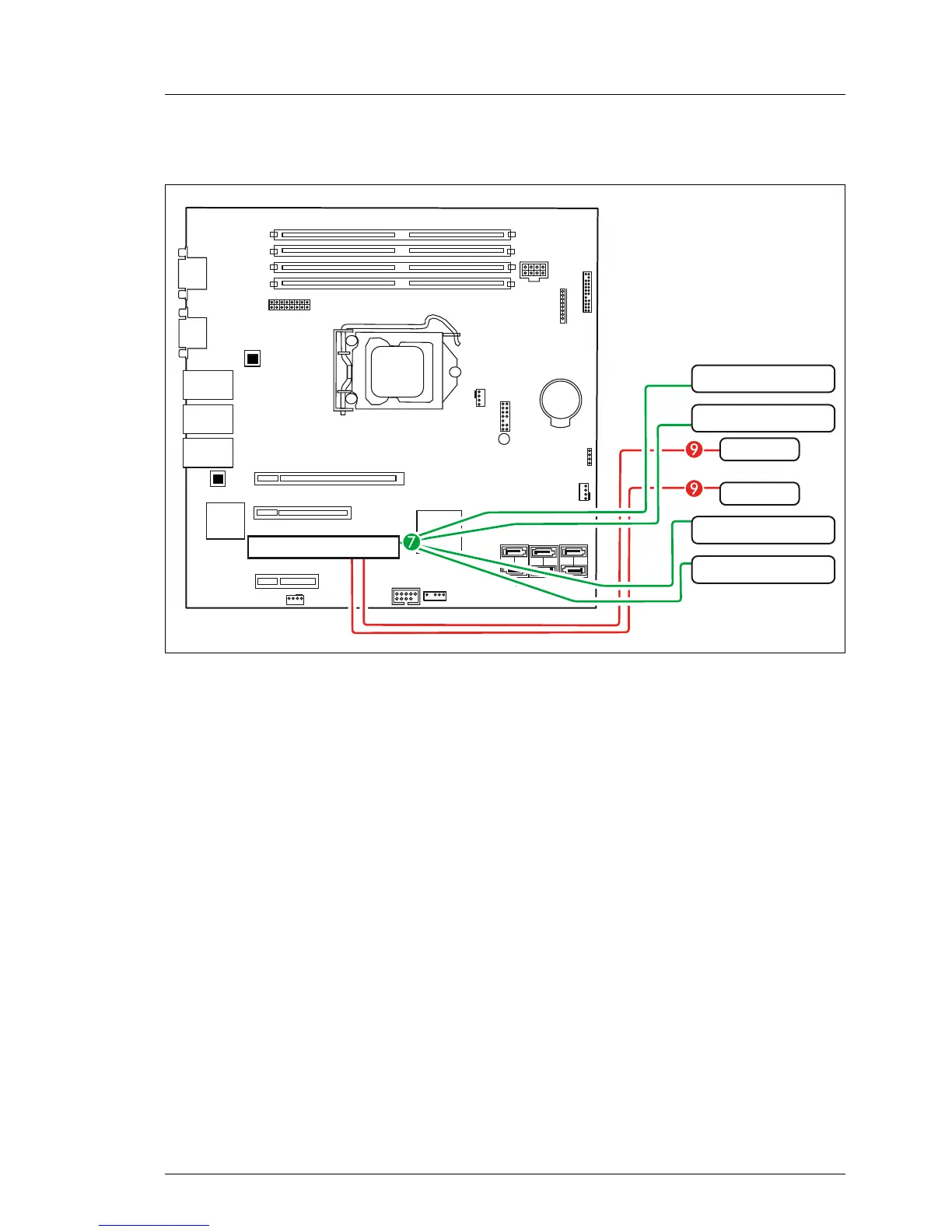

Figure 223: SAS RAID controller cabling (4 HDDs, iBBU)
PWR
FAN1 SYS
USB
DAT
HDD
ACTIVITY
Front panel
SATA
PWR
PC2009
TPM
SATA6
SATA5
USB FRONT
FAN
CPU
either iBBU or FBU installed
FAN2
SYS
SATA2
SATA1
SATA4
SATA3
iBBU
SAS RAID controller
HDD 1
HDD 2
HDD 3
HDD 4
FBU
