TX100 S3 Upgrade and Maintenance Manual 333
Cabling

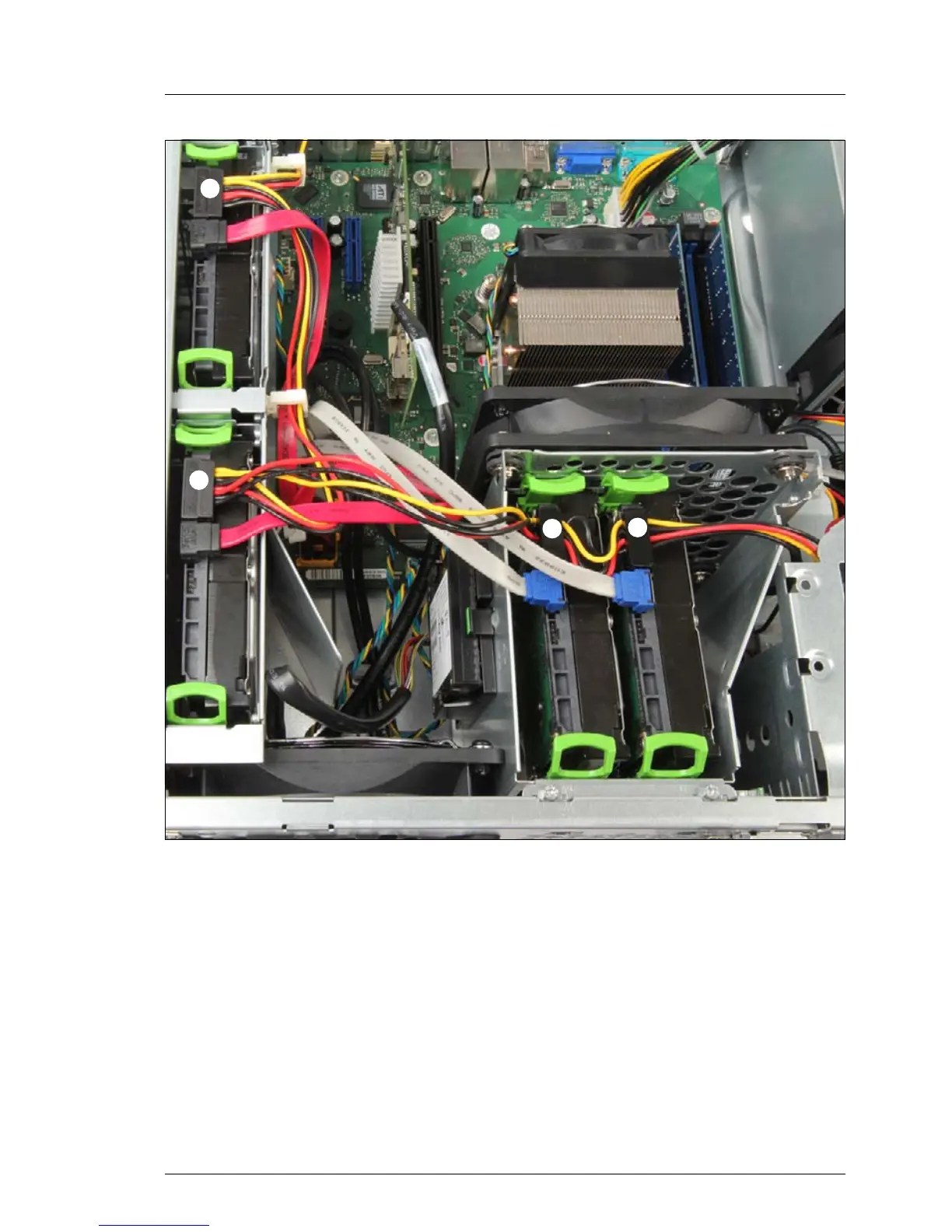

Figure 231: Disconnecting/reconnecting power cables on the HDDs
Ê Disconnect the SATA power cable from the HDDs (see figure 227 on
page 329).
I P4 is used for HDD 1, P5 is used for HDD 2,
P3 is used for HDD 3, P2 is used for HDD 4
Ê Connect the new SATA power cable to the HDDs (see figure 227 on
page 329).
I P4 is used for HDD 1, P5 is used for HDD 2,
P3 is used for HDD 3, P2 is used for HDD 4
/
0
1
2
