Fujitsu PRIMERGY TX100 S3 Maintenance Manual

332 Upgrade and Maintenance Manual TX100 S3
Cabling

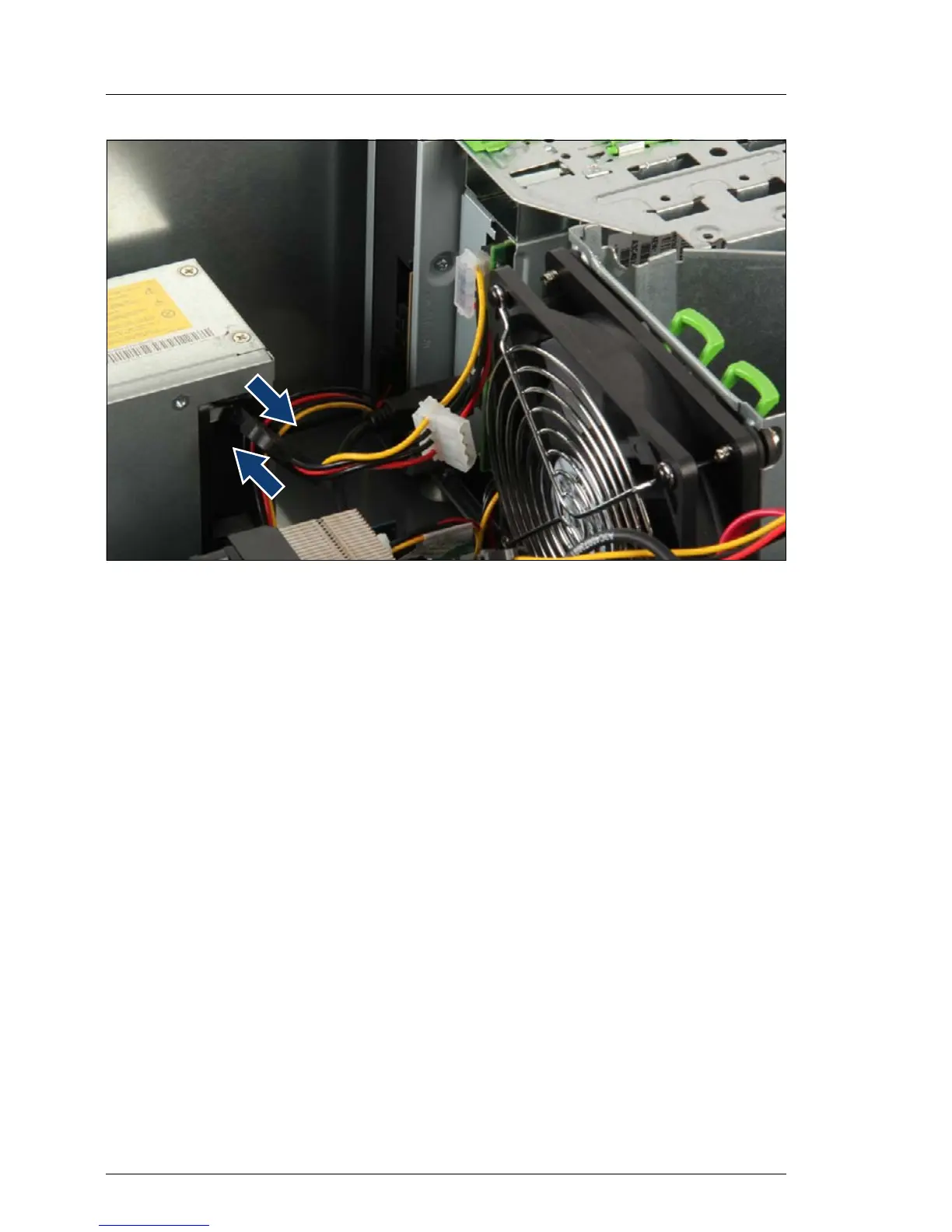

Figure 230: Disconnecting/connecting the power cable on the backup drive
Ê Disconnect the defective power cable connector P7 from the power adapter
cable. See figure 227 on page 329.
I It is not necessary to remove the power adapter cable from the
backup drive.
Ê Connect the new power cable connector P7 to the power adapter cable. See
figure 227 on page 329.
