Chapter 2 Getting Started
DMC-4040 Layout
The following layouts assume either an ICM-42000(I000) or ICM-42100(I100) interconnect modules are installed.
For layouts of systems with ICM-42200’s(I200) installed please contact Galil. Overall dimensions and footprint are
identical, the only differences are in connector type and location.

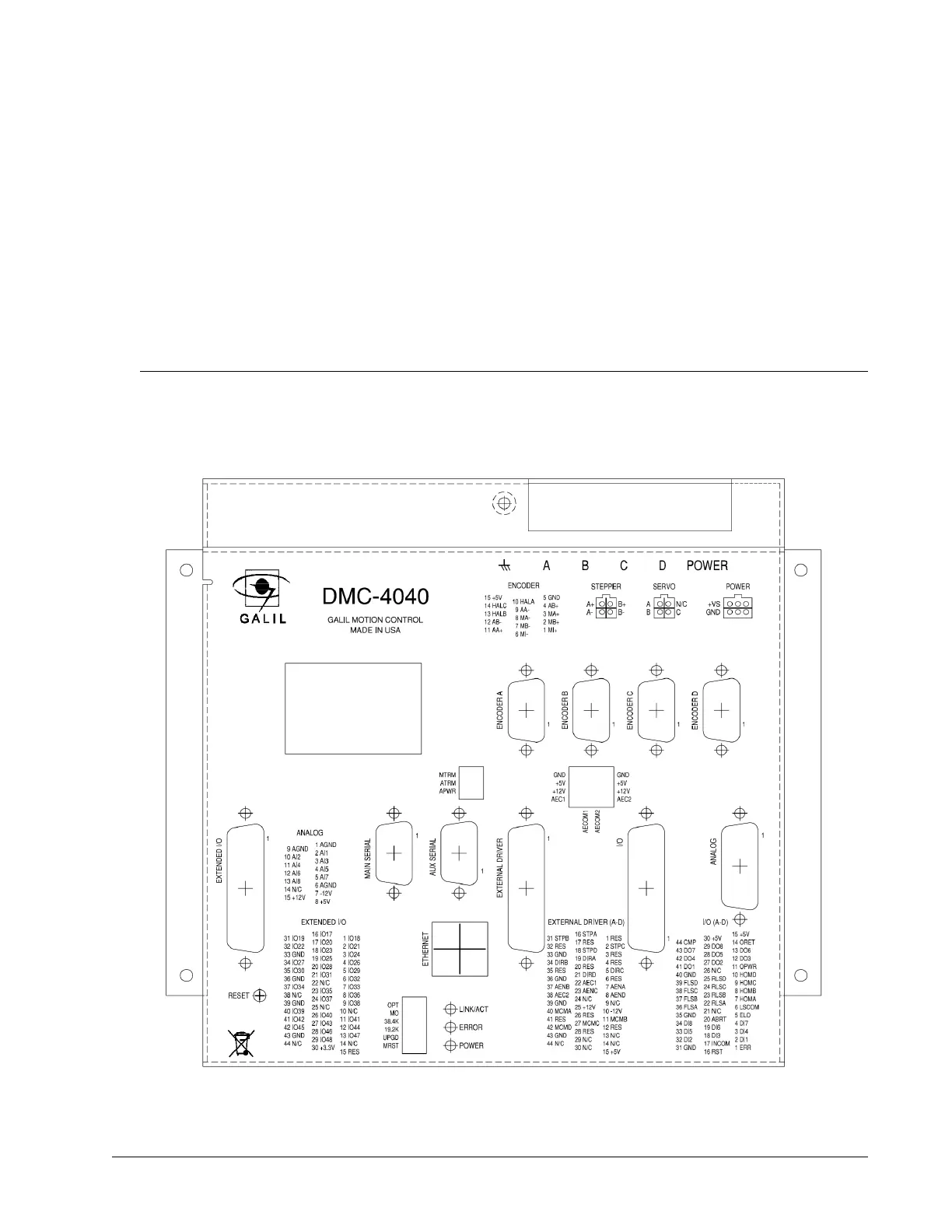

Figure 2-1 - Outline of the of the DMC-4040
