A2 – AMP-43140 (-D3140)
Description
The AMP-43140 resides inside the DMC-40x0 enclosure and contains four linear drives for operating small, brush-
type servo motors. The AMP-43140 requires a ± 12-30 VDC input. Output power is 20 W per amplifier or 60 W
total. The gain of each transconductance linear amplifier is 0.1 A/V at 1 A maximum current. The typical current
loop bandwidth is 4 kHz.
The AMP-43140 can be ordered to have a 100mA maximum current output where the gain of the amplifier is 10mA/
V. Order as ‘-D3140(100mA)’.

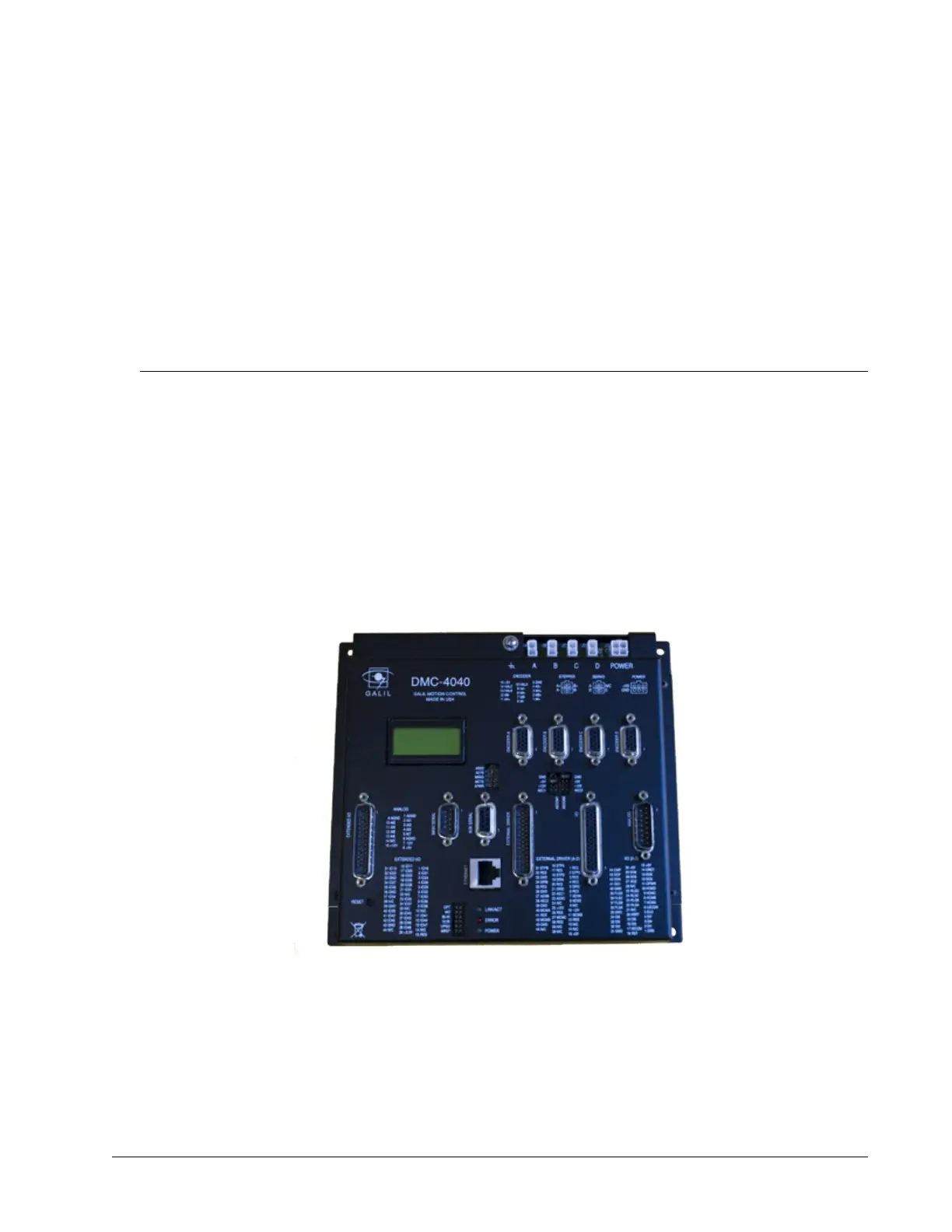

Figure A2-1 – DMC-4040-C012-I000-D3140 (DMC-4040 with AMP-43140)
DMC-40x0 User Manual A2 – AMP-43140 (-D3140) • 242
