DMC-40x0 Power Connections

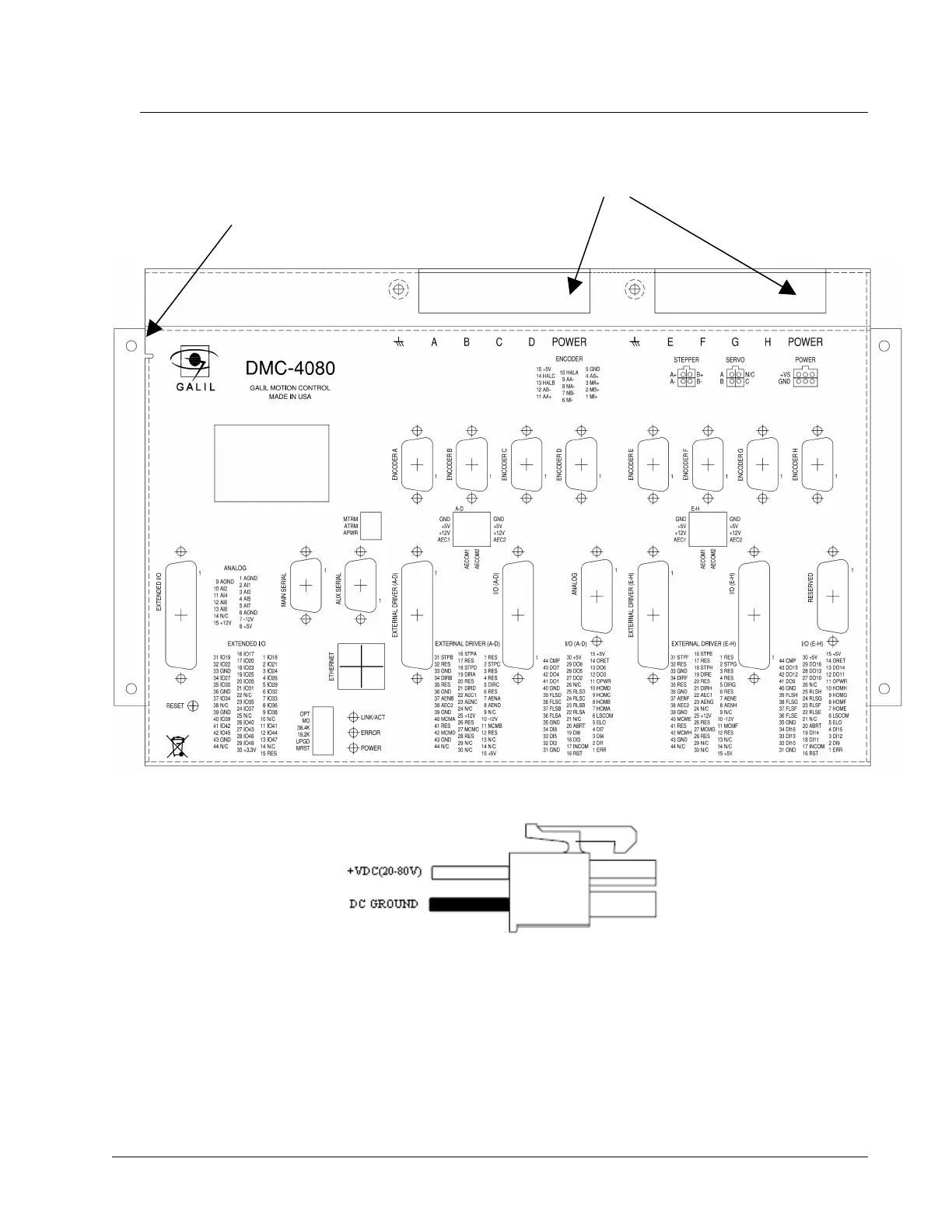

Figure 2-3 – Connector locations for the DMC-40x0
Figure 2-4 – Power Connector used when controller is ordered without Galil Amplifiers
*See Power connector information for specific amplifiers in the Integrated section of the Appendices.
For more information on Connectors (mfg PN’s and diagrams) see the Power Connector Section in the Appendix.
Chapter 2 Getting Started • 9 DMC-40x0 User Manual
Power Connectors for Galil integrated Amplifiers*
Power Connector for Controller without
Galil Amplifiers or when ISCNTL
option is orderd*
Power Connector for Controller without
Galil Amplifiers or when ISCNTL
option is ordered
