Command Summary – PVT
COMMAND DESCRIPTION
PVa = p,v,t Specifies the segment of axis 'a' for a incremental PVT segment of 'p' counts, an end speed of
'v' counts/sec in a total time of 't' samples.
_PVa Contains the number of PV segments available in the PV buffer for a specified axes.
BT Begin PVT mode
_BTa Contaings the number PV segments that have executed
PVT Examples
Parabolic Velocity Profile
In this example we will assume that the user wants to start from zero velocity, accelerate to a maximum velocity of
1000 counts/second in 1 second and then back down to 0 counts/second within an additional second. The velocity
profile would be described by the following equation and shown in Figure 6.14.
To accomplish this we need to calculate the desired velocities and change in positions. In this example we will
assume a delta time of ¼ of a second, which is 256 samples (1024 samples = 1 second with the default TM of 1000).
Velocity(counts/second) Position(counts)
1000)1(1000)(
2
+−−= ttv
dtttp )1000)1(1000()(
2
+−−=
∫
DMC-40x0 User Manual Chapter 6 Programming Motion • 106
1000)1(1000)(
2
+−−= ttv

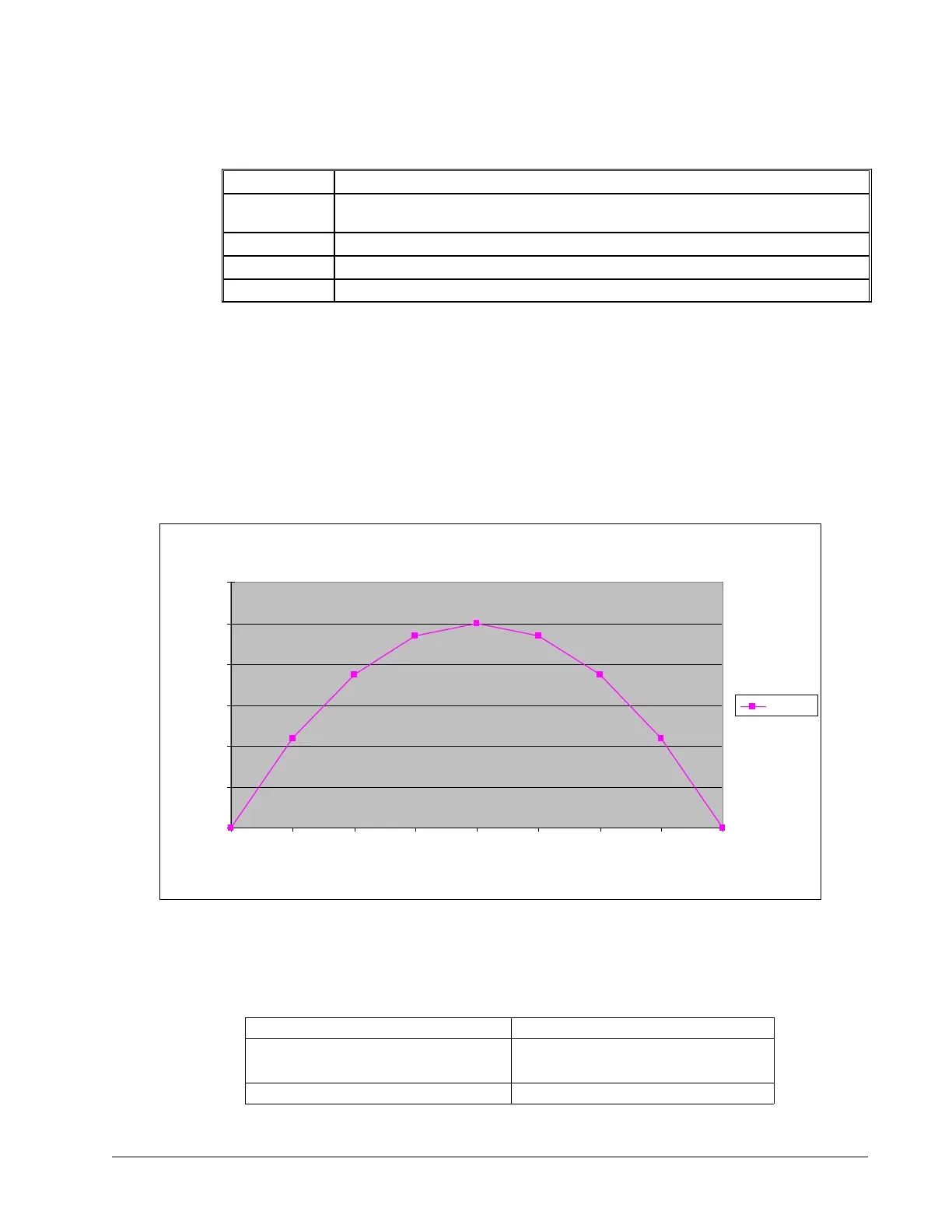

Figure 6.14: Parabolic Velocity Profile
Desired Velocity Profile
0
200
400
600
800
1000
1200
0
0.25
0.5
0.75
1
1.25
1.5
1.75
2
Time(Seconds)
Velocity(counts/second)
Velocity
