A3 – SDM-44040 (-D4040)
Description
The SDM-44040 resides inside the DMC-40x0 enclosure and contains four drives for operating two-phase bipolar
step motors. The SDM-44040 requires a single 12-30 VDC input. The unit is user-configurable for 1.4 A, 1.0 A,
0.75 A, or 0.5 A per phase and for full-step, half-step, 1/4 step or 1/16 step.

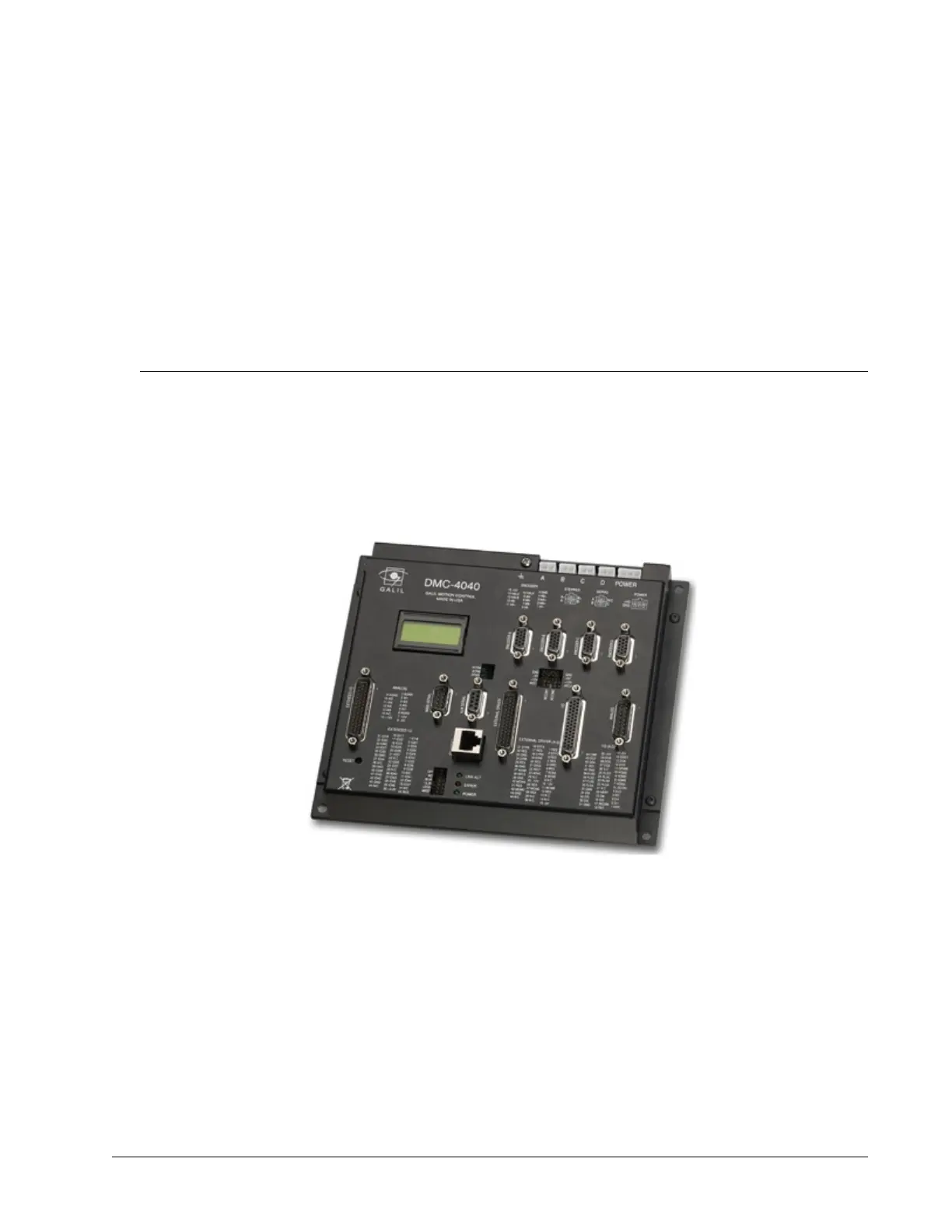

Figure A3-1 – DMC-4040-C012-I000-D4040 (DMC-4040 with SDM-44040)
A3 – SDM-44040 (-D4040) • 245 DMC-40x0 User Manual
