Galil DMC-4040 - Electrical Specifications; Mating Connectors

Electrical Specifications
DC Supply Voltage: 12-30 VDC
Max Current (per axis) 1.4 Amps/Phase Amps (Selectable with AG command)
Maximum Step Frequency: 6 MHz
Motor Type: Bipolar 2 Phase

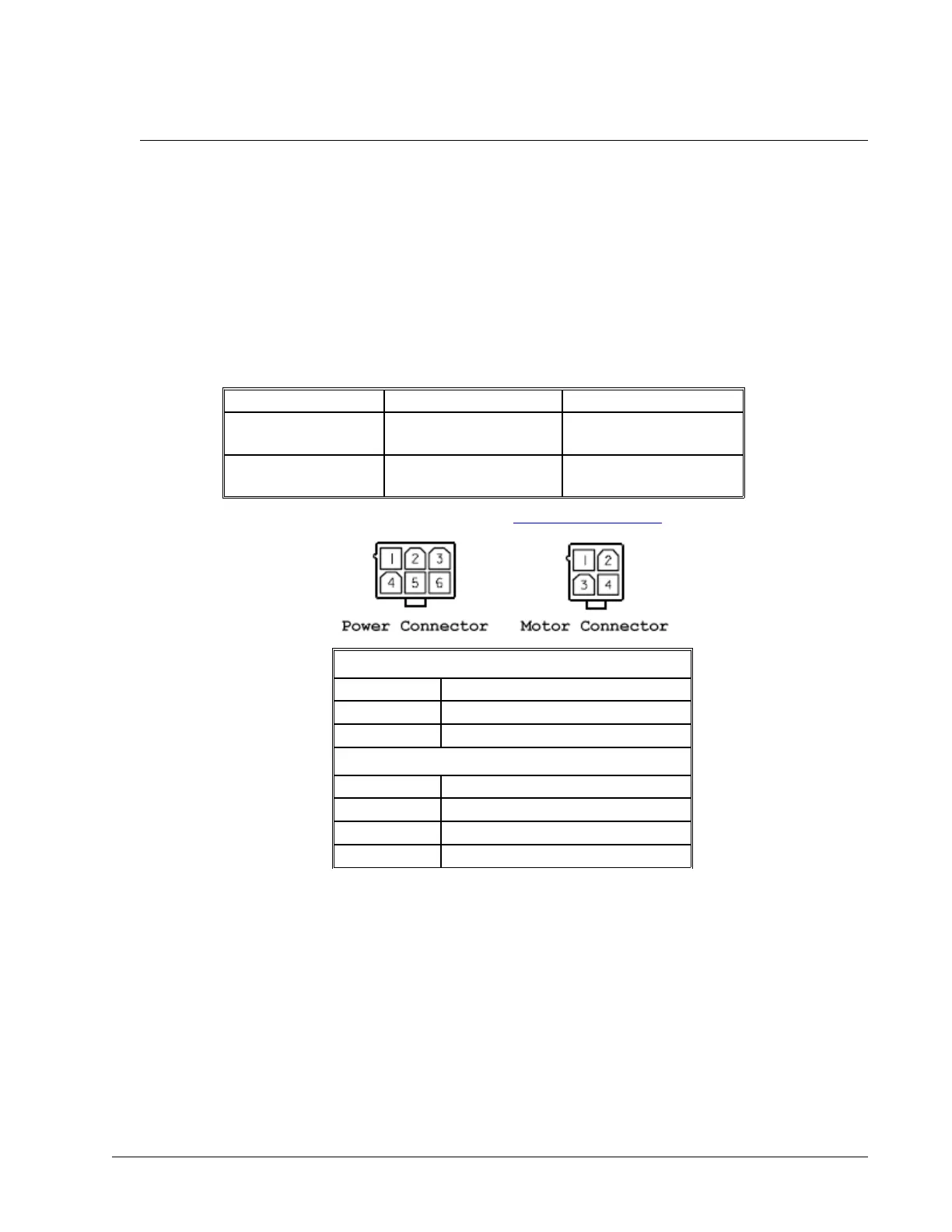

Mating Connectors
On Board Connector Terminal Pins
POWER 6-pin MATE-N-LOK
MOLEX# 39-31-0060 MOLEX#44476-3112
A,B,C,D: 4-pin Motor
Power Connectors
4-pin MATE-N-LOK
MOLEX# 39-31-0040 MOLEX#44476-3112
For mating connectors see http://www.molex.com/
Power Connector
Pin Number Connection
1,2,3 DC Power Supply Ground
4,5,6 +VS (DC Power)
Motor Connector
1 B-
2 A-
3 B+
4 A+
DMC-40x0 User Manual A3 – SDM-44040 (-D4040) • 246
