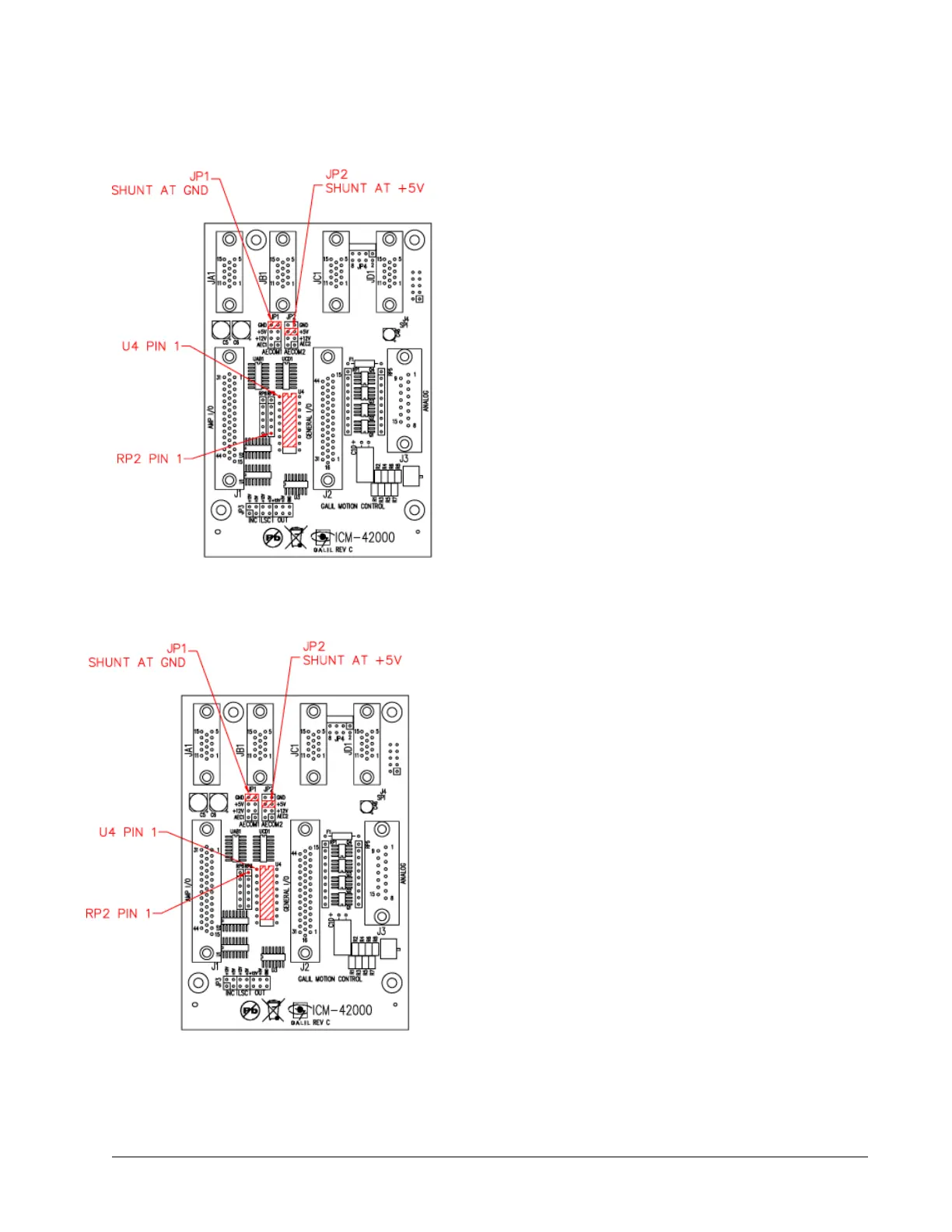

+5V High Amp Enable Sourcing Configuration
+5V Low Amp Enable Sourcing Configuration
DMC-40x0 User Manual Appendices • 216
From Default Configuration:
1. Move U4 up one pin location on socket
2. Reverse RP2
3. Change JP1 to GND
4. Change JP2 to +5V
From Default Configuration:
1. Move U4 up one pin location on socket
2. Change JP1 to GND
3. Change JP2 to +5V
