+12V High Amp Enable Sourcing Configuration
+12V Low Amp Enable Sourcing Configuration
DMC-40x0 User Manual Appendices • 218

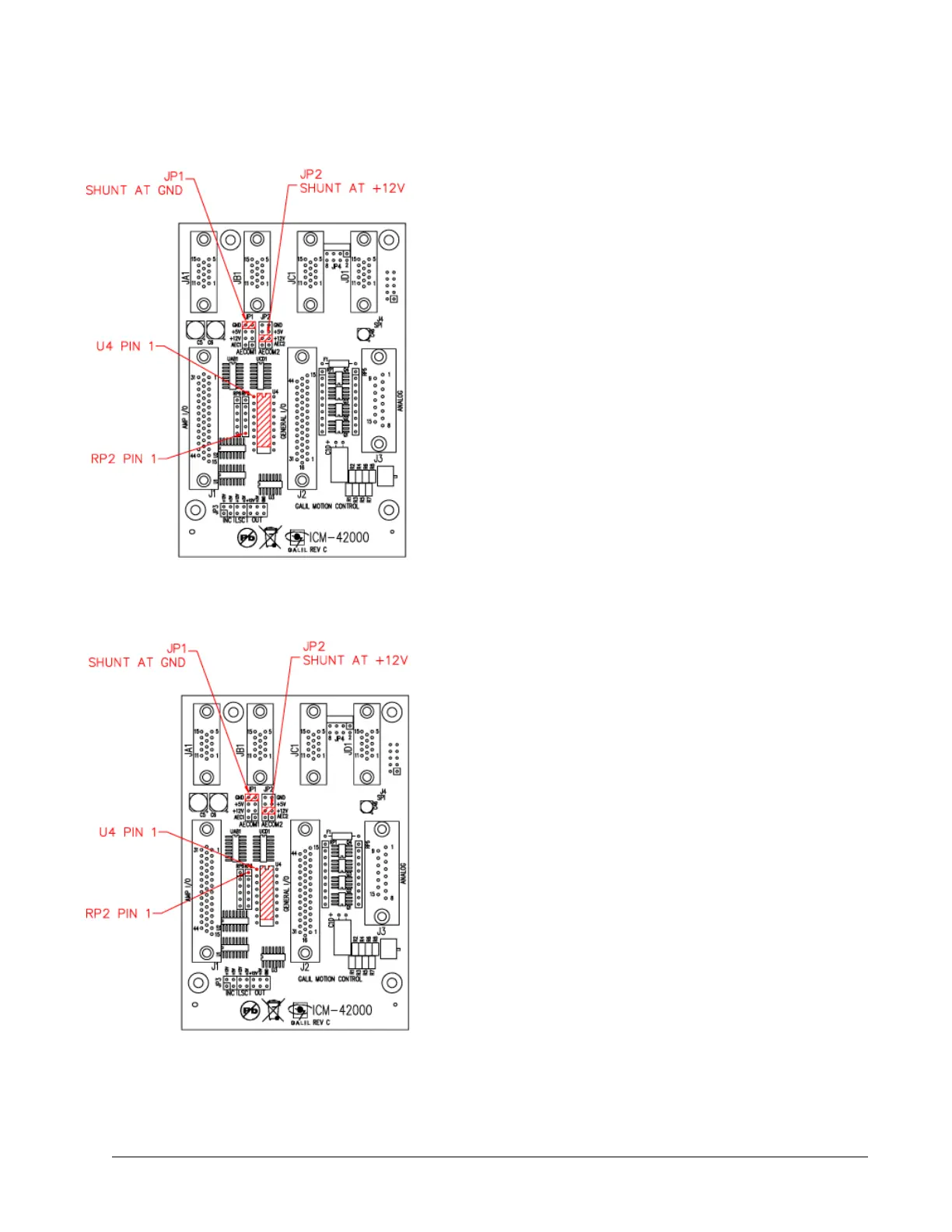

From Default Configuration:
1. Move U4 up one pin location on socket
2. Reverse RP2
3. Change JP1 to GND
4. Change JP2 to +12V
From Default Configuration:
1. Move U4 up one pin location on socket
2. Change JP1 to GND
3. Change JP2 to +12V
