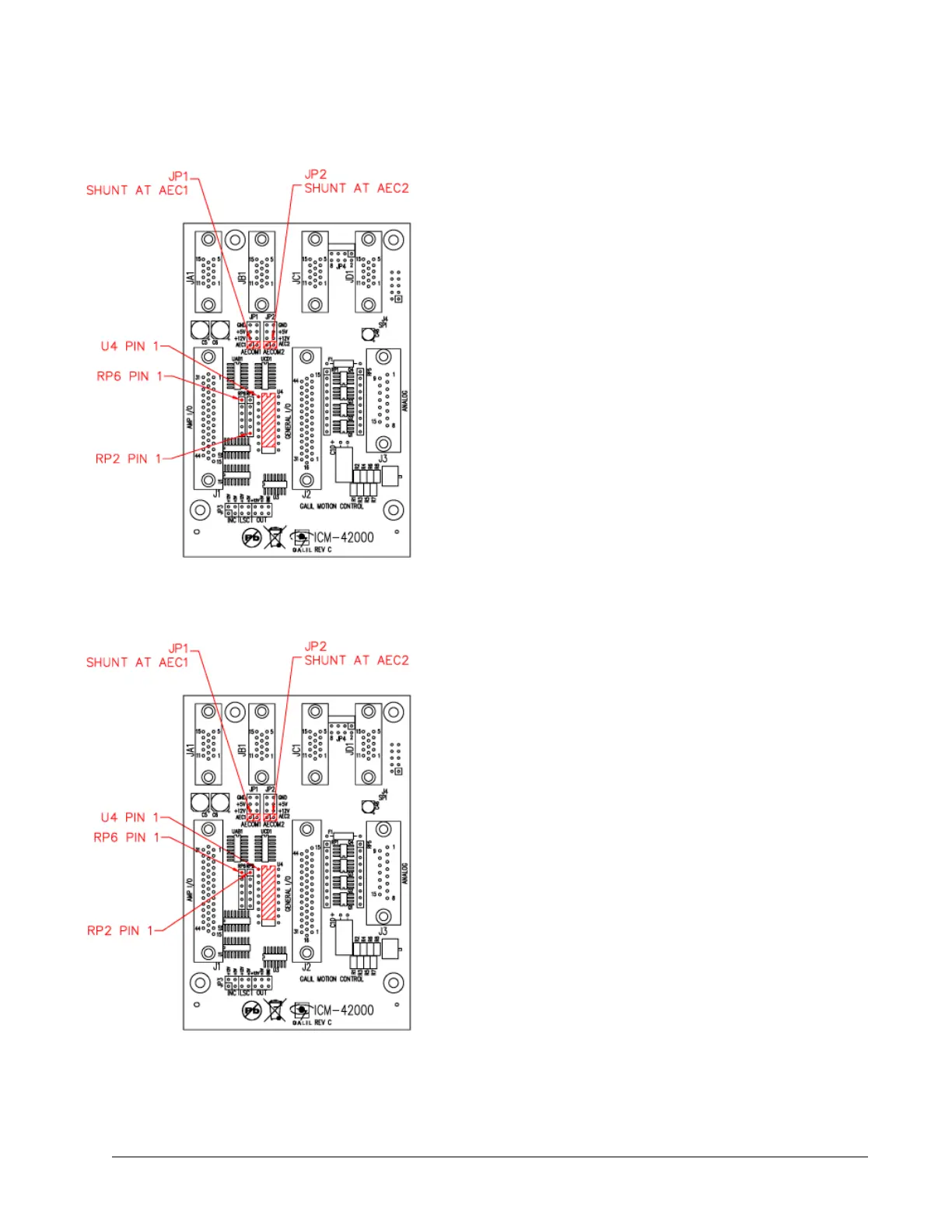

Isolated Power High Amp Enable Sourcing Configuration
Isolated Power Low Amp Enable Sourcing Configuration
DMC-40x0 User Manual Appendices • 220
AEC1 = V-
AEC2 = V+
For +5V to +12V, RP6 = 820 Ohms
For +13V to +24V, RP6 = 4.7K Ohms
From Default Configuration:
1. Move U4 up one pin location on socket
2. Reverse RP2
3. Change JP1 to AEC1
4. Change JP2 to AEC2
5. If AEC2 is +13V to +24V, Replace RP6 with
4.7K Resistor Pack
AEC1 = V-
AEC2 = V+
For +5V to +12V, RP6 = 820 Ohms
For +13V to +24V, RP6 = 4.7K Ohms
From Default Configuration:
1. Move U4 up one pin location on socket
2. Change JP1 to AEC1
3. Change JP2 to AEC2
4. If AEC2 is +13V to +24V, Replace RP6 with
4.7K Resistor Pack
