Chapter 2. Installation
4 AT600 User’s Manual
2.2 Unpacking the AT600 system
Before removing the AT600 system from the crate, please inspect the flow meter. Each instrument manufactured by GE
Measurement & Control is warranted to be free from defects in material and workmanship. Before discarding any of
the packing materials, account for all components and documentation listed on the packing slip. The discarding of an
important item along with the packing materials is all too common. If anything is missing or damaged, contact GE
Customer Care immediately for assistance.
Please note that your AT600 system may come in different configurations based on your selection, so the packing list
could be a little different. Below is the typical packing list:
10. One AT600 electronics
20. Two clamp-on fixtures
30. Two transducers (installed in one of the two clamp-on fixtures)
40. One transducer cable (installed on fixture with transducers)
50. Four clamping fixture mounting straps
60. Two "U" bolts for pipe mounting of AT600
70. One USB flash drive with manual and calibration sheet
80. One inner hexagon spanner
90. Three M16 Gland (installed on AT600)
100.Two pieces of Solid Couplant
110.Quick installation guide
120. Calibration Sheet
130.Cabling tools

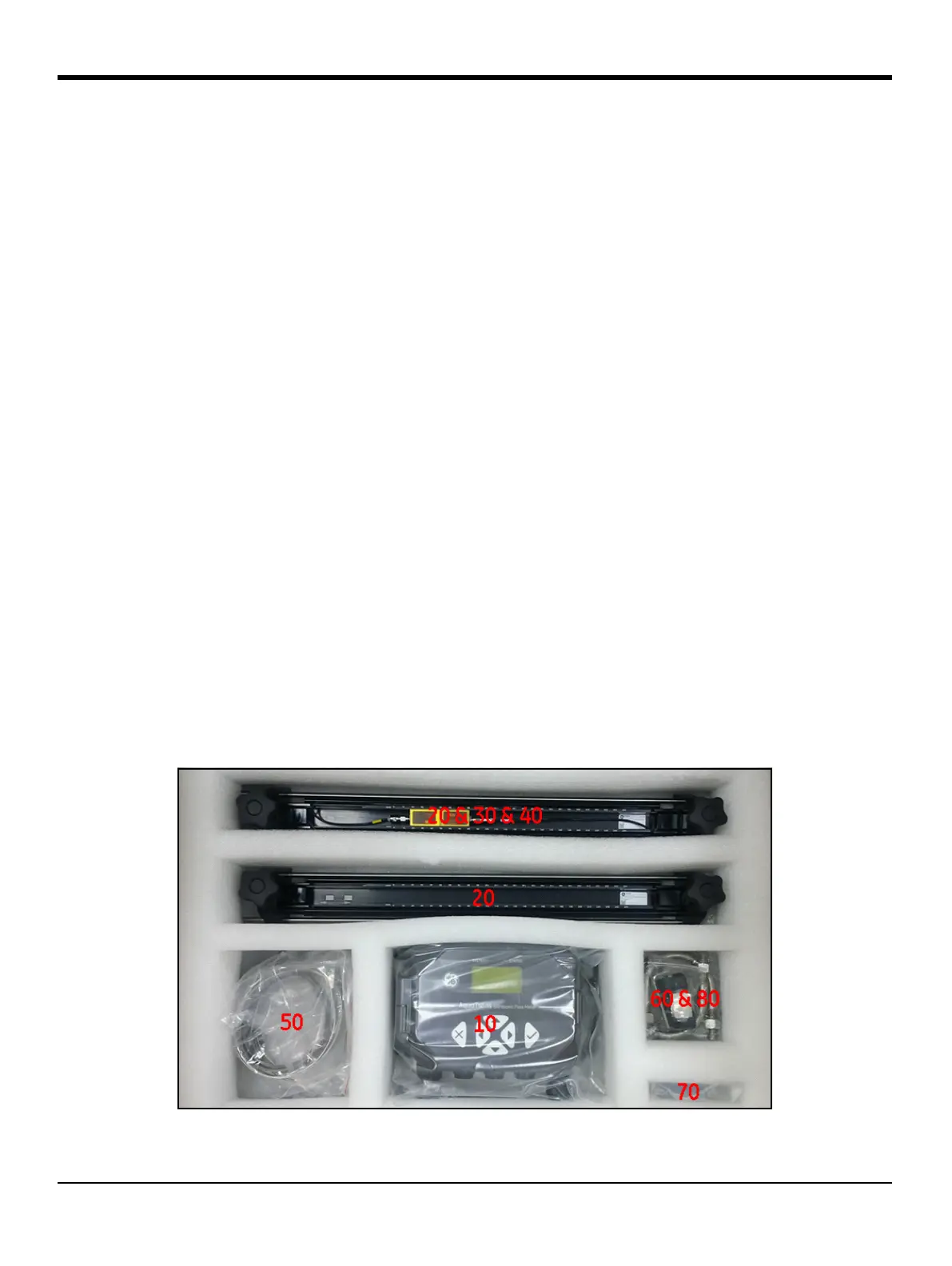

Figure 4: Standard Packing List
