A
T600 User
’s Manual
5
Chapter 2. Installation
2.3
Installing the Electr
onics Enclosure
The A
T600 electronics is
housed in a powder-coated, alumin
um, NEMA type 4X/IP67 enclos
ure suit
able for indoor or
outdoor use, See Figure
5 below fo
r the mount
ing dimensions and weig
ht of the A
T600 electroni
cs.

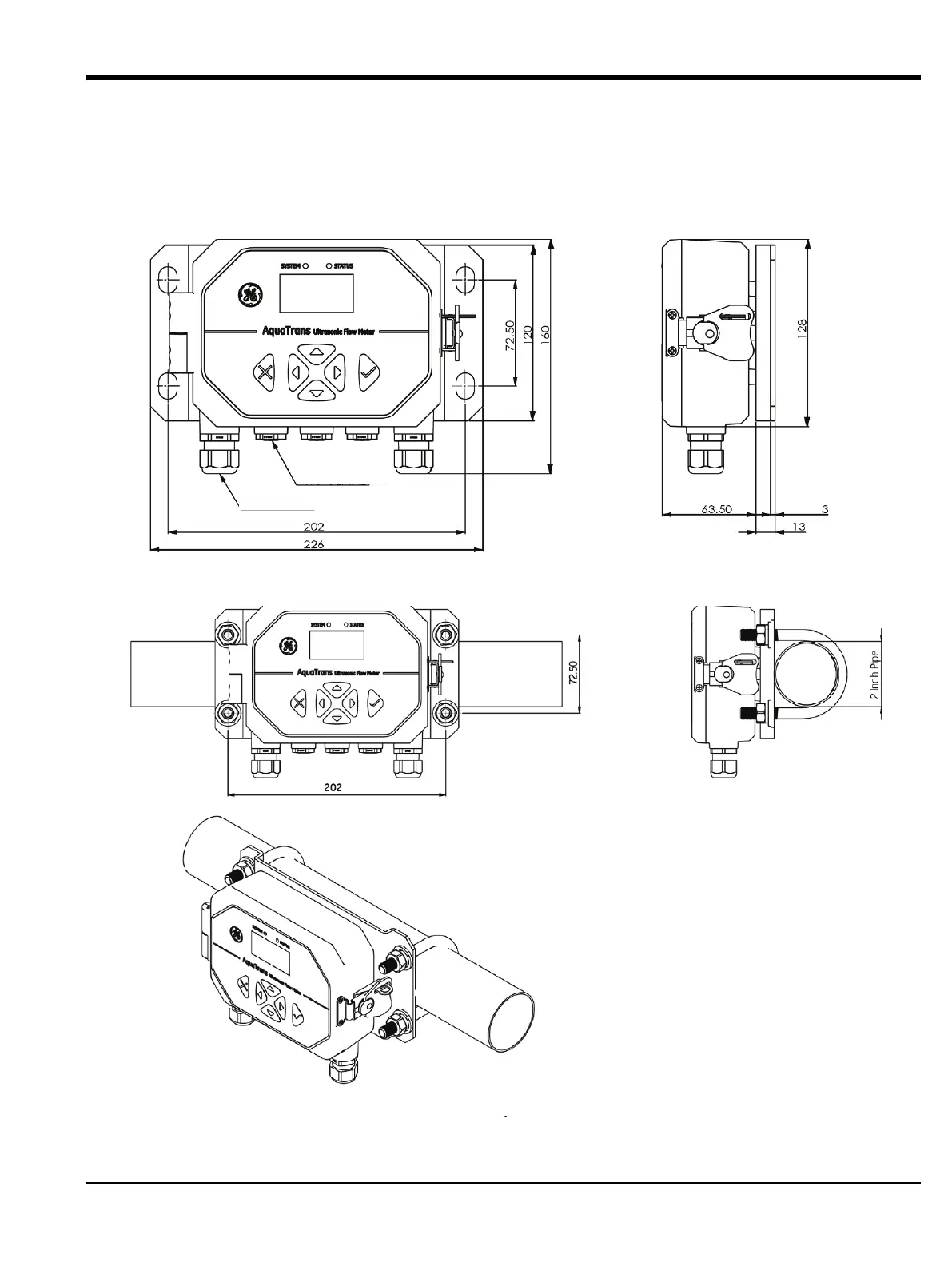

Figure 5: A
T600 Electronics Mounting
M16 GLAND x3
M20 GLAND x2
Wall Mount
Weight is about 1.5 kg for the whole
meter assembly.
Pipe Mount
16
18
Table of Contents
Default Chapter
5
Table of Contents
5
Chapter 1. Introduction
13
Overview
13
Theory of Operation
14
Transit-Time Flow Measurement
14
Chapter 2. Installation
15
Introduction
15
Unpacking the AT600 System
16
Installing the Electronics Enclosure
17
Installing the Clamp-On Fixture and Transducer System
19
Clamp-On Fixture and Transducer Location
19
Mounting Clamp-On Fixture Onto Pipe (AT6 Transducers)
20
Dual Traverse Installation at Transducer Spacing Range 0 to 250Mm
20
Dual Traverse Installation at Transducer Spacing Range 250 to 750Mm
22
Single Traverse Installation at Transducer Spacing Range 0 to 250Mm
25
Single Traverse Installation at Transducer Spacing Range 250 to 750Mm
26
Installing C-RS Fixture and Transducer System
27
Installation Guide for C-RS Transducer
27
Install Cable Adaptor for C-RS Transducer and AT6 Cable
27
Making Electrical Connections
28
Wiring the Line Power
29
Wiring the Transducers
31
Wiring System Ground
31
Wiring Analog Output/Hart Communication
32
Wiring Modbus Communication
33
Wiring Frequency/Totalizer/Alarm Output
33
Wiring Gate Input
34
Chapter 3. Initial Setup and Programming
35
Introduction
35
AT600 Keypad Operation
36
Display Programming
37
Changing Value for One or Two-Variable Screens
37
Changing Measurement Type for One- or Two-Variable Screens
38
Changing the Measurement Type or Value for Totalizer Screens
39
Starting or Stopping Totalizer Measurement
41
Resetting the Totalizer
42
Entering the Main Menu (Lock Button)
43
Display Format
43
Keypad Lockout
44
Language
45
Program/Program Review
45
Program Review
46
Program
46
User Preferences
47
Setting
47
Units Setting
48
Density
49
Password
49
Display
50
Backlight
50
Timeout
50
Inputs/Outputs
52
Programming the Analog Output Menu
52
Setting Analog Measurements
53
Setting Base Value and Full Value
53
Calibrate the Output
54
Setting Error Handling
54
Programming the Digital Output Menu
55
Disable the Digital Output
56
Setting the Pulse Output
56
Setting the Frequency
59
Setting the Alarm
61
Programming Modbus/Service Port
64
Programming Digital Communications
64
Modbus
64
Hart
66
Sensor Setup
68
Programming the Meter Setup
69
Setting Zero Cutoff
69
Programming the Pipe
70
Setting Pipe Od/ID/Wall Thickness
70
Setting Pipe Material
71
Setting the Lining
72
Programming the Transducer
74
Setting the Standard Transducer
74
Setting a Special Transducer
77
Programming the Traverses
80
Programming the Fluid Type
81
Programming the Fluid Temperature
82
Programming the Transducer Spacing
83
Chapter 4. Error Codes and Troubleshooting
85
Error Display in the User Interface
85
Error Header
85
Flow Error String
85
E1: Low Signal
85
E2: Sound Speed Error
85
E3: Velocity Range
86
E4: Signal Quality
86
E5: Amplitude Error
86
E6: Cycle Skip
86
Diagnostics
87
Introduction
87
Flowcell Problems
87
Fluid Problems
87
Pipe Problems
88
Transducer Problems
88
Chapter 5. Communication
89
Modbus
89
Introduction
89
MODBUS Map
89
Hart
98
Device Identification
98
Commands
98
Universal Commands
98
Common Commands
99
C Device Specific Commands
100
Additional Device Status
159
Device Variables
160
HART Engineering Units
161
Appendix A. Specifications
165
A.1 Operation and Performance
165
A.2 Meter Body/Transducer
166
A.2.10 Wiring Cable Specifications and Requirements
167
A.3 Electronics
168
Appendix B. Data Records
169
B.1 Service Record
169
B.2 Initial Settings
171
B.3 Diagnostic Parameters
172
