Chapter 2. Installation
6
A
T600 User
’s Manual
2.3
Installing t
he Electr
onics Enclosur
e (cont
.
)
The installation base of A
T600 electronics can also be rotated by 90 degrees to keep a horizontal view of the user
interface in a horizontal or vertical
moun
ting condition. See
Figure
6 below for A
T600 mo
unting of the installation
base.

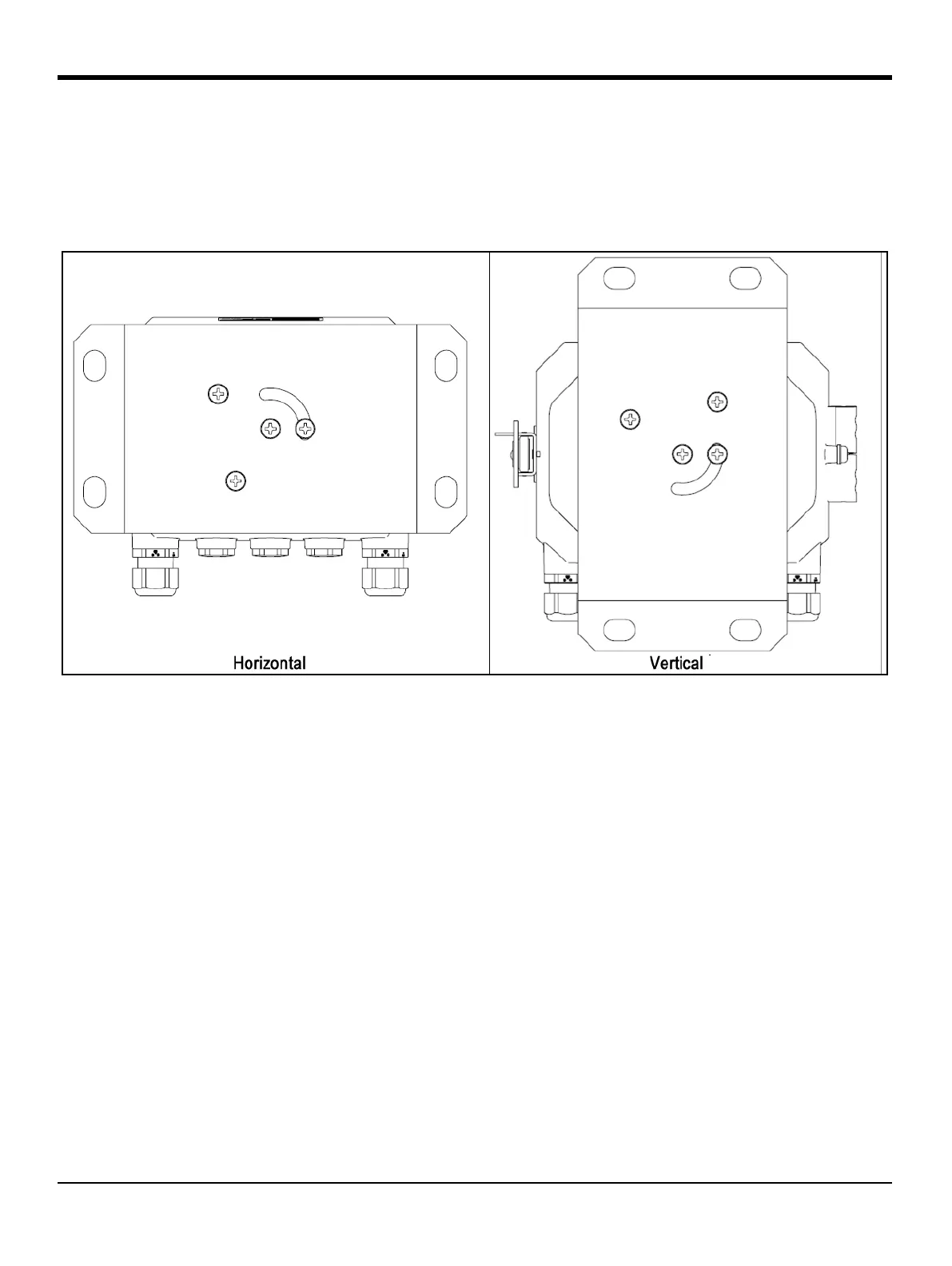

Figure 6: A
T600 Mounting
of Installation Base
