AT600 User’s Manual 15
Chapter 2. Installation
2.5 Installing C-RS Fixture and Transducer System
2.5.1 Installation Guide for C-RS transducer
Refer to GE document 916-077, the C-RS Installation Guide, for C-RS transducer installation onto the pipe (Section 6,
Installing General Clamping Fixture).
2.5.2 Install Cable Adaptor for C-RS transducer and AT6 cable
To match the BNC type connector on the C-RS transducer with the SMA type connector on the AT6 cable, one BNC to
SMA adaptor is needed for C-RS transducer cabling. See Figure 21 below for adaptor installation.

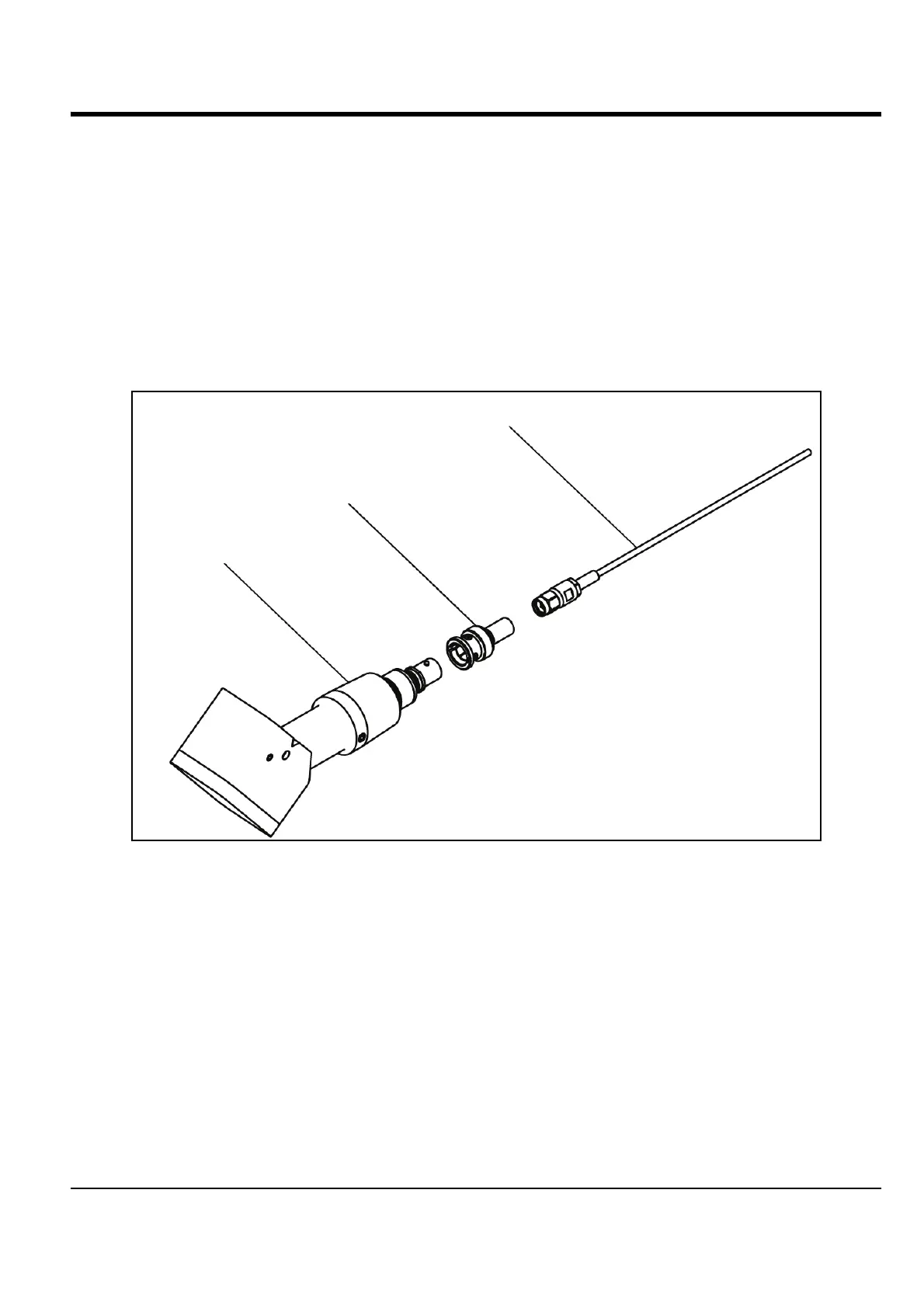

Figure 21: Install Cable Adaptor for C-RS Transducer
AT6 Cable with SMA Plug
BNC to SMA Adaptor
C-RS Transducer
To Next Page
