Section 4 — Measurement Types and their Uses
97
Specify Locations and Directions for Saved Impacts
Once you have saved your recordings, you will need to specify the
locations and directions of the impacts. To do this
1. Specify the locations and directions for the impacts you have saved:
a. Press Machine Name > Select or specify the machine you
performed the impact test on (e.g. Rotor 1) > Press .
b. Press Hammer Point > Select or add the name of the point
at which you performed the impact (e.g. Right Side) > Press .
c. Select the point names for the channels you used.
d. Press Hammer Axis to select the direction of the impacts.
NOTE: Each response channel must be saved to a unique point or
axis.
e. Press the button(s) beside the Channel Axis labels > Select the
direction(s) you used > Press .
2. Press to exit when you have finished specifying the details for
the impacts you executed.
3. Move your sensor or hammer to its new location and perform more
modal impacts in Run mode.
4. Press to return to the Modal Impact Testing screen.

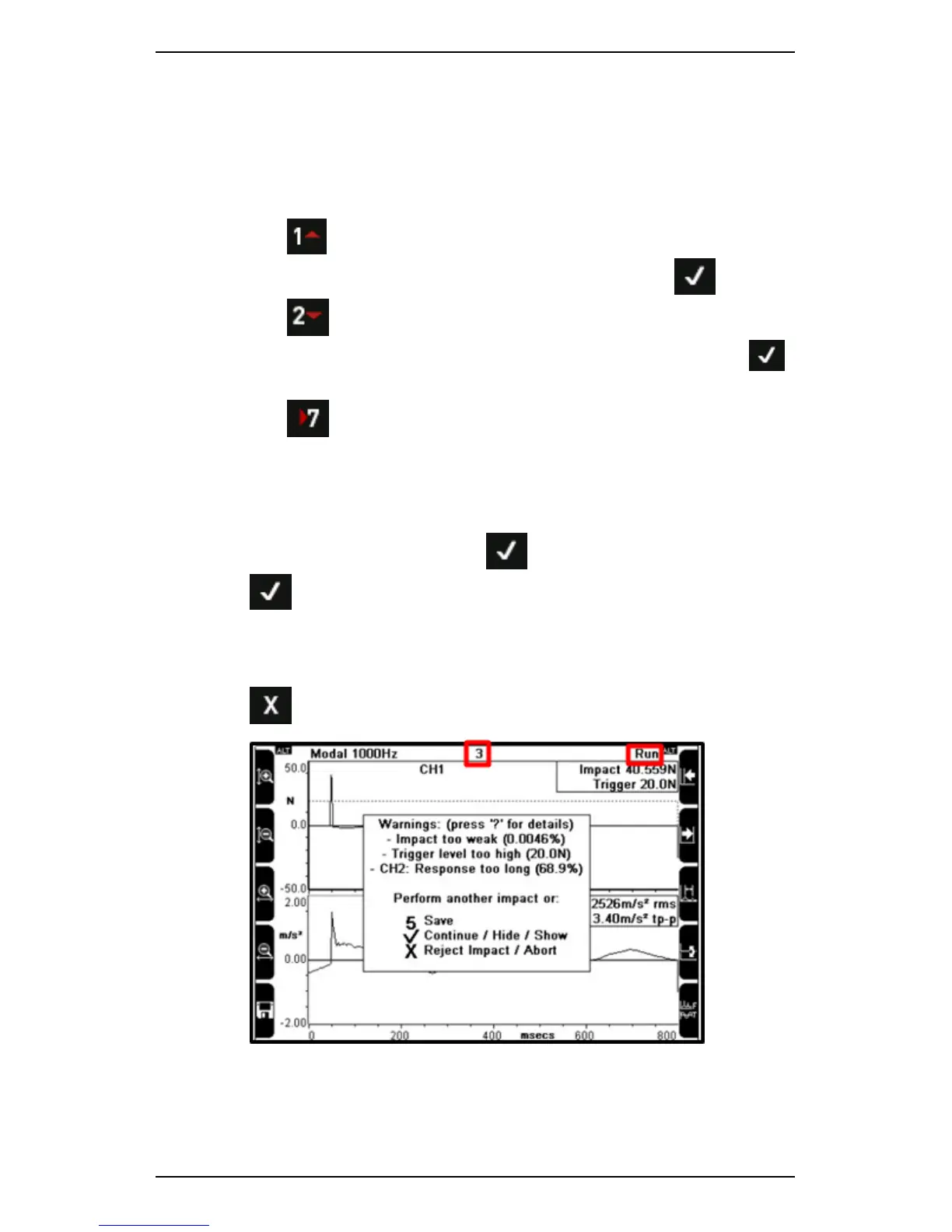

Taking an actual recording in Run mode –
So far there have been 3 impacts in this recording
