Section 4 — Measurement Types and their Uses
82

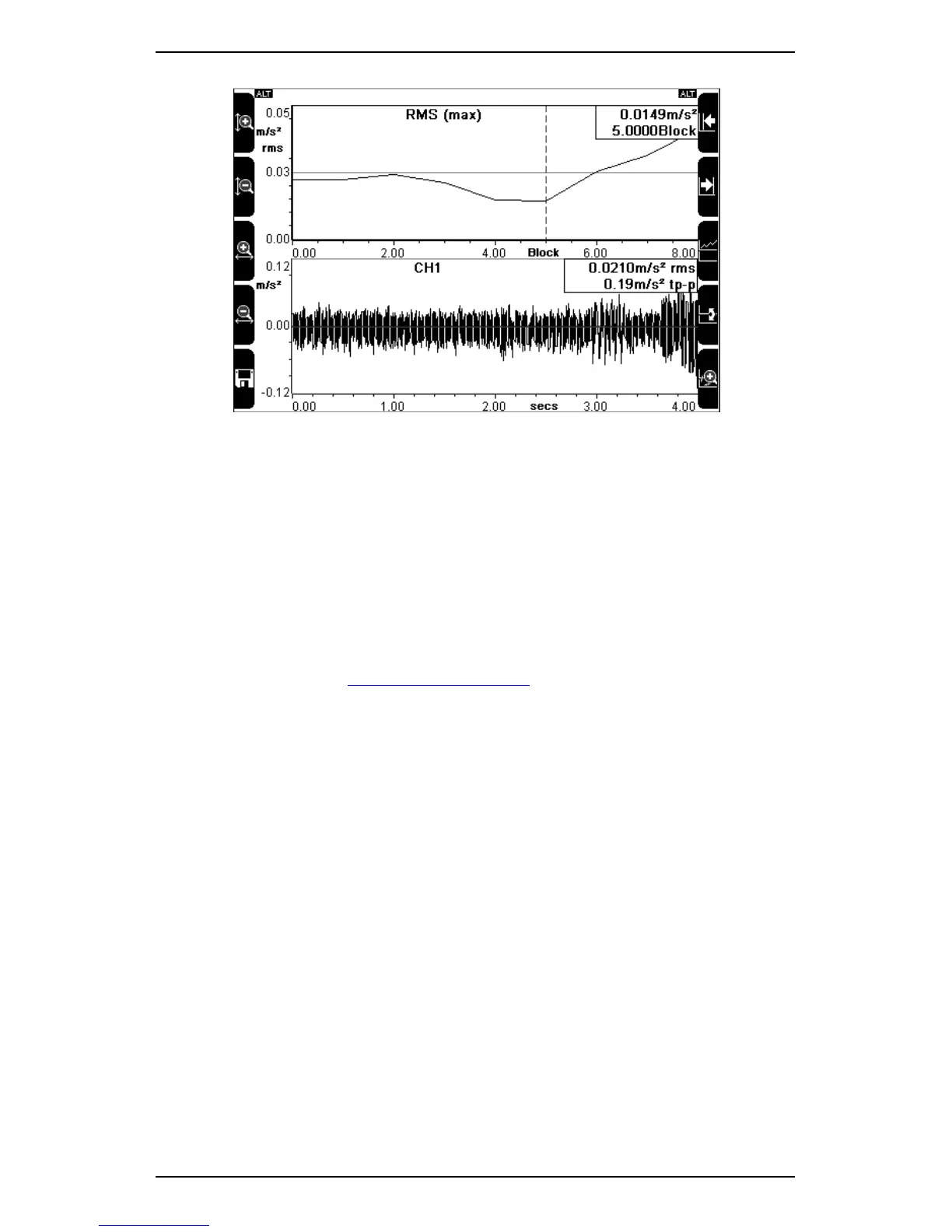

Measuring long time wave forms
View Long Time Waveforms on Computer
When you have finished recording, the selected measurement location
will contain several individual sample recordings. Once you have
transferred these to your computer, you can use the waveform analysis
tools to create a high resolution spectrum of the recordings. To do this,
select Analyze > Partial Waveform Analysis or Freq. Based Waveform
Analysis.
MORE: See the Ascent Reference Guide.
You can combine up to 100 sample recordings in a single long time
waveform chart in Ascent. For example, if individual recordings taken on
your instrument used 4096 samples, the maximum long time waveform
length displayed in Ascent would include 409,600 samples, resulting in
160,000 lines of resolution (409,600 divided by 2.56).
