Measurement and Analysis
138 Vivid i User’s Manual
2378958-100 Rev. 02
Creation of a user-defined folder

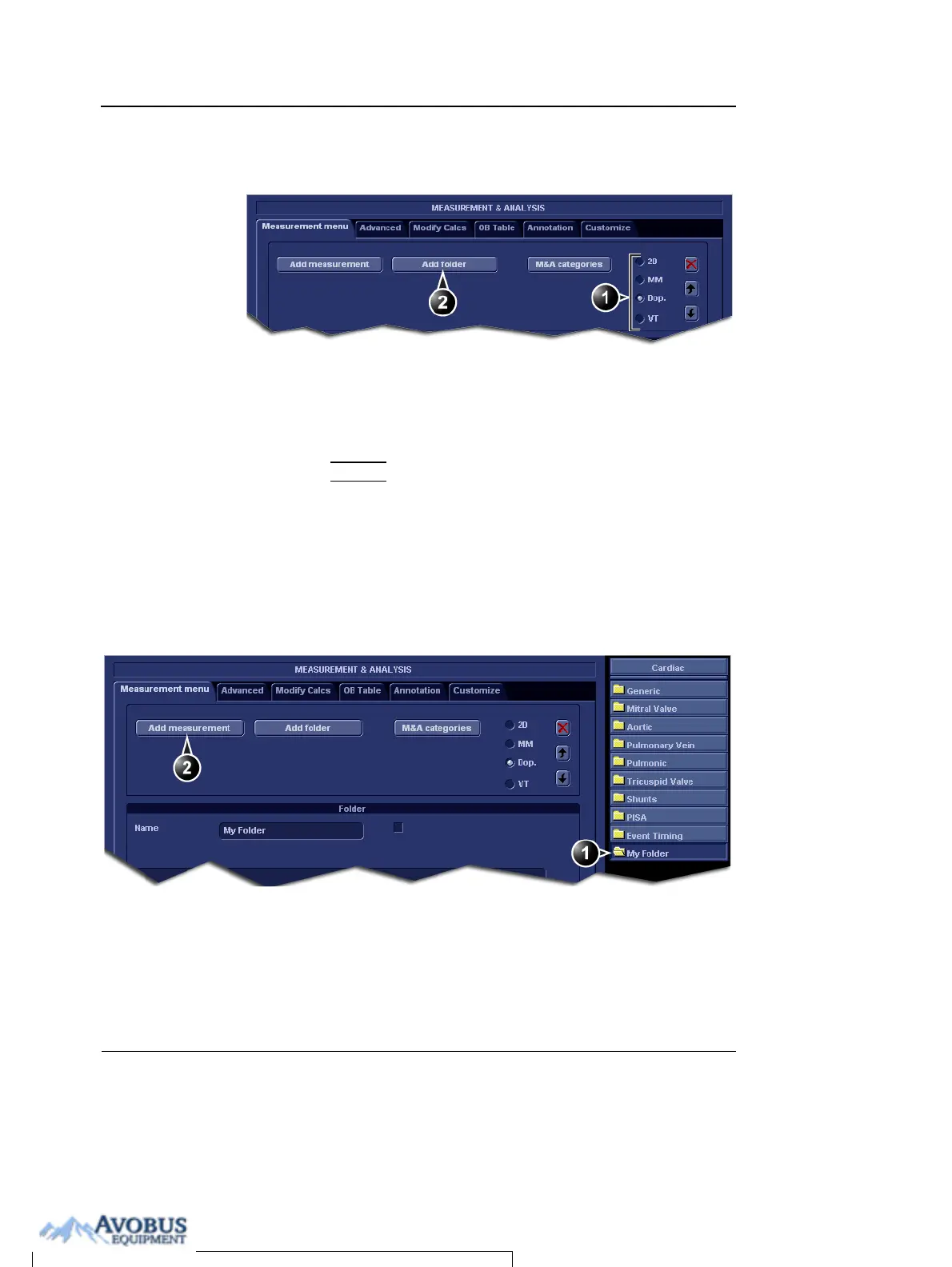

Figure 6-8: The Measurement menu sheet
1. Press CONFIG and select the category Measure.
2. MCO and AV ET are Doppler measurements, select
Doppler in the Measurement menu sheet.
3. Select Add folder.
4. Give the folder a name (e.g. “My Folder”).
Adding measurements
Figure 6-9: The Measurement menu sheet
1. Select the user-defined folder (e.g. “My Folder”) in the
1. Select the appropriate scanning mode.
2. Create a folder in the Measurement menu.
1. Select the user-defined folder.
2. Press Add measurement.
