Measurement and Analysis
Vivid i User’s Manual 139
2378958-100 Rev. 02
Measurement menu.
2. Press Add Measurement in the Measurement menu
sheet.
The Add measure window is displayed.

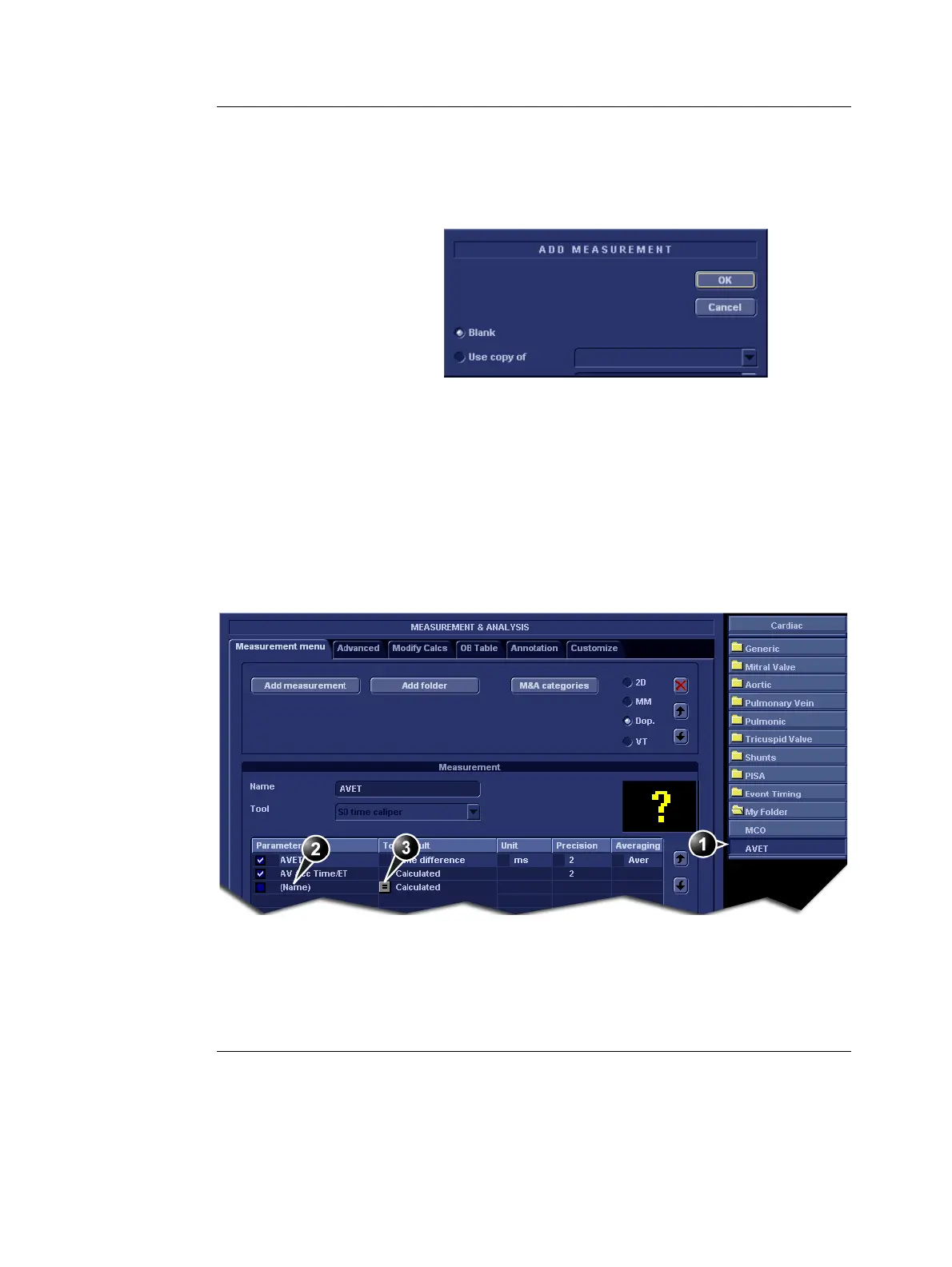

Figure 6-10: The Add measure window
3. MCO and AV ET are measurements that already exist on
the system, check Use copy of and select MCO from the
drop down menu.
4. Select OK to add the MCO measurement.
5. Repeat steps 2 to 4 to add the AV ET measurement.
Creation of the formula
Figure 6-11: The Measurement menu sheet
1. Select the last measurement.
2. Double click and enter the formula name.
3. Select “=” to create the formula.
