Measurement and Analysis
140 Vivid i User’s Manual
2378958-100 Rev. 02
The formula for this example is as follow:
My LIMP = (MCO-AV ET)/AV ET
1. In the user-defined folder (e.g.”My folder”), select the last
measurement created (e.g. AV ET).
2. Double-click (Name) in the last line in the Parameter list in
the Measurement menu sheet.
3. Enter the name for the formula (e.g. My LIMP).
4. Select .
The Edit formula window is displayed.

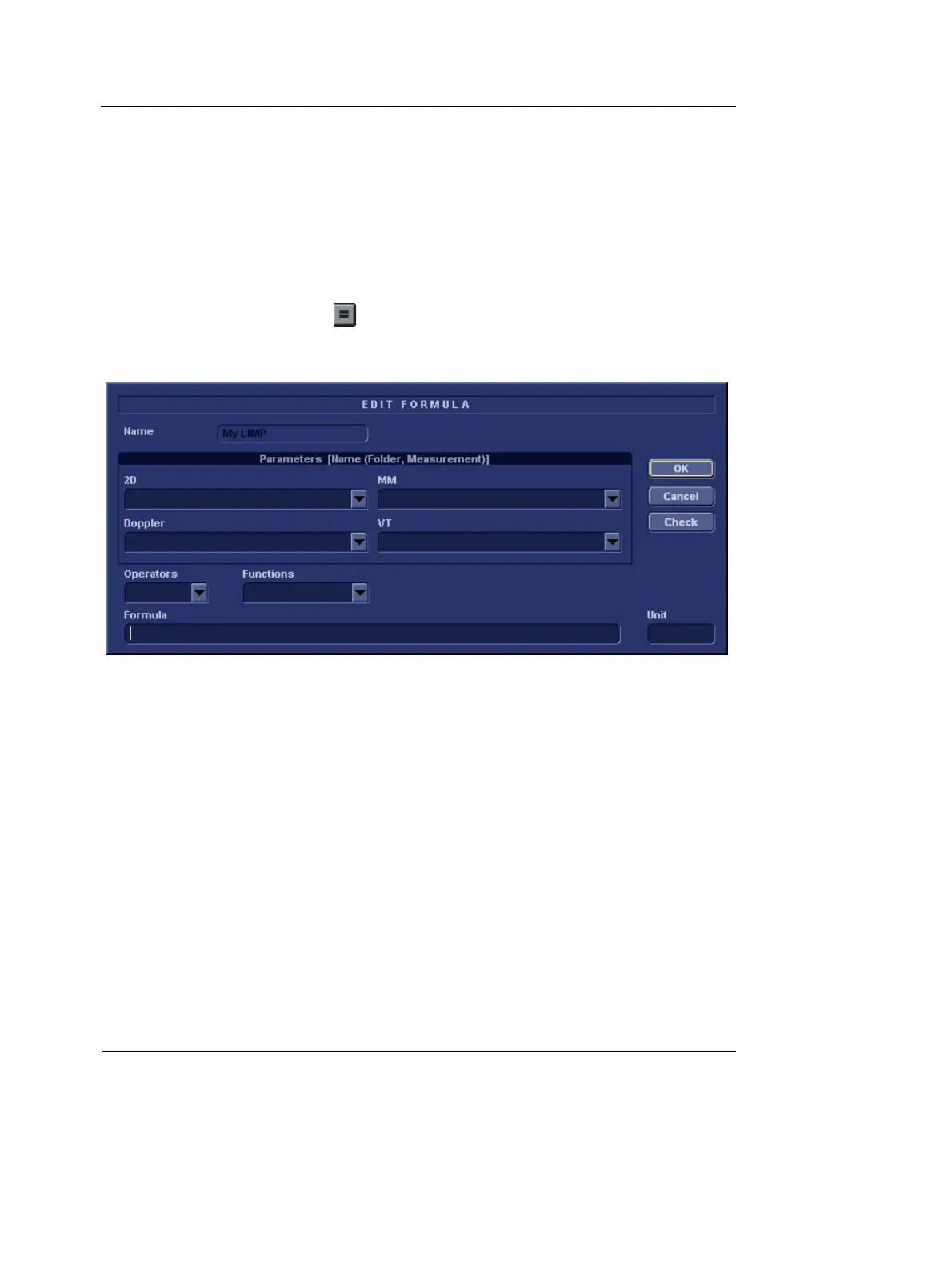

Figure 6-12: The Edit formula window
5. Select “(“ from the Operators drop-down menu.
6. In the Doppler drop-down list, select
MCO [My Folder, MCO].
Make sure to select the measurement located in the user
defined folder (e.g. “My Folder”).
7. Select “-“ from the Operators drop-down menu.
8. In the Doppler drop-down list, select
AV ET [My Folder, AVET].
9. Select “)“ from the Operators drop-down menu.
10. Select “/“ from the Operators drop-down menu.
11. In the Doppler drop-down list, select
AV ET [My Folder, AVET].
The Formula line should display: ({MCO}-{AVET})/{AVET}.
