Archiving
Vivid i User’s Manual 187
2378958-100 Rev. 02
Figure 8-25: Stand-alone scanner dataflows
Scanner in a network
The figure below illustrates two different dataflows for a
scanner connected to a network.

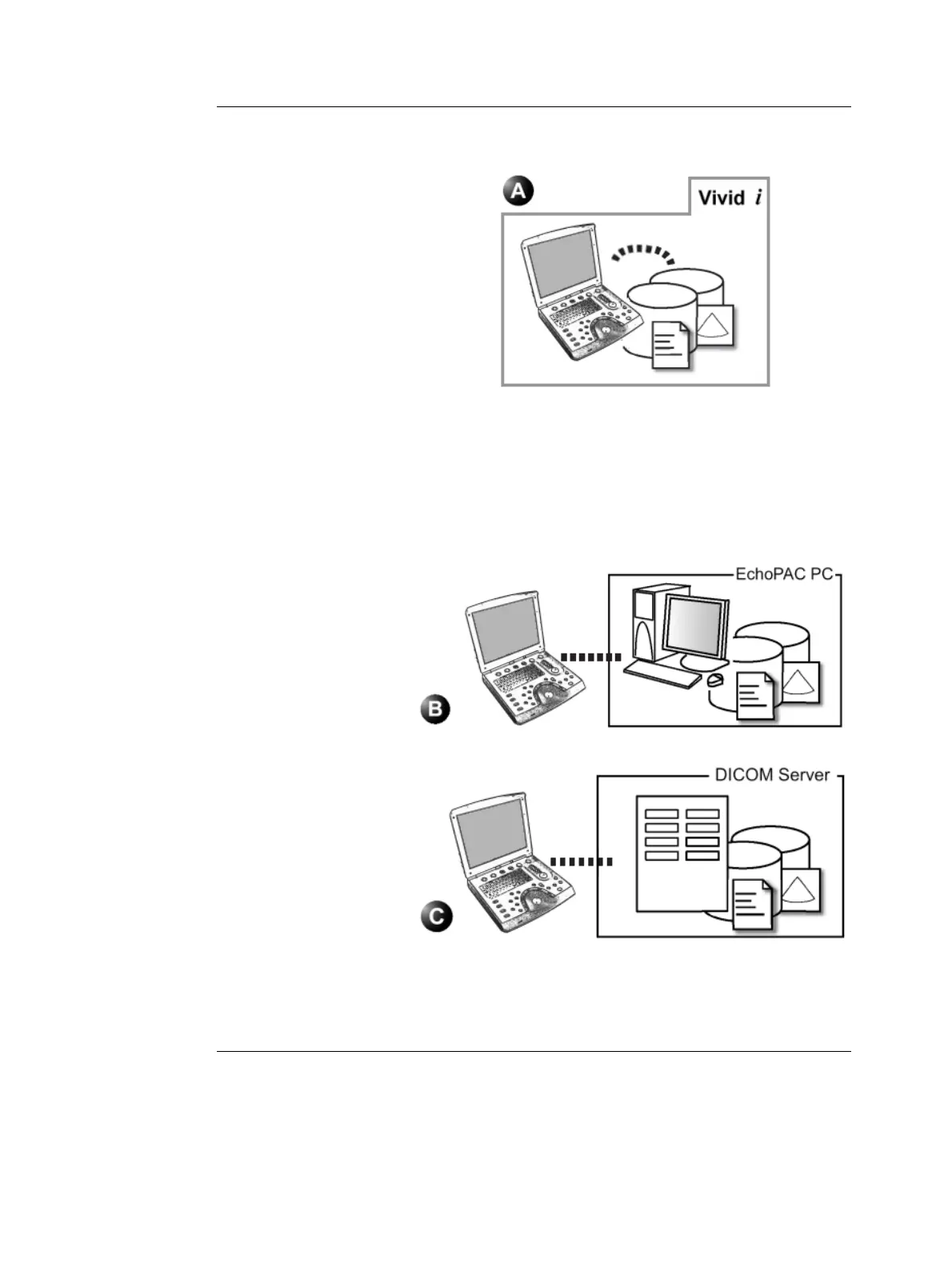

Figure 8-26: Scanner in a network dataflows (example)
A: LocalArchive-Int.HD dataflow:
The local database is used for
patient archiving. Images are
stored to internal harddrive.
B: RemoteArch-Remote HD
dataflow:
A remote database (here
EchoPAC PC) is used for patient
archiving. Images are stored to a
remote archive (here
EchoPAC PC).
C: Worklist/LocalArchive-DICOM
Server/Int.HD dataflow:
Search in the DICOM Modality
Worklist, the patient found is copied
into the local database. Images are
stored to a DICOM server and to
the internal hard drive.
