D
C
000320
7.

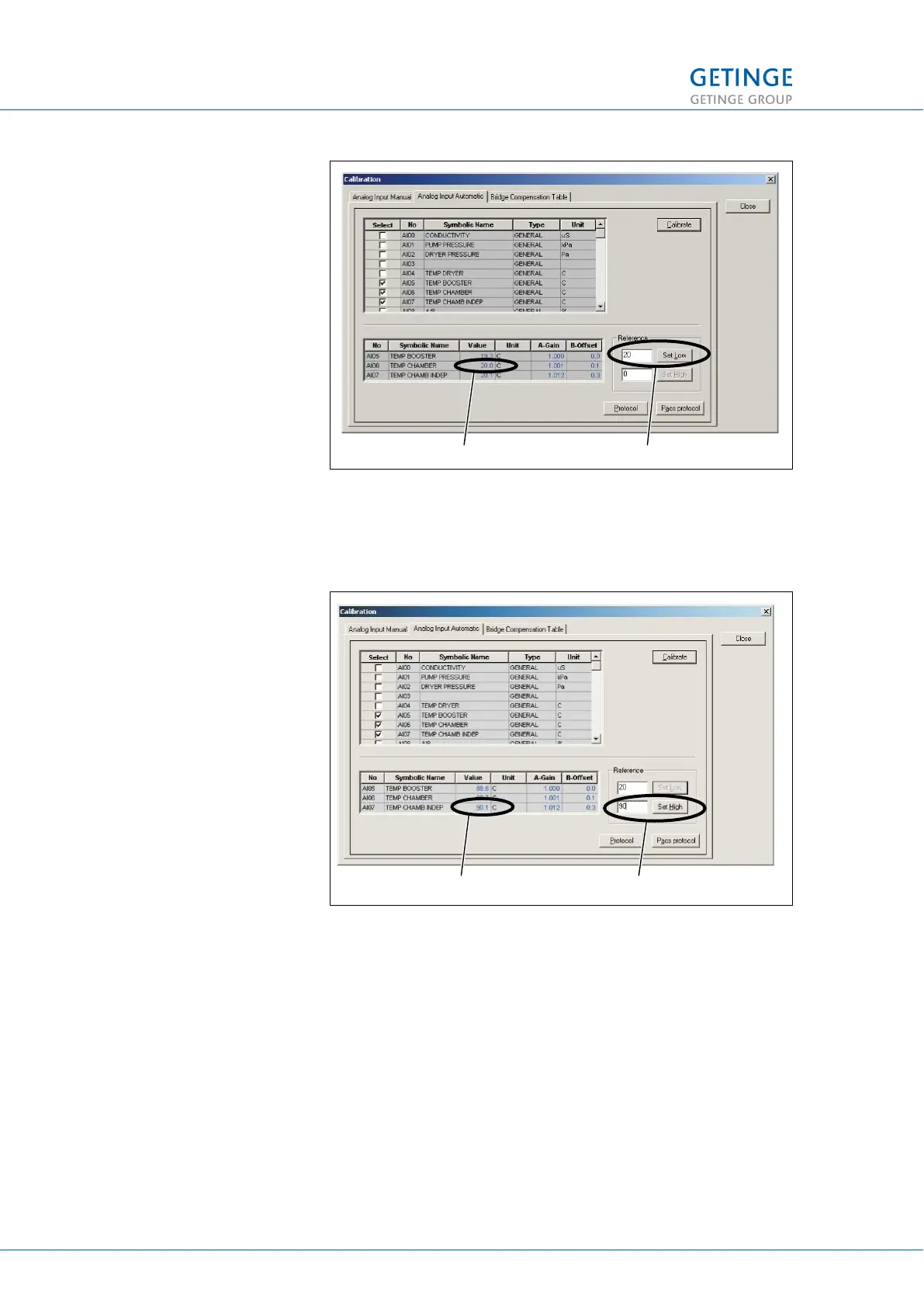

Replace resistance for 20ºC with resistance for 90ºC.
8.
Enter 90 (E) in CS 1000 and click Set High.
9.
Check that the value (F) rises to 90.
F
E
000321
10.
Log off CS 1000.
11.
Remove the resistances and reset the temperature sensors.
7 REPAIRS AND ADJUSTMENT
110 (128)
TECHNICAL MANUAL GETINGE WD15 CLARO
<Doc_TEC><Doc_6001396902><Rev.I><Lang_en>
109
111
Table of Contents
Table of Contents
3
Preface
7
Safety Precautions
8
Important
9
Isolator Switch
9
Signs and Labels
10
Attention Symbols
10
Product Liability
10
Declaration of Conformity
10
Disclaimer
10
Manufacturer
11
Warranty
11
Presentation
12
Areas of Use
12
Control Panel
13
Indicators
13
Control Buttons
14
Window
14
Software Description and Settings
17
Process Selection
18
Control System
18
Password
19
Menu Tree
21
Home Menu
22
Process Selection
22
Start Process
22
Process Screen
23
Main Menu
23
Login/Logout
24
About
24
System Menu
24
Alarm History
42
Print
43
A Parameters
44
P Parameters
45
DIP Switches
49
Alarm Management
50
Information Texts
51
Error Indicators
52
Alarms
52
Acknowledgement of an Error Code
53
Emergency Opening of the Machine
54
Error Codes in the Machine
55
Troubleshooting
56
Preventive Maintenance
60
Periodic Maintenance
60
Service Table
61
Consumables
62
General (Item 1)
62
Checking Electrical Cables and Connection Points 1.1
62
Checking the Cooling Fan 1.2
63
Checking the Panel 1.3
63
Checking the Machine Is Level 1.4
63
Checking the Quick Guide 1.5
63
Checking Error Codes and Number of Processes 1.6
63
The Chamber (Item 2)
63
Clean the Inside of the Chamber 2.1
63
Check the Spray Arms 2.2
64
Replacing Spray Arm Bearings 2.3
64
Checking Temperature Sensors 2.4
64
Checking the Strainer in the Bottom of the Chamber 2.5
65
Checking Insert for Goods 2.6
65
Checking the Wash Cart Guide Rails 2.7
65
Checking the Salt Level in the Salt Filter (Option) 2.8
65
Door (Item 3)
65
Checking Door and Door Springs 3.1
65
Checking the Door Seal and Chamber Seal 3.2
66
Checking the Door Lock and Switch for Proper Functioning 3.3
66
Checking the Door Wire 3.4
66
Connections (Item 4)
66
Checking Water and Drain Connections 4.1
66
Checking the Filter for Incoming Water 4.2
67
Dosing System (Item 5)
67
Checking Hoses 5.1
68
Replacing a Hose to a Hose Pump 5.2
68
Checking the Dosing Amount 5.3
71
Checking the Empty Container Alarm 5.4
71
Dryer (Item 6)
72
Replacing a HEPA Filter 6.1
72
Checking Fan Function 6.2
72
Checking the CPU Card and the HEPA Filter 6.3
72
Lighting (Item 7)
72
Checking Lighting 7.1
72
Test Run (Item 8) (at each Service)
73
Function and Leakage Check 8.1
73
Checking the Panel 8.2
73
Temperature Check 8.3
74
Function Check
75
Instructions, Cable, Switch
75
Filters and Valves
75
Operator Display
75
Insert for Items
75
Door
75
Detergent Dosing
76
Washing System
76
Temperature Check
76
Dryer
76
Repairs and Adjustment
77
Maintenance with Open Door
78
Attachment Pin Door
78
Maintenance from the Chamber
79
Replacing an Element
79
Replacing/Cleaning Strainers
80
Replacing/Cleaning Spray Arms
80
Replacing the Guides for the Upper Tray
81
Maintenance from Front Side
82
Replacing a HEPA Filter
82
Replacing a Dosing Pump
83
Replacing the Waste Pump
83
Replace the Pressure Switch from the Sump and Pump Pressure
83
Replacing Fuses
84
Assembly of Front Panel
84
Removing Cover Panels
85
Maintenance from above with the Top Plate off
86
Door Switch
86
Spray Arm Tap at Top
86
Maintenance from the Side with the Cover Plates Removed
87
Lamps
87
Regenerating Tank
87
Maintenance from Back Side
88
Drying Box
88
Main Pipe
89
Valves
89
Electric Terminals
89
Maintenance from Bottom
89
Turning the Machine
90
Circulation Pump and Fan
91
Sump
91
Salt Filter
92
Spray Arm Bottom
92
Connecting a PC
92
Printer Martel MCP8810X (Option)
93
Printer Lexmark C524/534 (Option)
95
Netcom (Option)
97
External Dosing (Option)
99
Load Program to Flash Memory
100
Loading System Programs
101
Load in a New Application into PACS with CS1000
104
Reloading the Backup from "Flash Prom" to PACS
106
Cold Start
107
Changing User Language
108
Calibrating Temperature Sensors - with Resistance
109
Temperature Sensors - with Ice Bath and Oil Bath
111
Calibrating Detergent Dosing
114
Sensor List
116
Addresses
119
Alphabetical Index
121
