7.7 Maintenance from back side
Remove the machine's cover plates, see 7.4 Removing cover
panels.
000437
1
2

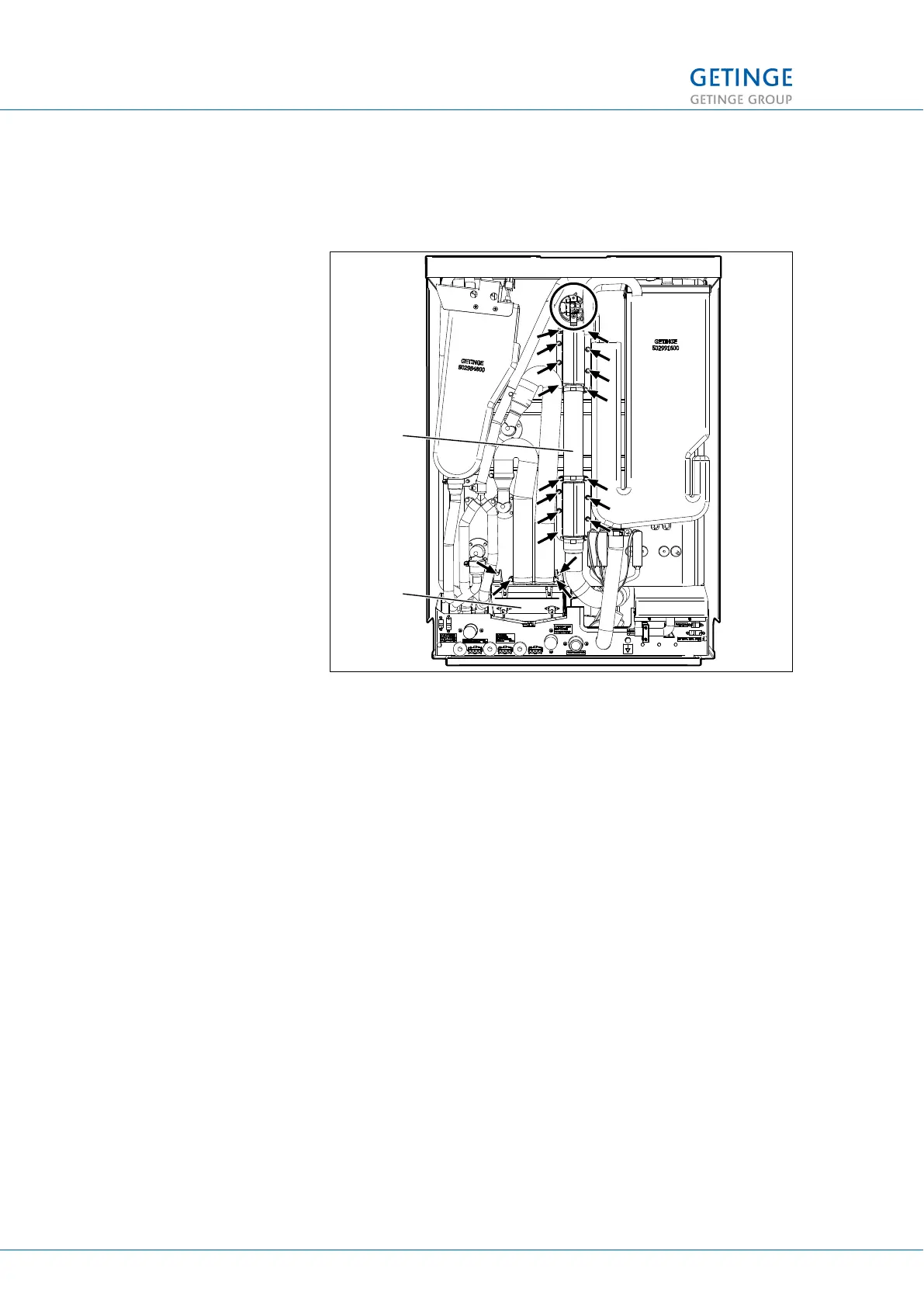

Figure 22. Rear without cover plate
1. Main pipe
2. Drying box
7.7.1
Drying box
Removal
• Remove the hose clamps to the hoses.
• Then unscrew the drying box by loosening the two screws
that are at the back edge of the machine.
• Remove the cords to the dryer.
Assembly
• Attach the hoses in the drying box and tighten the hose
clamps.
• Then put the drying box into its mount and screw in the two
screws.
• Connect the cords in the drying box.
