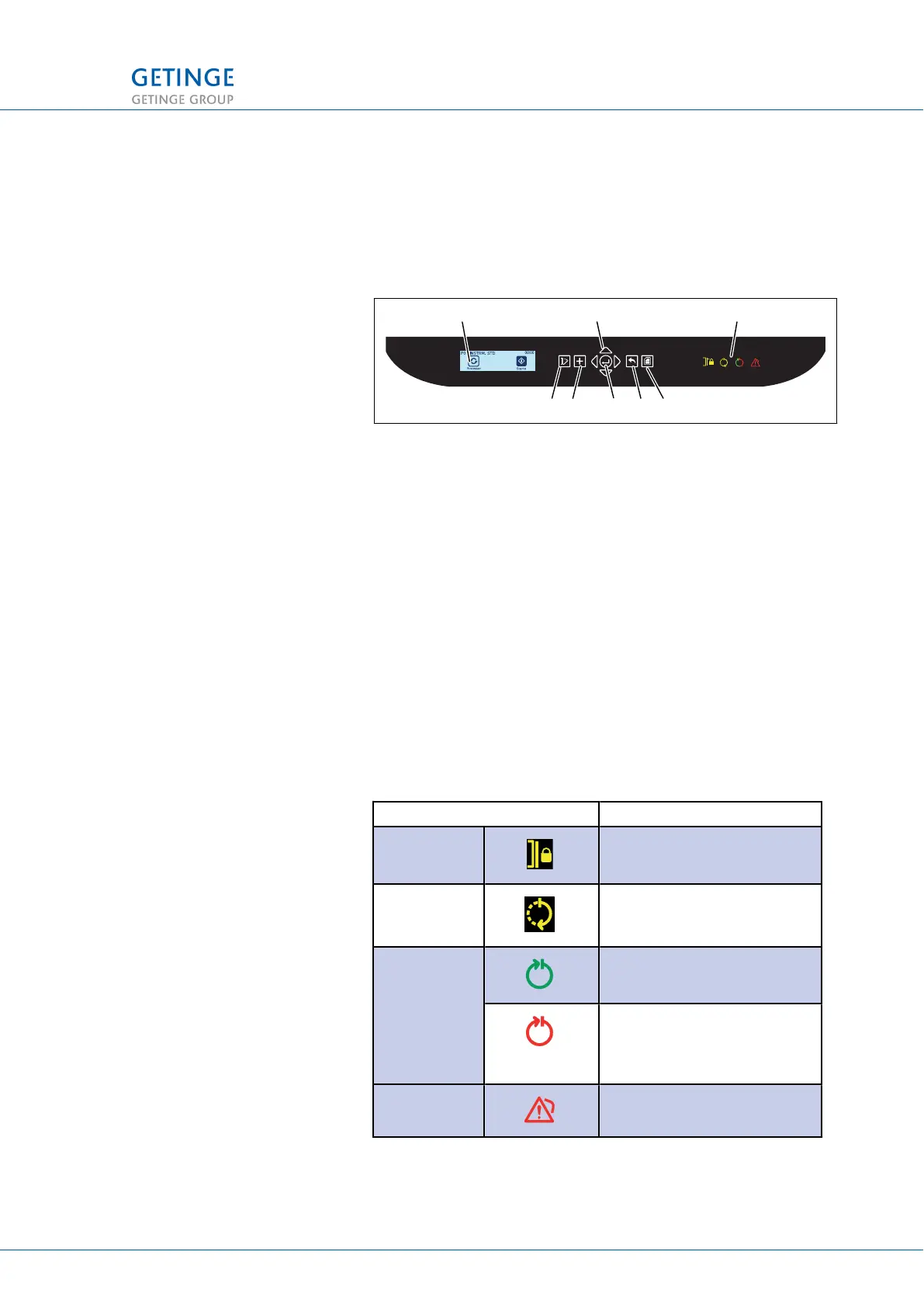

2.2 Control panel
The machine is operated from the control panel located in the top
edge of the door.
The panel can be divided into three areas: indicators, keys, and
windows. Each area is described under the respective heading.
3
87 6 54
21
002234
Figure 2. Control panel
1. Window
2. Control and navigation
keys
3. Indicators
4. Open the door
5. Activate display (Number
of available keys depends
on machine type)
6. - Confirm selection
by navigation
- Start the selected
process
- Reset alarm
signal in the event
of an alarm
7. Back one step
8. Go to menu
2.2.1 Indicators
The indicators show the current operating status of the machine.
Symbol Description
Door locked The machine door is closed
and locked.
Ongoing
process
The machine is running a
selected process.
Completed
process
Green light: Process
completed without errors.
Red light: Process completed
but an error occurred while it
was running. Process not
approved.
Alarms An alarm has been triggered.
2 PRESENTATION
TECHNICAL MANUAL GETINGE WD15 CLARO 13 (128)
<Doc_TEC><Doc_6001396902><Rev.I><Lang_en>
