7.4 Removing cover panels
For maintenance from above, from the side or from behind, the
machine’s cover plates must be removed.
•
Unscrew the four screws that hold the cover in place.
•
Then unscrew the two screws in the back edge of each side
plate.
•
Lift and remove all plates.
000419

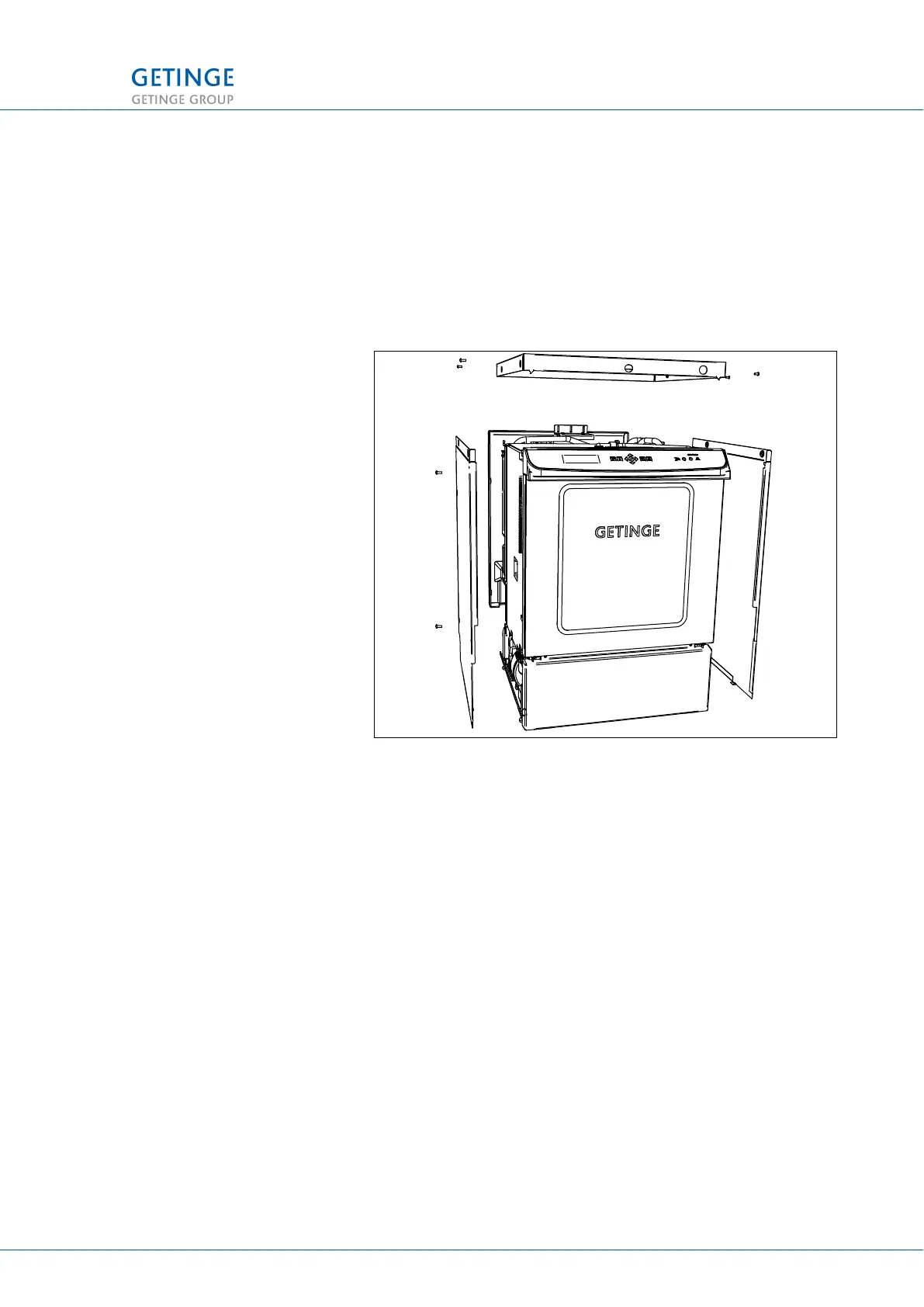

Figure 19. Cover plates
7 REPAIRS AND ADJUSTMENT
TECHNICAL MANUAL GETINGE WD15 CLARO
85 (128)
<Doc_TEC><Doc_6001396902><Rev.I><Lang_en>
