5.8 Dryer (Item 6)
5.8.1 Replacing a HEPA filter 6.1
Removal:
Loosen the two screws that are on the leg on the right side.
Pull the filter straight out. Dispose of the filter.
Installing:
Replace the filter and attach the new filter to the hose from the
fan.

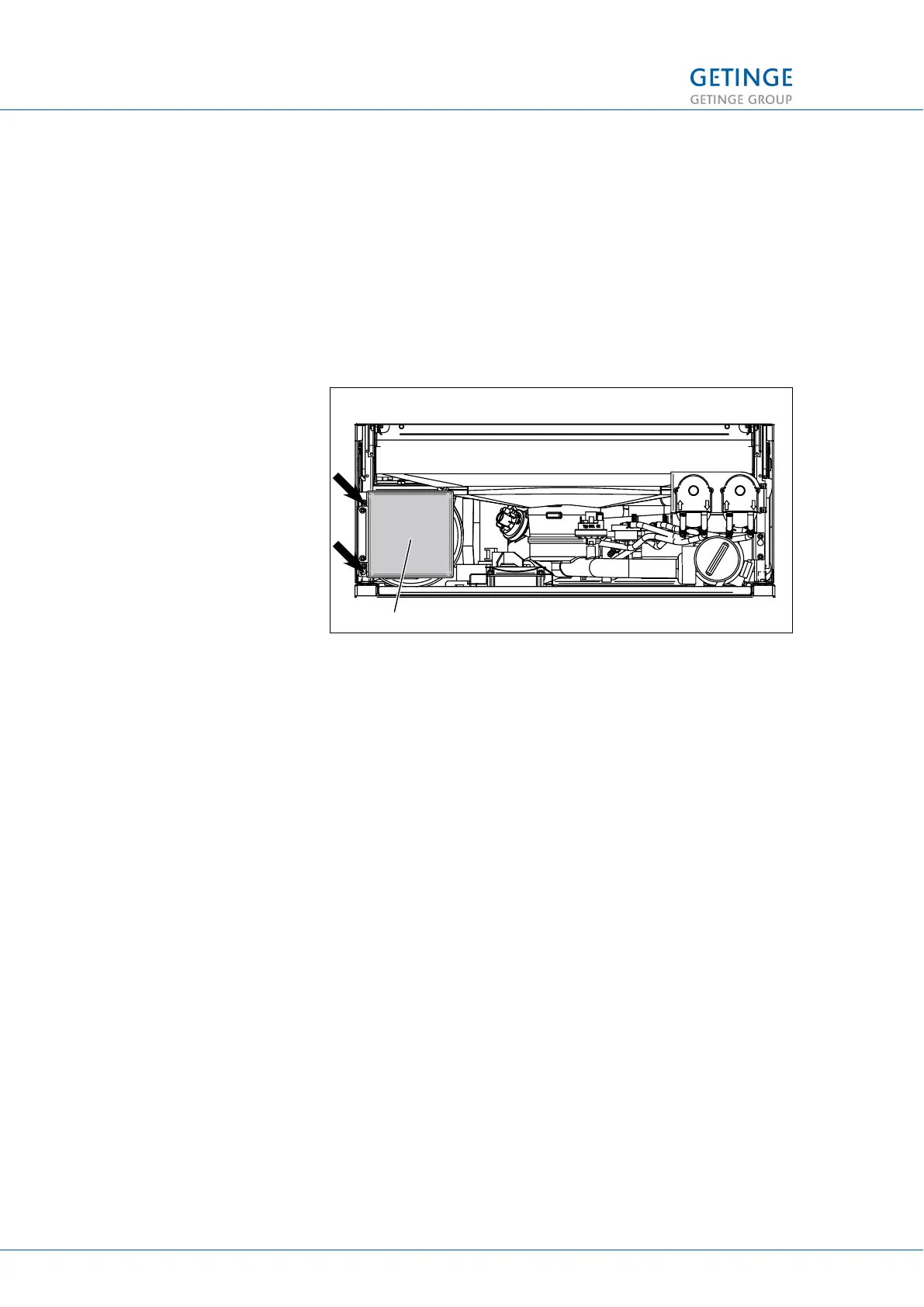

Figure 10. HEPA filter
1. HEPA filter
5.8.2
Checking fan function 6.2
If the fan does not work, the ventilation process can be put out of
operation. Check the fan and clean, if needed. Any leakage can
lead to impaired performance. Leaking connections must be
sealed/tightened. For further instructions see 5.10.1 Function and
leakage check 8.1 .
5.8.3
Checking the CPU card and the HEPA filter 6.3
Check that the protective plastic on the CPU card is not covering
the HEPA filter. Be careful when the front casing is refitted to
ensure the plastic is in the intended place.
5.9 Lighting (Item 7)
5.9.1 Checking lighting 7.1
Check that both LED lights in the chamber are lit.
5 PREVENTIVE MAINTENANCE
72 (128) TECHNICAL MANUAL GETINGE WD15 CLARO
<Doc_TEC><Doc_6001396902><Rev.I><Lang_en>
