7.6 Maintenance from the side with the cover plates removed
Remove the machine's cover plates, see 7.4 Removing cover
panels.
000441

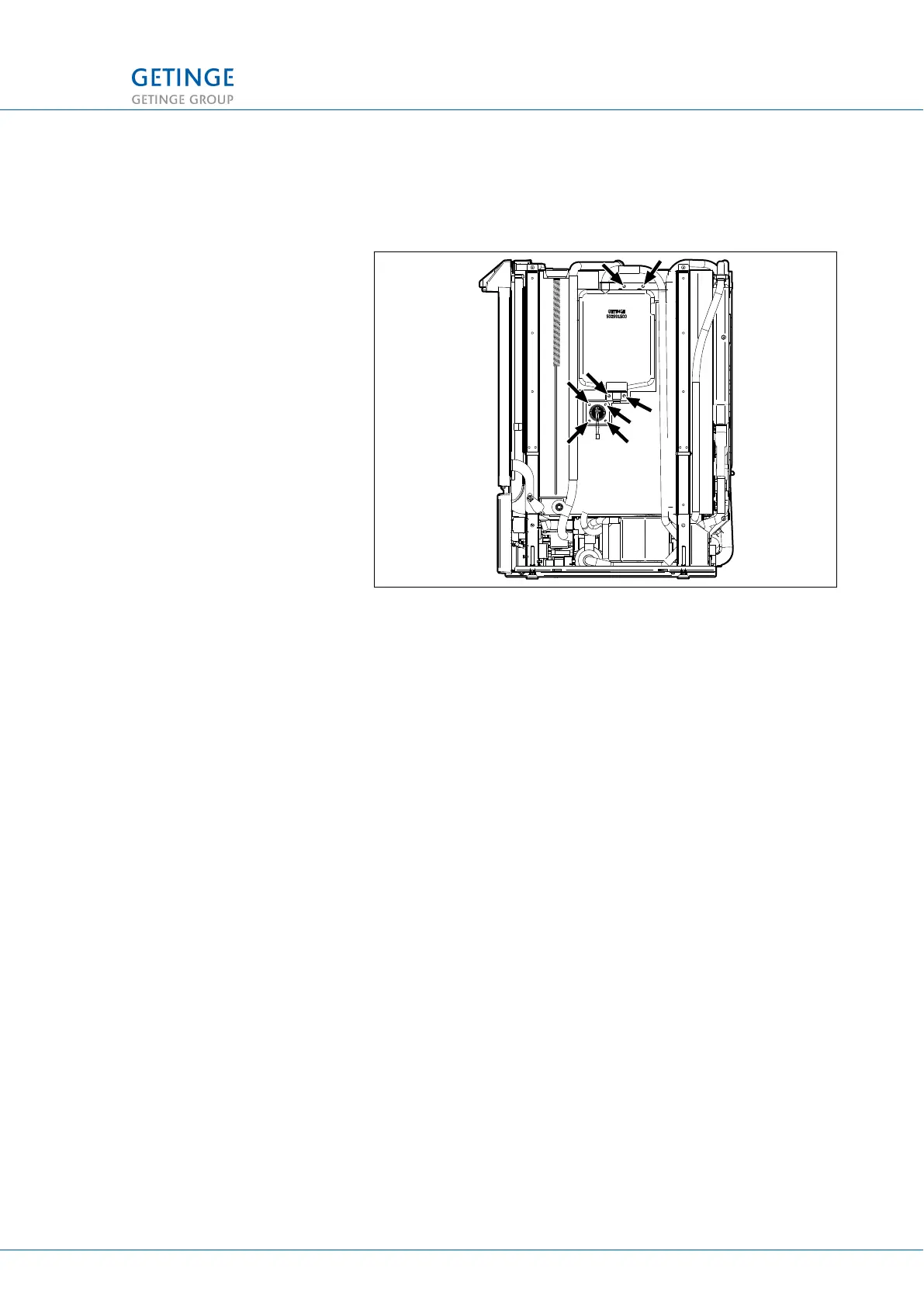

Figure 21. Remove the cover plate
7.6.1
Lamps
Removal
• Unscrew the four nuts that hold the lamp plate.
• Remove the cables and take out the plate and lamp holder.
Assembly
• Remove the lamp holder and make sure that the seal
between the chamber and that the glass is whole and that the
glass covers the chamber hole properly.
• Tighten the nuts and make sure that the seal is pressed
together.
• Be careful tightening so that the glass does not crack.
7.6.2
Regenerating tank
Removal
• Unscrew the four nuts that hold the tank.
• Remove the hose from the bracket that is above the tank.
• Take out the tank from its brackets.
Assembly
• Replace the tank and screw in the nuts for the tank again.
• Attach the hose through the retaining plate and make sure
that the hose is tightly attached in the tank hole.
