7.8.4 Salt filter
Removal:
To remove the ring around the filling hole in the chamber use the
tool (Art. no. 503195300). Then remove the three hose clamps that
hold the connecting hoses to the salt filter. Next remove the cables
that are in the salt filter.
Installing:
Replace the hoses and cables on the salt filter. Make sure that the
hose clamps are properly attached. Replace the seal between the
filter and the chamber. Push up the filter through the chamber
bottom and make sure that the traces around the edge fit in the
jacket in the bottom of the chamber. Carefully take out the ring
using the tool.
7.8.5 Spray arm bottom
Removal:
Remove the four nuts that are in the bottom of the chamber. Then
remove the hose from the pin.
Installing:
Replace the seal. Replace the hose and tighten the four nuts.
Make sure that there is no leakage.
7.9 Connecting a PC
Note: To connect a PC to the lower panel with the article
number 502883300, you need CS1000 6.01.
An RS-232 cable (art. No. 5010191-00) is needed to connect a PC
to the washer-disinfector. Proceed as follows:
1. Connect the cable between the PC and D-sub contact on the
control unit, see the illustration below.

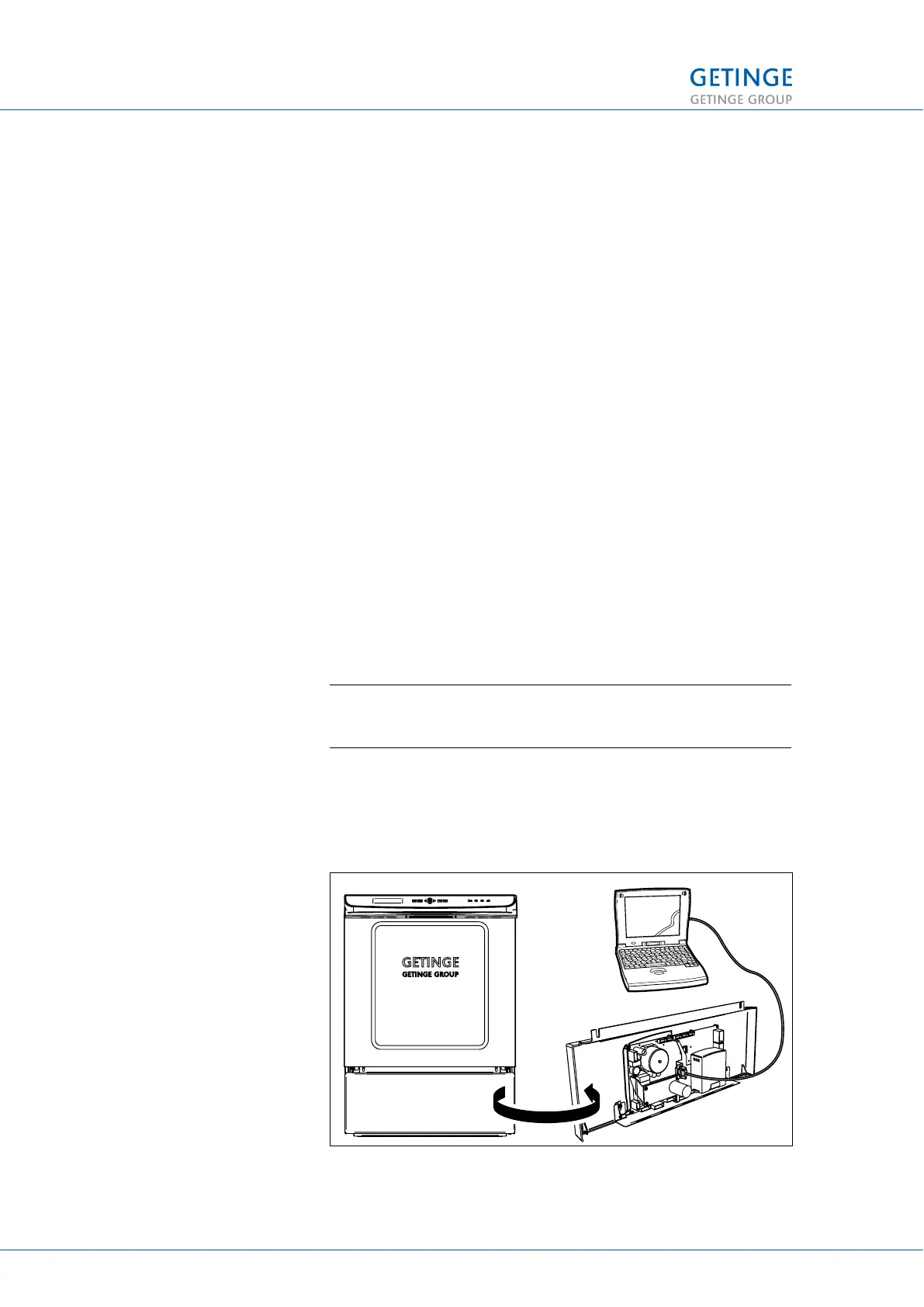

Figure 26. PC connection
7 REPAIRS AND ADJUSTMENT
92 (128) TECHNICAL MANUAL GETINGE WD15 CLARO
