Firmware Version 1.0.2.21 UCM6100 Series IP PBX User Manual Page 101 of 159

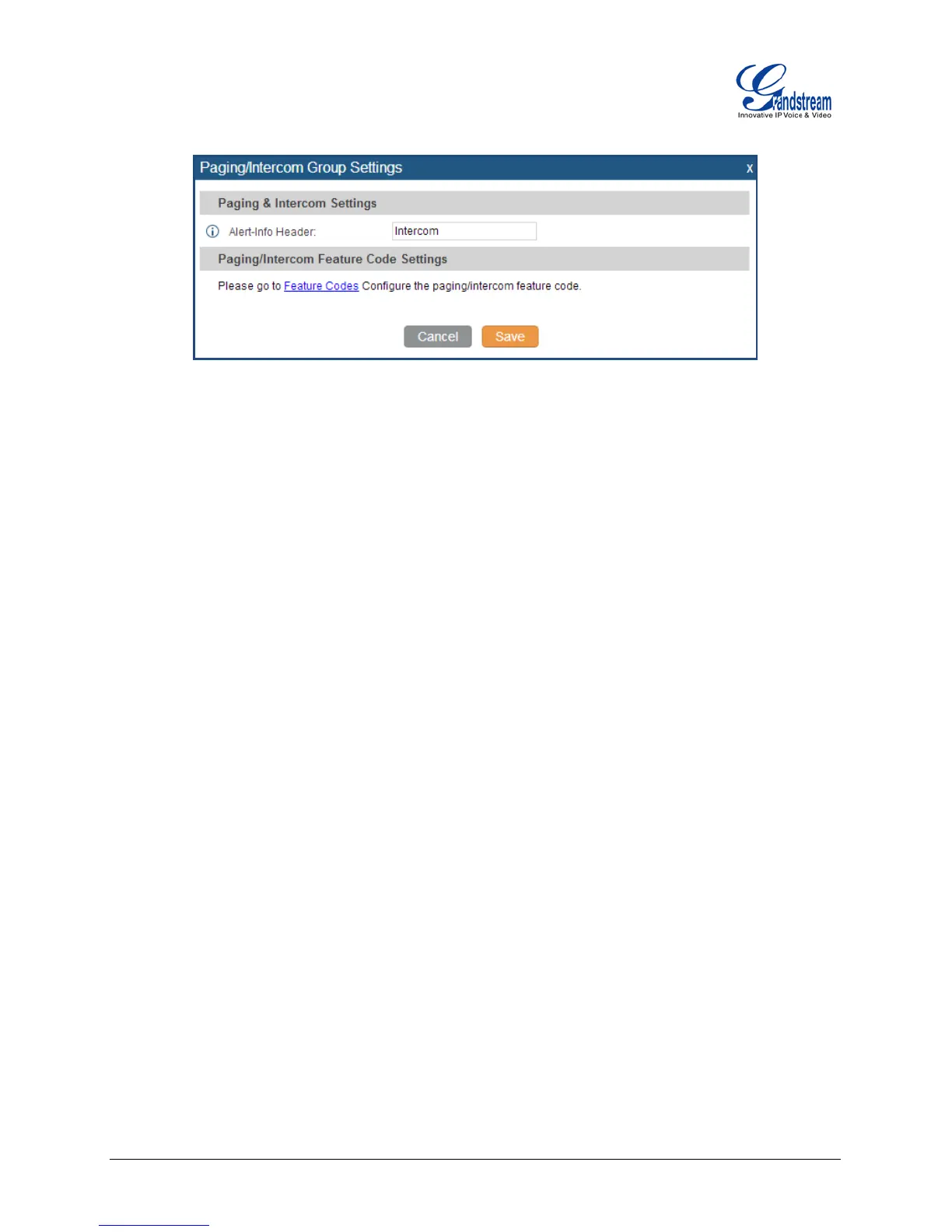

Figure 46: Page/Intercom Group Settings

x The UCM6100 has pre-configured paging/intercom feature code. By default, the Paging Prefix is *81

and the Intercom Prefix is *80. To edit page/intercom feature code, click on "Feature Codes" in the

"Paging/Intercom Group Settings" dialog. Or users could go to Web GUI->PBX->Internal

Options->Feature Codes directly.
