Firmware Version 1.0.2.21 UCM6100 Series IP PBX User Manual Page 110 of 159

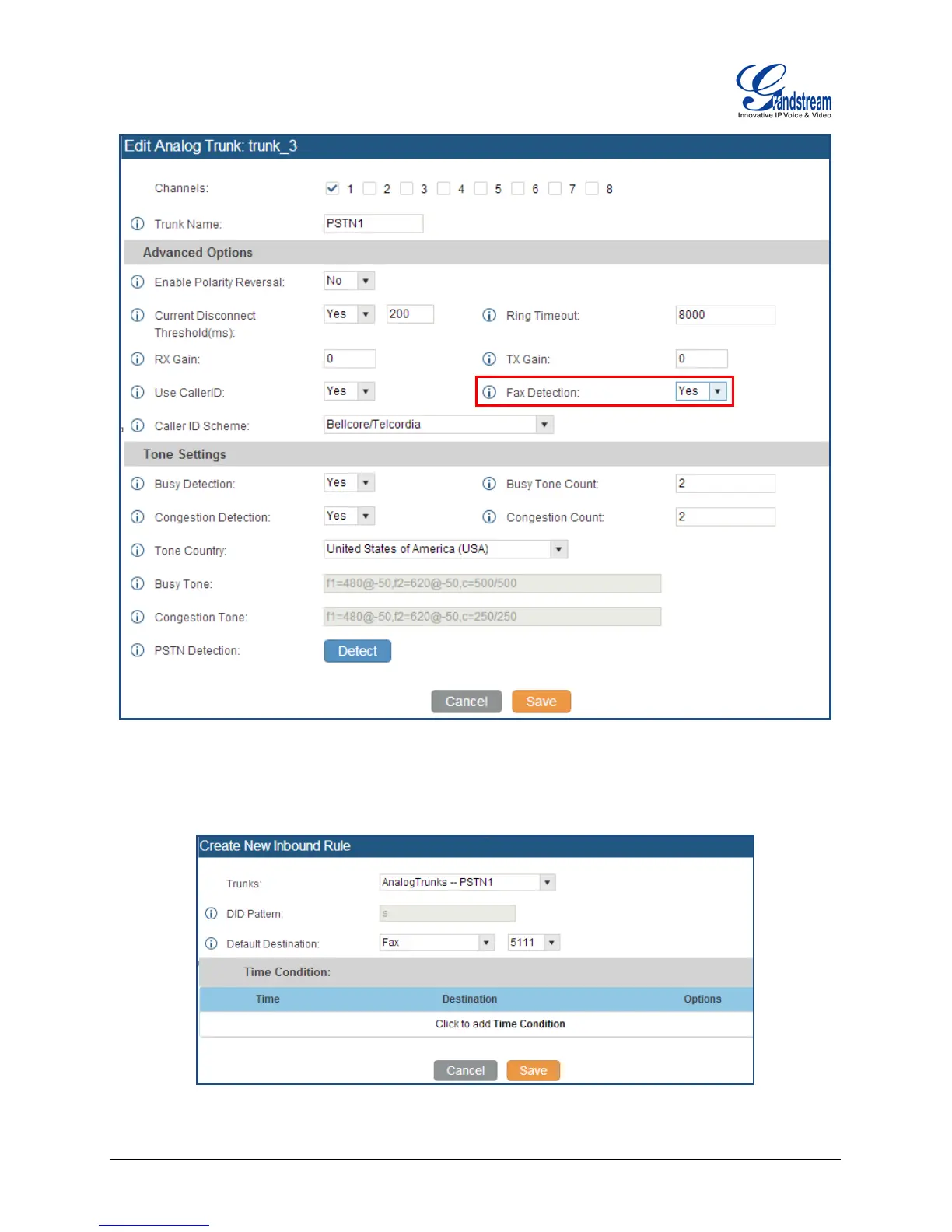

Figure 54: Enable Fax Detection In Analog Trunk

4. Go to UCM6100 web GUI->Basic/Call Routes->Inbound Routes page. Create a new inbound route

and set the default destination to the Fax extension.

Figure 55: Inbound Route To Fax Extension
