Firmware Version 1.0.2.21 UCM6100 Series IP PBX User Manual Page 65 of 159

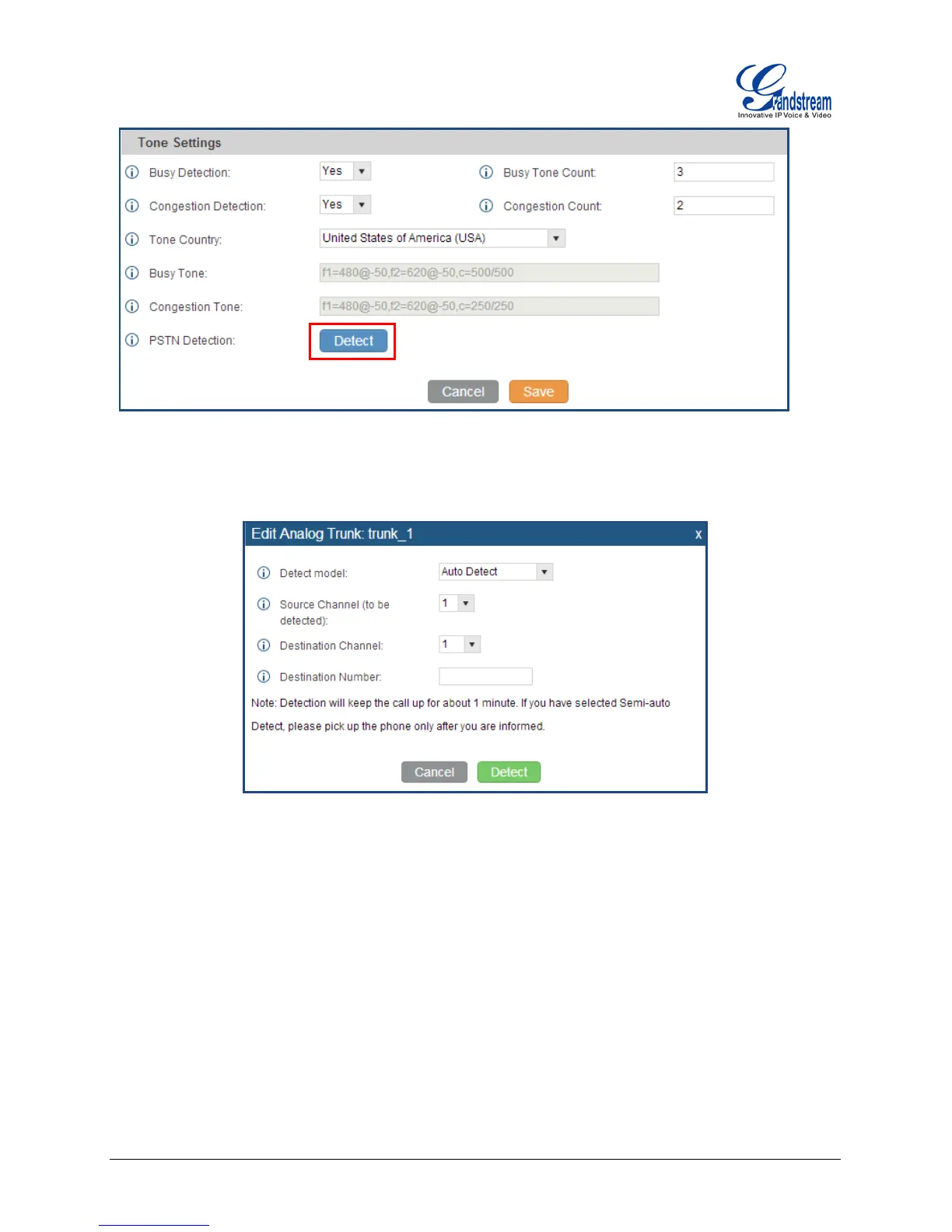

Figure 28: UCM6100 FXO Tone Settings

4. Click on "Detect" to start PSTN detection.

Figure 29: UCM6100 PSTN Detection

x If there are two FXO ports connected to PSTN lines, use the following settings for auto-detection.

Detect Model: Auto Detect.

Source Channel: The source channel to be detected.

Destination Channel: The channel to help detecting. For example, the second FXO port.

Destination Number: The number to be dialed for detecting. This number must be the actual

PSTN number for the FXO port used as the destination channel.
