Some typical modules for UCM6100 functions are as follows and users can turn on "notic" and "verb"
levels besides "error" level.
pbx: This module is related to general PBX functions.
chan_sip: This module is related to SIP calls.
chan_dahdi: This module is related to analog calls (FXO/FXS).
app_meetme: This module is related to conference bridge.
TROUBLESHOOTING
On the UCM6100, users could capture traces, ping remote host and traceroute remote host for
troubleshooting purpose under Web GUI->Maintenance->Troubleshooting.
ETHERNET CAPTURE
The captured trace can be downloaded for analysis. Also the instructions or result will be displayed in the
web GUI output result.

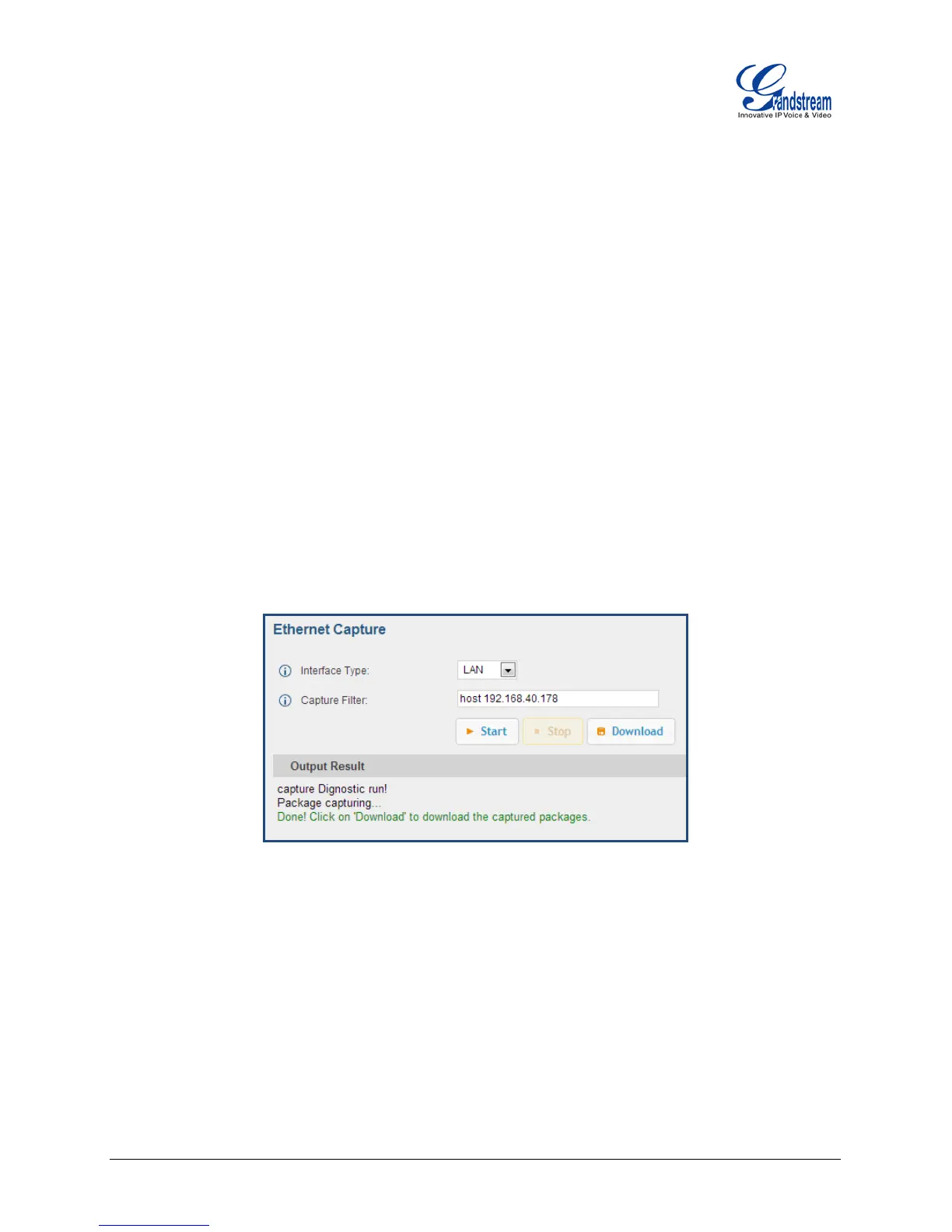

Figure 84: Ethernet Capture
The output result is in .pcap format. Therefore, users could specify the capture filter as used in general
network traffic capture tool (host, src, dst, net, protocol, port, port range) before starting capturing the
trace.
IP PING
Enter the target host in host name or IP address. Then press "Start" button. The output result will
dynamically display in the window below.
