Firmware Version 1.0.2.21 UCM6100 Series IP PBX User Manual Page 18 of 159

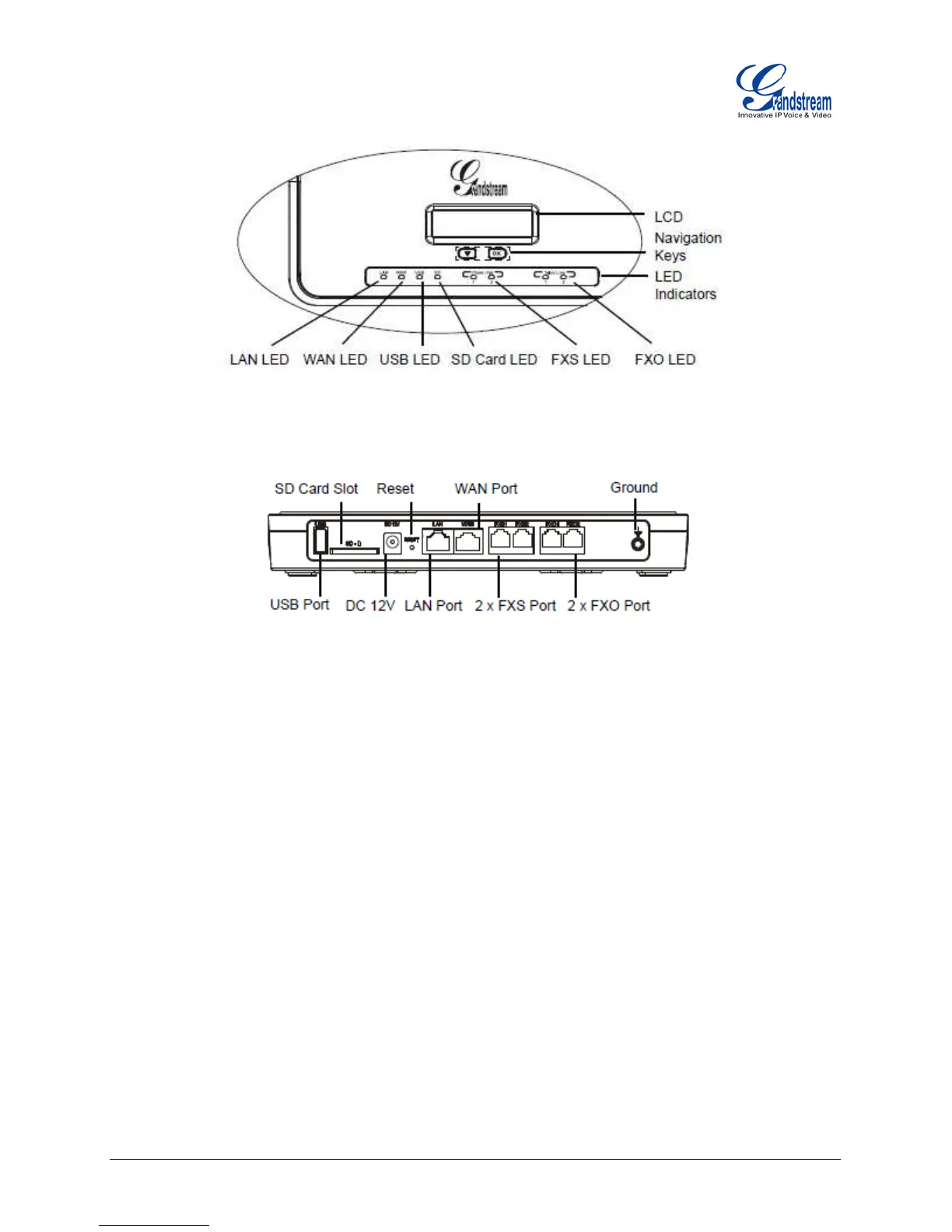

Figure 1: UCM6102 Front View
Figure 2: UCM6102 Back View
To set up the UCM6102, follow the steps below:
1. Connect one end of an RJ-45 Ethernet cable into the WAN port of the UCM6102.
2. Connect the other end of the Ethernet cable into the uplink port of an Ethernet switch/hub.
3. Connect the 12V DC power adapter into the 12V DC power jack on the back of the UCM6102. Insert
the main plug of the power adapter into a surge-protected power outlet.
4. Wait for the UCM6102 to boot up. The LCD in the front will show the device hardware information
when the boot process is done.
5. Once the UCM6102 is successfully connected to network, the LED indicator for WAN in the front will
be in solid green and the LCD shows up the IP address.
6. (Optional) Connect PSTN lines from the wall jack to the FXO ports; connect analog lines (phone and
Fax) to the FXS ports.
