Firmware Version 1.0.2.21 UCM6100 Series IP PBX User Manual Page 145 of 159

SD Card will display if connected.

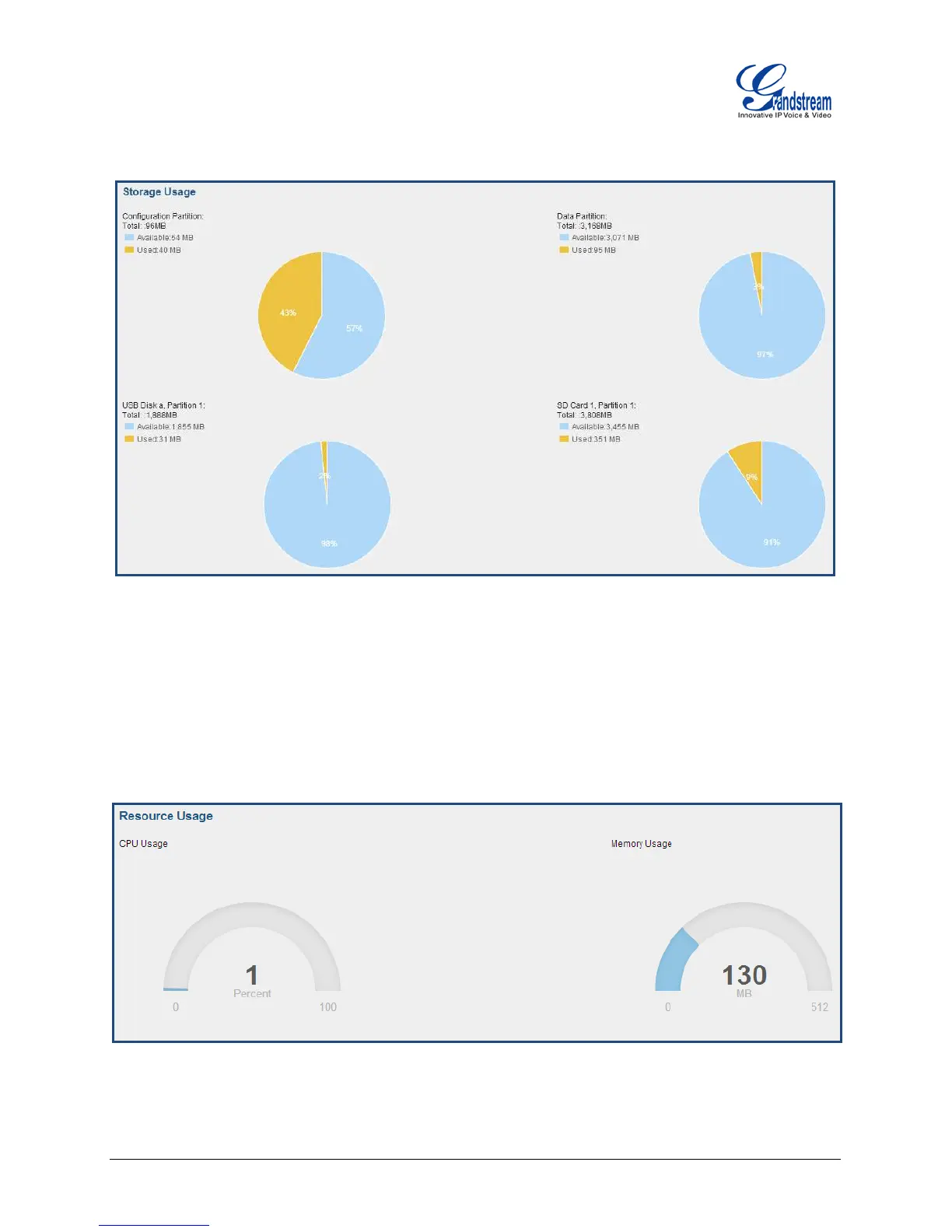

Figure 69: System Status->Storage Usage

RESOURCE USAGE

When configuring and managing the UCM6100, users could access resource usage information to estimate

the current usage and allocate the resources accordingly. Under Web GUI->Status->System

Status->Resource Usage, the current CPU usage and Memory usage are shown in the pie chart.

Figure 70: System Status->Resource Usage
