Firmware Version 1.0.2.21 UCM6100 Series IP PBX User Manual Page 20 of 159
1. Connect one end of an RJ-45 Ethernet cable into the LAN port of the UCM6108.
2. Connect the other end of the Ethernet cable into the uplink port of an Ethernet switch/hub.
3. Connect the 12V DC power adapter into the 12V DC power jack on the back of the UCM6108. Insert
the main plug of the power adapter into a surge-protected power outlet.
4. Wait for the UCM6108 to boot up. The LCD in the front will show the device hardware information
when the boot process is done.
5. Once the UCM6108 is successfully connected to network, the LED indicator for NETWORK in the front
will be in solid green and the LCD shows up the IP address.
6. (Optional) Connect PSTN lines from the wall jack to the FXO ports; connect analog lines (phone and
Fax) to the FXS ports.

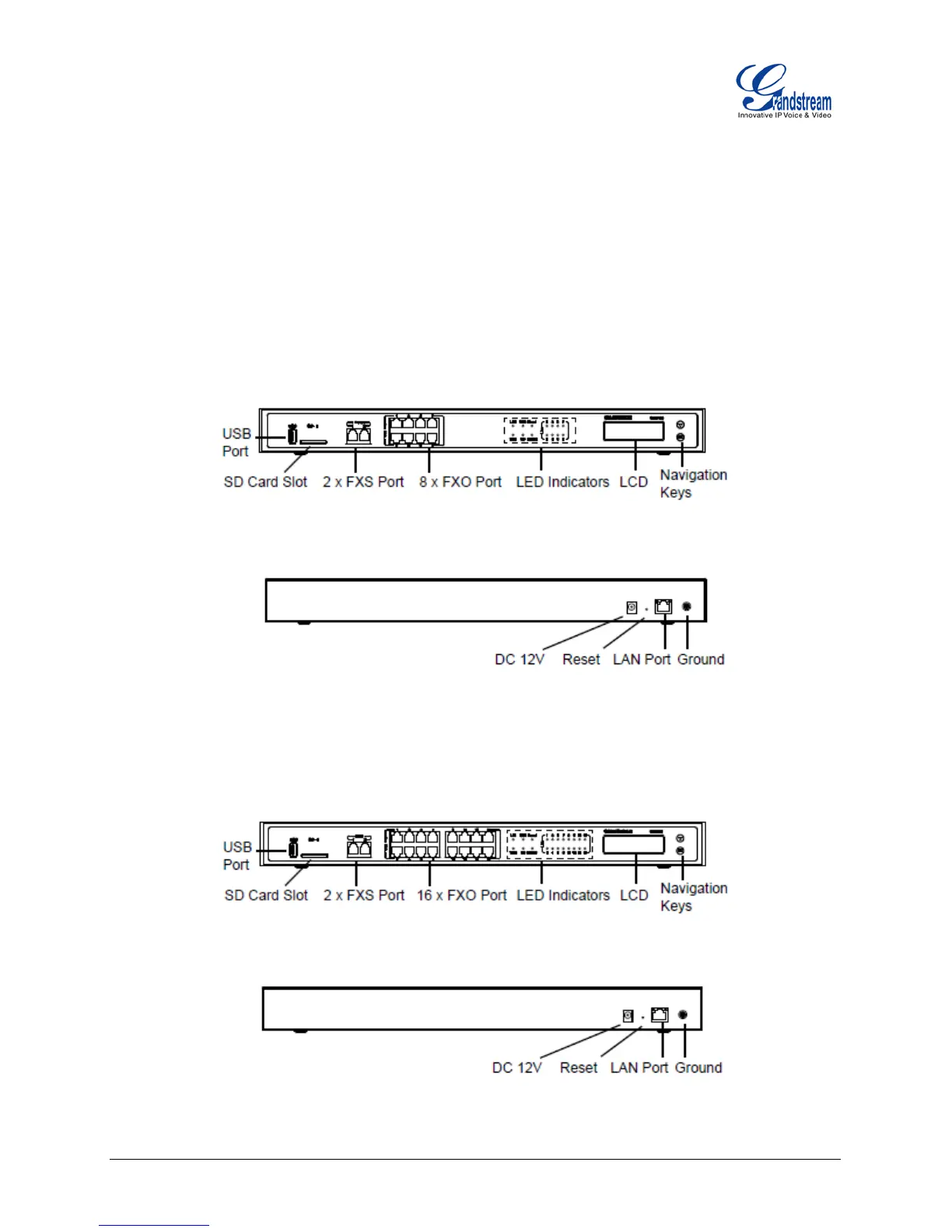

Figure 5: UCM6108 Front View
Figure 6: UCM6108 Back View
CONNECT THE UCM6116
Figure 7: UCM6116 Front View
Figure 8: UCM6116 Back View
