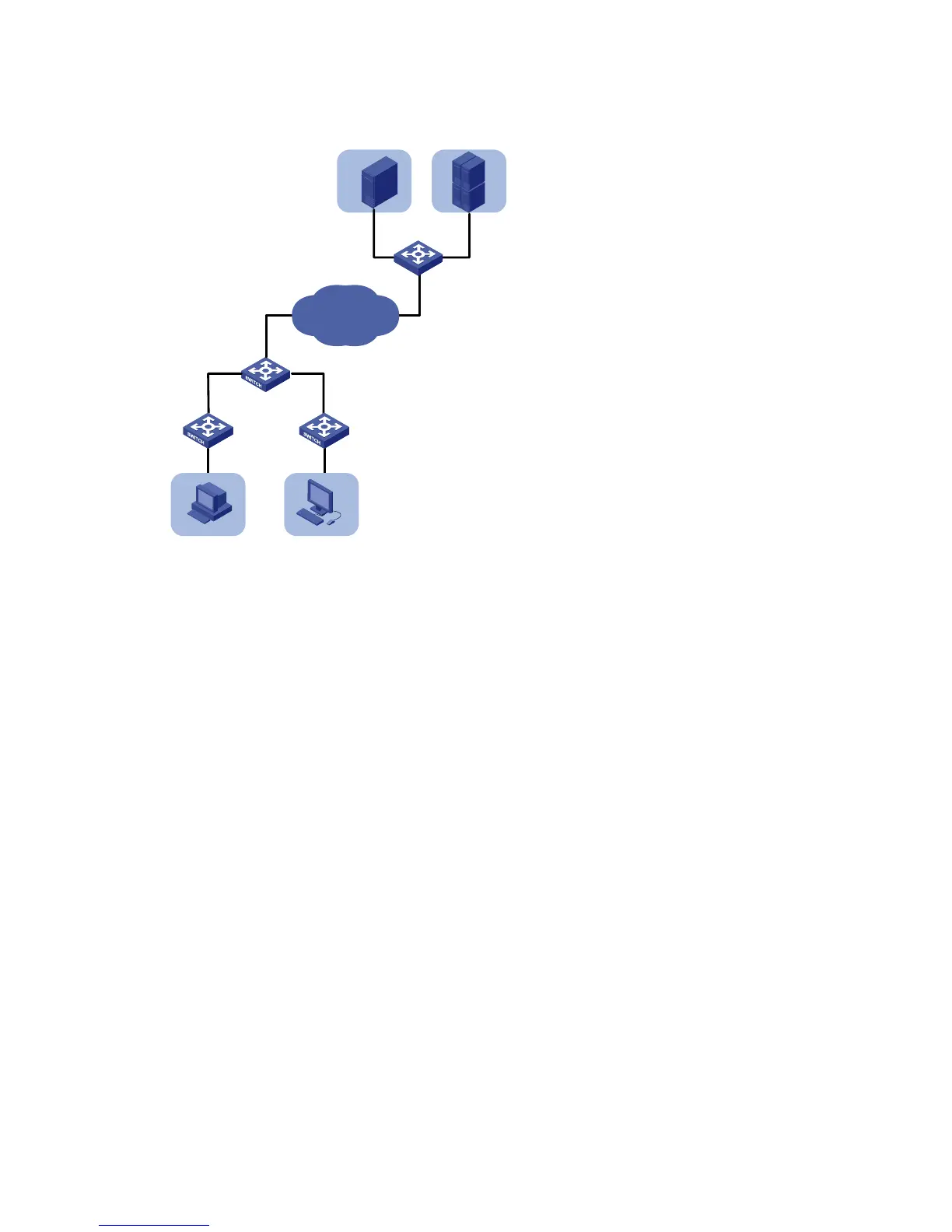

Figure 1-12 Network diagram for VLAN mapping configuration
GE1/0/11 GE1/0/12
GE1/0/10
VLAN100 VLAN200
VLAN100 VLAN200
SwitchA
SwitchB
GE1/0/15 GE1/0/16
GE1/0/17
Public Network
VLAN500/600
Configuration procedure
# Create CVLANs VLAN 100 and VLAN 200 and SVLANs VLAN 500 and VLAN 600 on
Switch A.
<SwitchA> system-view
[SwitchA] vlan 100
[SwitchA-vlan100] quit
[SwitchA] vlan 200
[SwitchA-vlan200] quit
[SwitchA] vlan 500
[SwitchA-vlan500] quit
[SwitchA] vlan 600
[SwitchA-vlan600] quit
# Configure GigabitEthernet 1/0/11 of Switch A as a trunk port and configure its default
VLAN as VLAN 100. Assign GigabitEthernet 1/0/11 to VLAN 100 and VLAN 500. Configure
GigabitEthernet 1/0/12 of Switch A as a trunk port and configure its default VLAN as VLAN
200. Assign GigabitEthernet 1/0/12 to VLAN 200 and VLAN 600.
[SwitchA] interface GigabitEthernet 1/0/11
[SwitchA-GigabitEthernet1/0/11] port link-type trunk
[SwitchA-GigabitEthernet1/0/11] port trunk pvid vlan 100
[SwitchA-GigabitEthernet1/0/11] port trunk permit vlan 100 500
[SwitchA-GigabitEthernet1/0/11] quit
