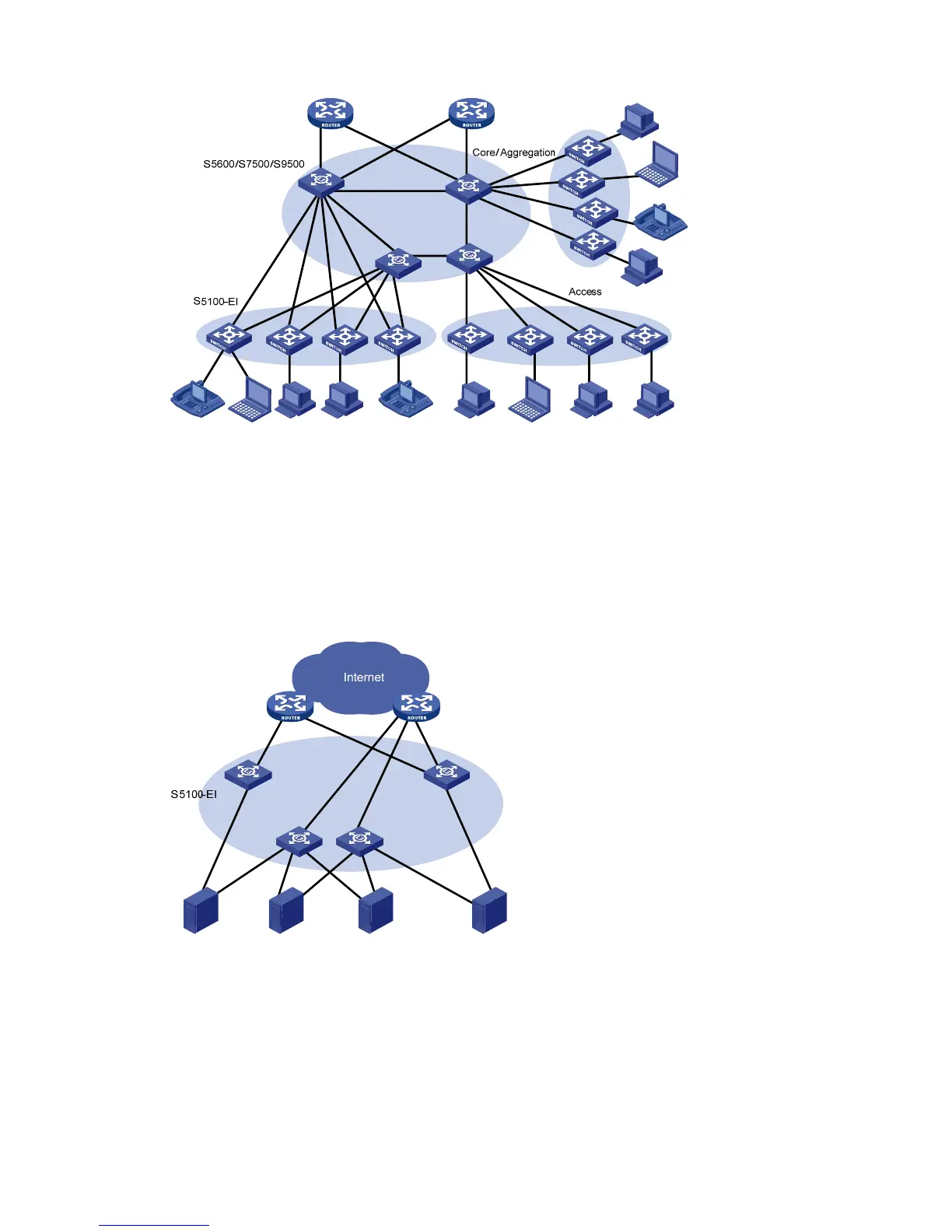

Figure 4-2 Application of S5100-EI series in the access layer
Data Center Access
In the networking of a data center, S5100-EI series are deployed on the core network to provide
10GE/GE access core network functions. The server cluster can be connected to the core network at
the Gigabit Ethernet rate through S5100-EI series switches.
Figure 4-3 Application of S5100-EI series in data center networking
