H3C S5100-SI

1-10
To do … Use the command … Remarks
system-view
Reset DLDP state for all the
ports shut down by DLDP
dldp reset
interface interface-type
interface-number
Reset the DLDP state for a port
shut down by DLDP
dldp reset
Select either of the two.
Displaying and Maintaining DLDP
To do … Use the command … Remarks
Display the DLDP configuration
of a unit or a port
display dldp { unit-id |
interface-type interface-number }
Available in any view.
DLDP Configuration Example
Network requirements
As shown in Figure 1-3,
z Switch A and Switch B are connected through two pairs of fibers. Both of them support DLDP. All
the ports involved operate in mandatory full duplex mode, with their rates all being 1,000 Mbps.
z Suppose the fibers between Switch A and Switch B are cross-connected. DLDP disconnects the
unidirectional links after detecting them.
z After the fibers are connected correctly, the ports shut down by DLDP are restored.
Network diagram

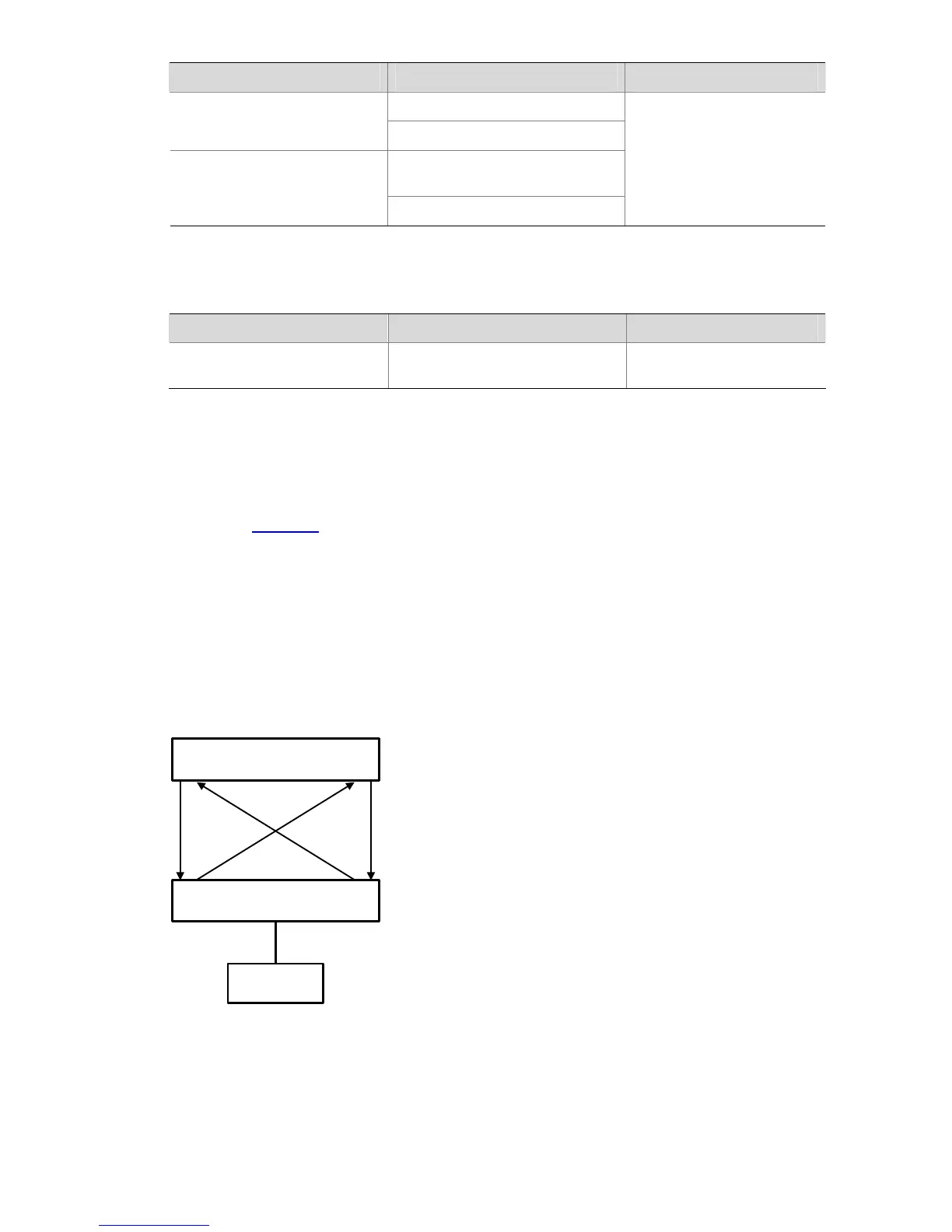

Figure 1-3 Network diagram for DLDP configuration
Switch A
GE1/0/50
GE1/0/51
Switch B
GE1/0/50 GE1/0/51
PC
Configuration procedure
1) Configure Switch A
# Configure the ports to work in mandatory full duplex mode at a rate of 1000 Mbps.
<SwitchA> system-view
