H3C S5100-SI

2-9
Displaying Protocol-Based VLAN Configuration
To do... Use the command... Remarks
Display the information about the
protocol-based VLAN
display vlan [ vlan-id [ to vlan-id ] | all |
dynamic | static]
Display the protocol information and
protocol indexes configured on the
specified VLAN
display protocol-vlan vlan { vlan-id [ to
vlan-id ] | all }
Display the protocol information and
protocol indexes configured on the
specified port
display protocol-vlan interface
{ interface-type interface-number [ to
interface-type interface-number ] | all }
Available in
any view
Protocol-Based VLAN Configuration Example
Network requirements
z As shown in Figure 2-2, Workroom connects to the LAN through port GigabitEthernet1/0/10 on the
S5100-SI/EI switch.
z IP network and AppleTalk network workstations (hosts) coexist in the Workroom.
z The S5100-SI/EI switch connects to VLAN 100 (using IP network) through GigabitEthernet1/0/11
and to VLAN 200 (using AppleTalk network) through GigabitEthernet1/0/12.
z Configure the switch to automatically assign the IP and AppleTalk packets to proper VLANs for
transmission, so as to ensure the normal communication between the workstations and servers.
Network diagram

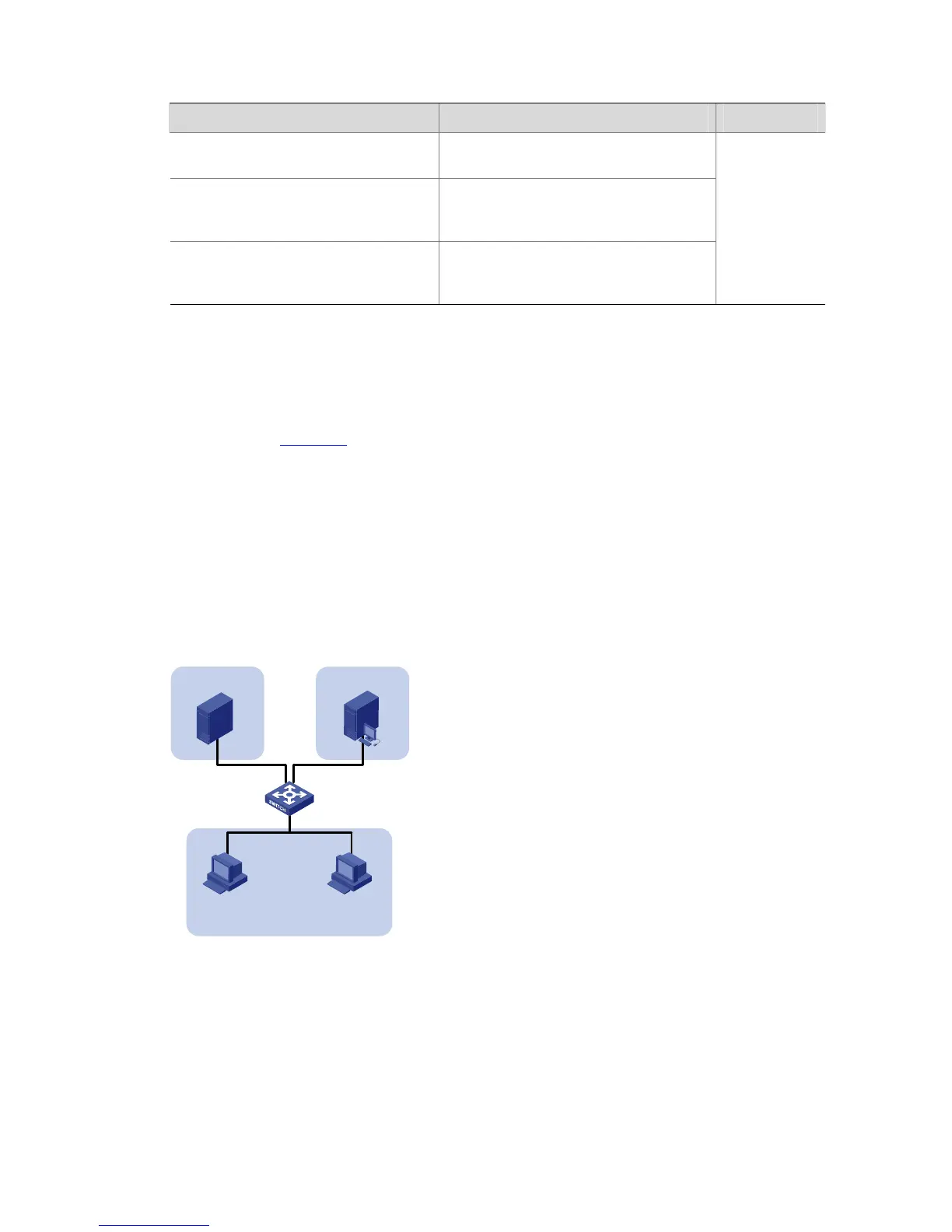

Figure 2-2 Network diagram for protocol-based VLAN configuration
IP Host
GE1/0/10
GE1/0/11 GE1/0/12
Workroom
AppleTalk Host
IP Server AppleTalk Server
Configuration procedure
# Create VLAN 100 and VLAN 200, and add GigabitEthernet1/0/11 and GigabitEthernet1/0/12 to VLAN
100 and VLAN 200 respectively.
<Sysname> system-view
[Sysname] vlan 100
[Sysname-vlan100] port GigabitEthernet 1/0/11
[Sysname-vlan100] quit
