Network diagram

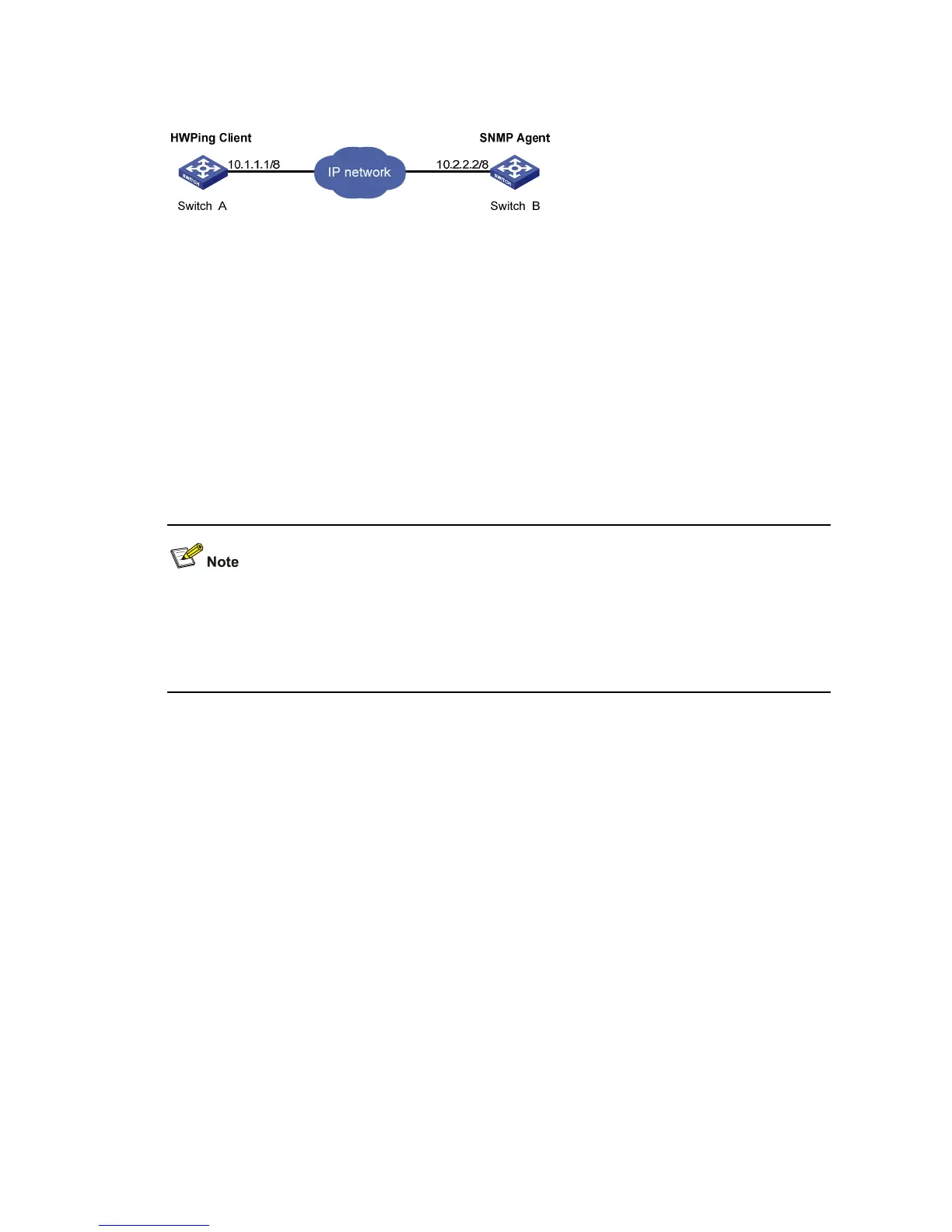

Figure 1-7 Network diagram for the SNMP test
Configuration procedure
z Configure SNMP Agent (Switch B):
# Start SNMP agent and set SNMP version to V2C, read-only community name to public, and
read-write community name to private.
<Sysname> system-view
[Sysname] snmp-agent
[Sysname] snmp-agent sys-info version v2c
[Sysname] snmp-agent community read public
[Sysname] snmp-agent community write private
z The SNMP network management function must be enabled on SNMP agent before it can receive
response packets.
z The SNMPv2c version is used as reference in this example. This configuration may differ if the
system uses any other version of SNMP. For details, see SNMP – RMON Operation Manual.
z Configure HWPing Client (Switch A):
# Enable the HWPing client.
<Sysname> system-view
[Sysname] hwping-agent enable
# Create a HWPing test group, setting the administrator name to administrator and test tag to snmp.
[Sysname] Hwping administrator snmp
# Configure the test type as snmp.
[Sysname-hwping-administrator-snmp] test-type snmpquery
# Configure the destination IP address as 10.2.2.2.
[Sysname-hwping-administrator-snmp] destination-ip 10.2.2.2
# Configure to make 10 probes per test.
[Sysname-hwping-administrator-snmp] count 10
# Set the probe timeout time to 30 seconds.
[Sysname-hwping-administrator-snmp] timeout 30
# Start the test.
