Network diagram

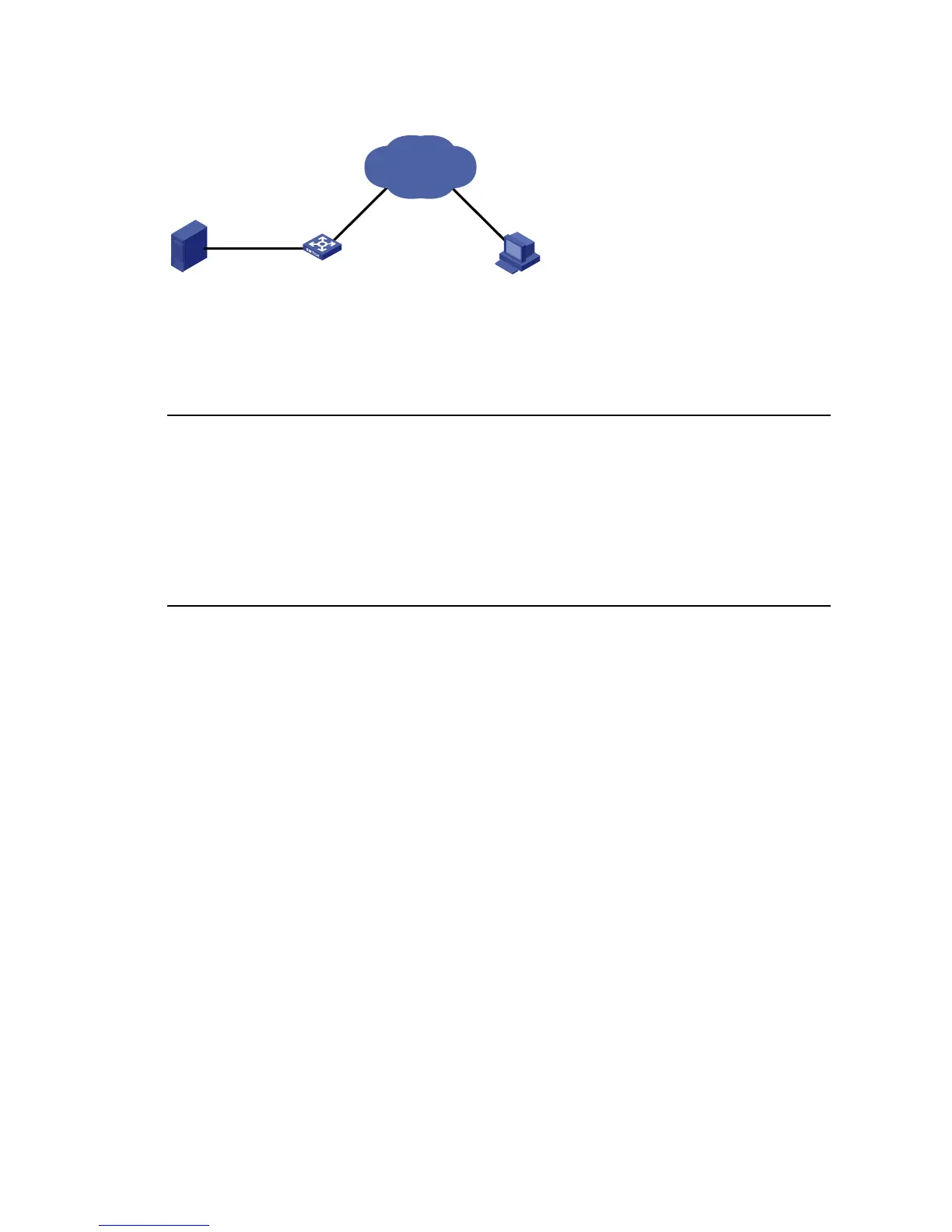

Figure 1-3 Network diagram for dynamic DNS configuration
2. 1. 1. 2/ 1 6
2. 1. 1. 1
DNS server
Switch
DNS client
1. 1.1 / 1 6
host.com
IP network
Host
/16
1.
3. 1.1 .1/ 1 6
Configuration procedure
 Note:
Before doing the following configuration, make sure that:
z The routes between the DNS server, Switch, and Host are reachable.
z Necessary configurations are done on the devices. For the IP addresses of the interfaces, see the
figure above.
z There is a mapping between domain name host and IP address 3.1.1.1/16 on the DNS server.
z The DNS server works normally.
# Enable dynamic domain name resolution.
<Sysname> system-view
[Sysname] dns resolve
# Configure the IP address 2.1.1.2 for the DNS server.
[Sysname] dns server 2.1.1.2
# Configure com as the DNS suffix
[Sysname] dns domain com
Execute the ping host command on Switch to verify that the communication between Switch and Host
is normal and that the corresponding IP address is 3.1.1.1.
[Sysname] ping host
Trying DNS server (2.1.1.2)
PING host.com (3.1.1.1): 56 data bytes, press CTRL_C to break
Reply from 3.1.1.1: bytes=56 Sequence=1 ttl=125 time=4 ms
Reply from 3.1.1.1: bytes=56 Sequence=2 ttl=125 time=4 ms
Reply from 3.1.1.1: bytes=56 Sequence=3 ttl=125 time=4 ms
Reply from 3.1.1.1: bytes=56 Sequence=4 ttl=125 time=4 ms
Reply from 3.1.1.1: bytes=56 Sequence=5 ttl=125 time=5 ms
--- host.com ping statistics ---
5 packet(s) transmitted
5 packet(s) received
