Saw-Spindle Moulder
B3 / B3 e-classic
Standard
B3 winner
Option
B3 winner
Standard
B3 winner
comfort
Option
B3 winner
comfort
Machine
Sliding table length A
1250 mm 2000 mm 2000 mm -
Sliding table travel distance A1
770 mm 1520 mm 1520 mm -
Sliding table travel distance A2
907 mm 1698 mm 1698 mm -
total length A1 + B + A2
2708 mm 4250 mm 4250 mm -
Length: Machine table + bar B
1032 mm 1032 mm
Overall width C1
1034 mm 1474 mm 1034 mm 1474 mm
Overall width C2
892 (mm 1743 mm - 892 (1743) mm
Overall width (Option) C3
- 1364 (2140) mm 1364 mm 2140 mm
Overall width C4
- 1066 mm 1066 mm
Total height / Working height (approx.) 1555 / 888 mm 1555 / 888 mm
Rip capacity D
800 mm 1250 mm 800 mm 1250 mm
Width of sliding table E
290 mm 290 mm
Net weight *) 330 kg 330 kg
Machine including packaging
Length x Width **) 1470 x 1160 mm 2100 x 1200 mm
Height 1200 mm 1200 mm
Weight (approx.)* 400 kg 400 kg
*) with average-sized equipment
4.1.2 B3 winner (comfort)

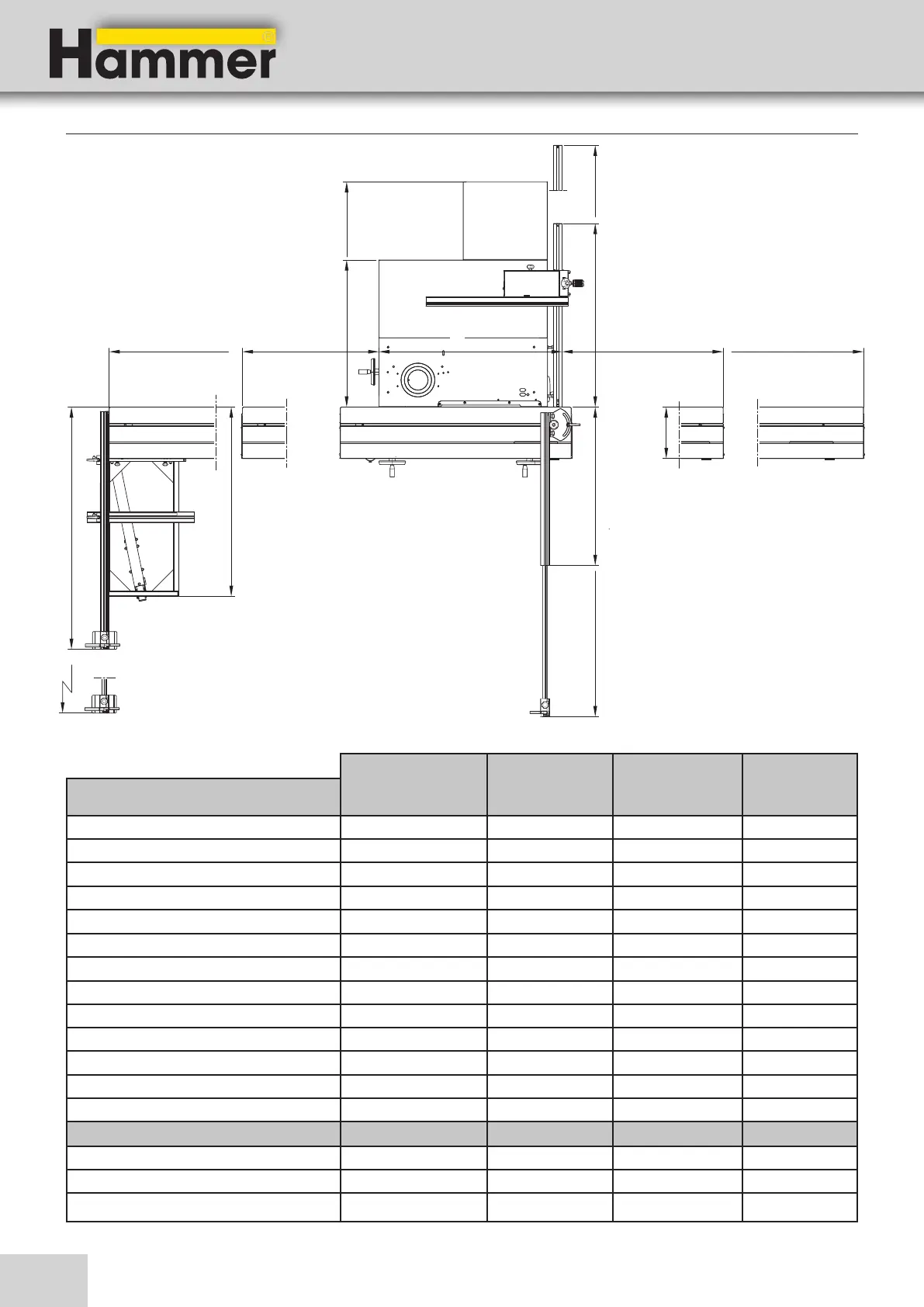

Fig. 4-2: Dimensions B3 Winner (Comfort)
Specifications
