Saw-Spindle Moulder
B3 / B3 e-classic
Note:
The moulding tool only operates if the break switch, inside the machine frame, is not actuated!
The sliding cover and spindle door are closed and the safety system is in the centre position
Making adjustments and preparations

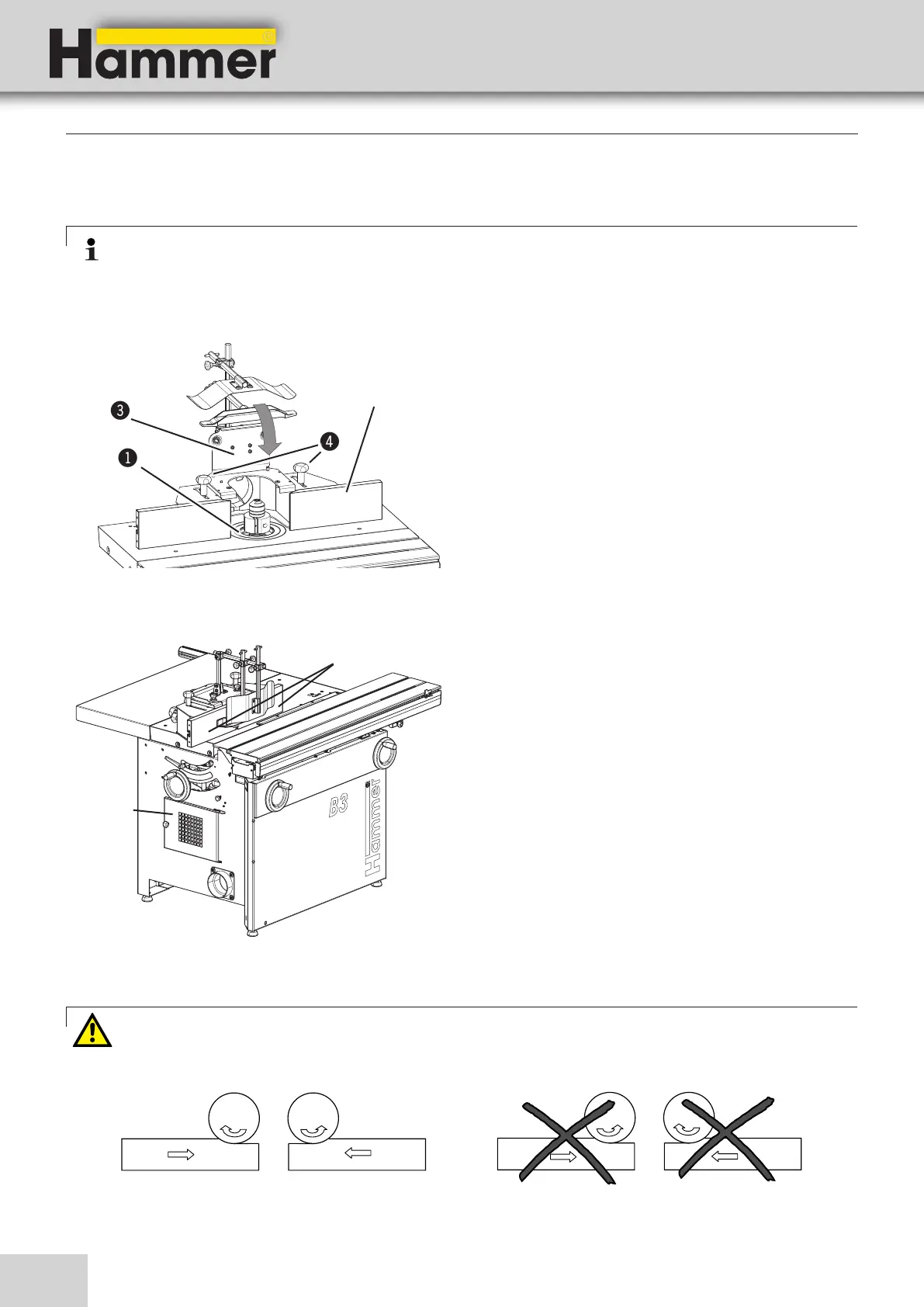

9.7.3 Prepare the machine to operate
Fig. 9-16: Prepare the machine to operate
Fig. 9-15: Prepare the machine to operate
1. Close as much of the table opening with backing
rings as possible.
2. Adjust the guides according to the tooling.
3. Tilt the spindle moulder fence lid and the mounted
spindle moulder guard to the front.
4. Screw the spindle moulder fence lid on tightly with
the thumb screws.
5. Determining/adjusting the speed
6. Close the door
7. Switch machine on
!Backing rings
"Spindle fence plates
#Spindle moulde fence cover
$Thumb screws
%Doors
Warning! Risk of injury!
Pay attention to the correct rotational direction of the spindle moulder tool!
The workpiece to be machined, should only be moulded against the rotation direction!
Fig. 9-18: Incorrect direction of rotation Fig. 9-17: Note the direction of rotation!
