Saw-Spindle Moulder
B3 / B3 e-classic
9 Making adjustments and preparations Spindle moulder unit
Making adjustments and preparations
9.1 Safety instructions
Warning! Risk of injury! Improper adjustment and setup work can lead to serious physical injury or
material damage. For this reason, this work may only be carried out by authorised, trained personnel who
are familiar with how to operate the machine and in strict observance of all safety instructions.
• Before beginning any maintenance work on the
machine, switch it off and secure it against acciden-
tally being switched on again.
• Before commencing any work with the machine,
inspect it to ensure that it is complete and in
technically good condition.
• Ensure that there is sufficient space to work around
the machine.
• Keep the work area orderly and clean. Components
and tools that are not put in their correct place or put
away may be the cause of accidents!
• Install the safety equipment according to the
instructions and check that it functions properly.
9.2 Sliding table lock

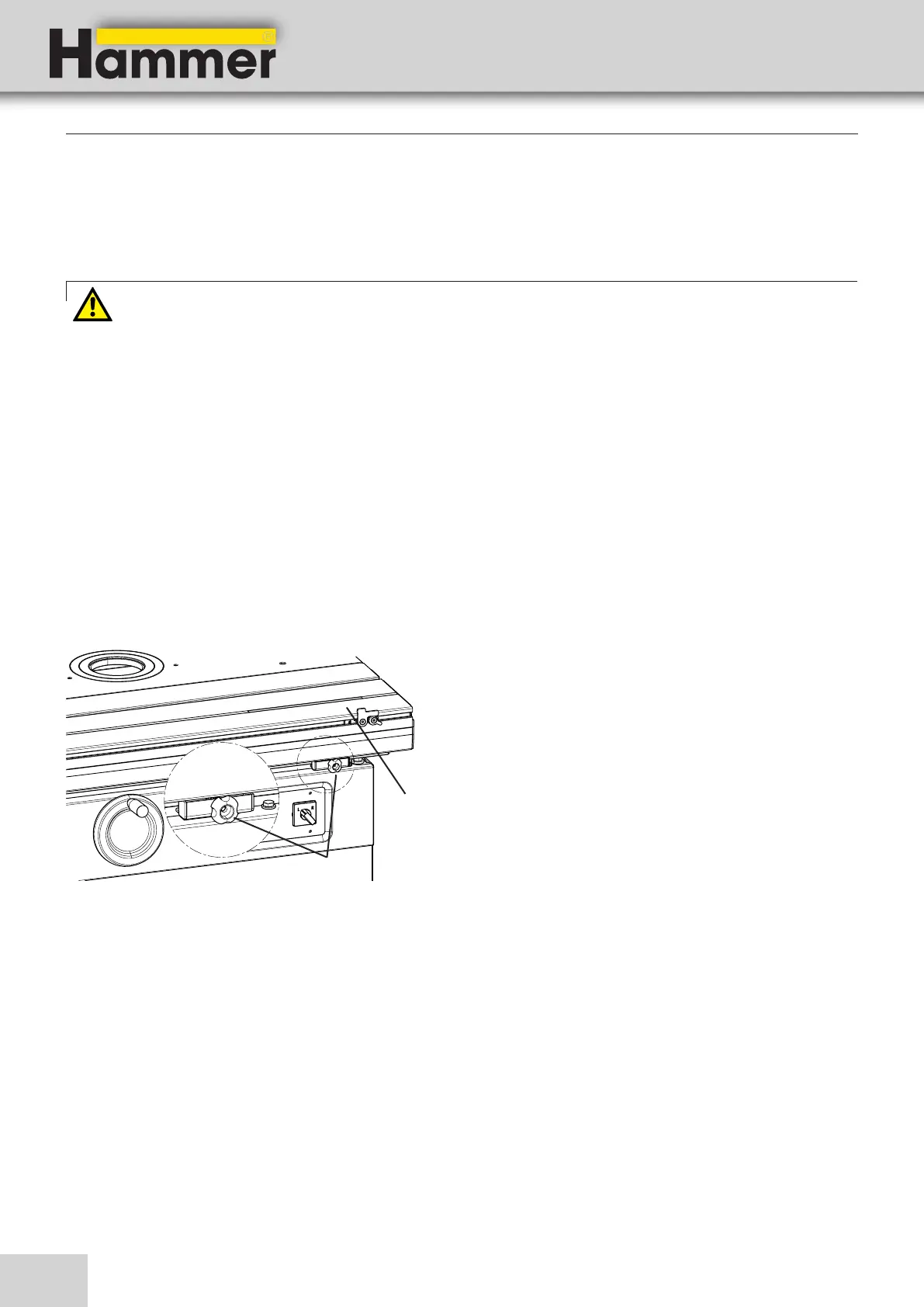

Fig. 9-1: Sliding table locking system
The sliding table can be locked into the centre position.
1. Rotate the thumb screw by 90° and push in.
2. Move the sliding table slowly into the locked positi-
on, until it engages.
3. To unlock, pull out the thumb screw and rotate 90°
anti-clockwise.
!Thumb screw
"Sliding table
