Hammer B3 - 5.5 Operation and Display Elements

29
#
!
"
BN
BM
$
$
%
%
&
/
(
)
BL
!
BO
Saw-Spindle Moulder
B3 / B3 e-classic
5.5 Operation and display elements

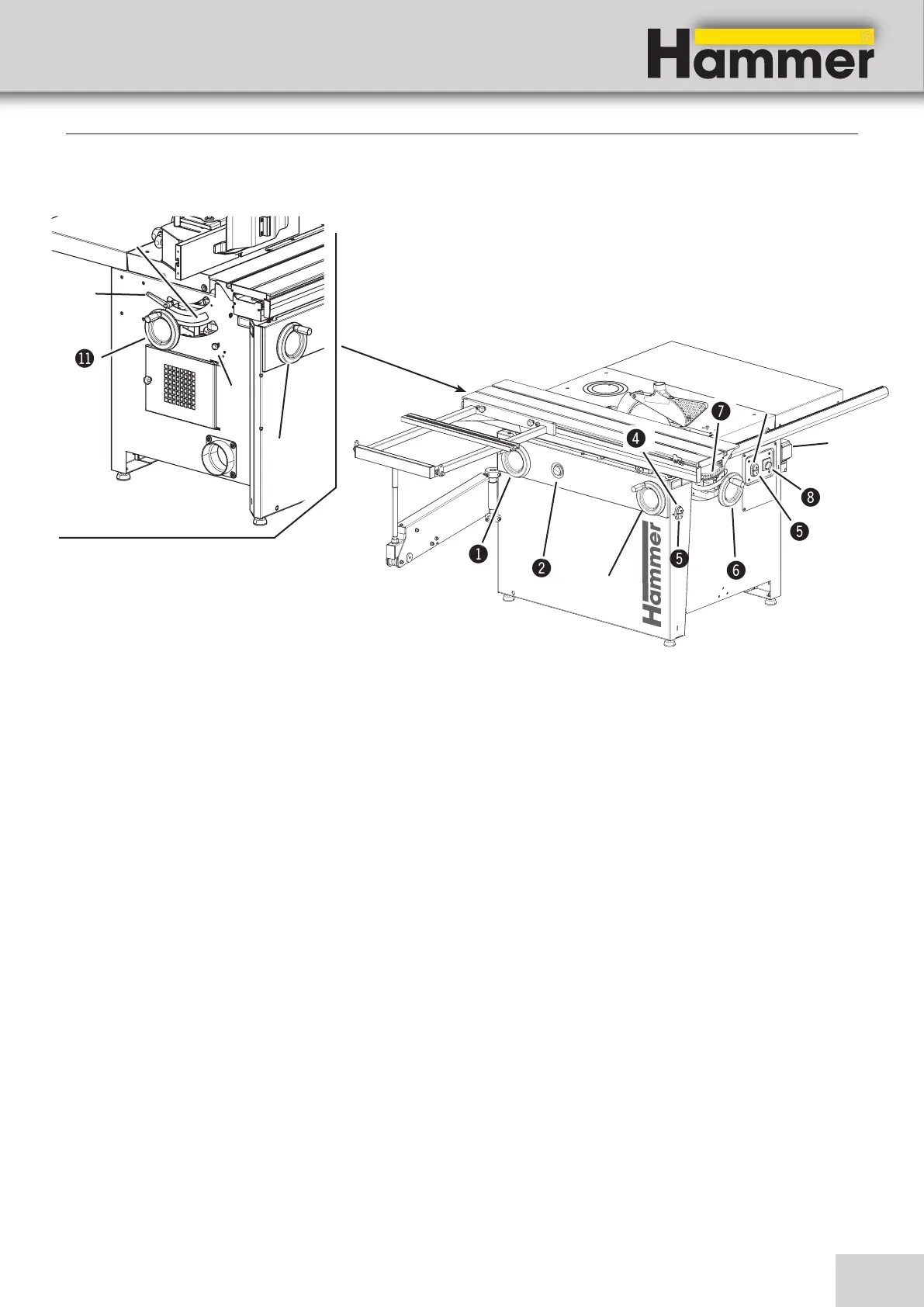

Fig. 5-19: Operation and display elements
!Handwheel - Spindle moulder angle adjustment
"EMERGENCY STOP button (if available)
#Handwheel - Circular saw angle adjustment
$Red push button
• machine OFF
• Emergency-stop
%Green push button - spindle moulder unit ON
&Handwheel - Circular saw angle adjustment
/Scale - Circular saw angle specification
(Mode switch - Operating modes
• Sawing
• Moulding (Anti-clockwise rotating spindle moulder)
• Moulding (Clockwise rotating spindle moulder)
)Mains switch (if available)
BLClamping lever - Spindle moulder angle adjustment
BMHandwheel - Spindle moulder height adjustment
BNScale - moulding angle specification
BOLock system - sliding cover
Setting up the machine
